Prevost Metal Blow Gun Nozzles (OSHA, Bent, Straight)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
27202 MB13
|
| Dimensions | |
 Weight |
0.05 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
Prevost metal blow gun nozzles come in standard, limited-flow, OSHA venturi, straight, bent and rubber-tip styles with 1/4 inch FNPT threads, so you can match noise level, blowing force and reach to the job. Pick your style and length from the options above.

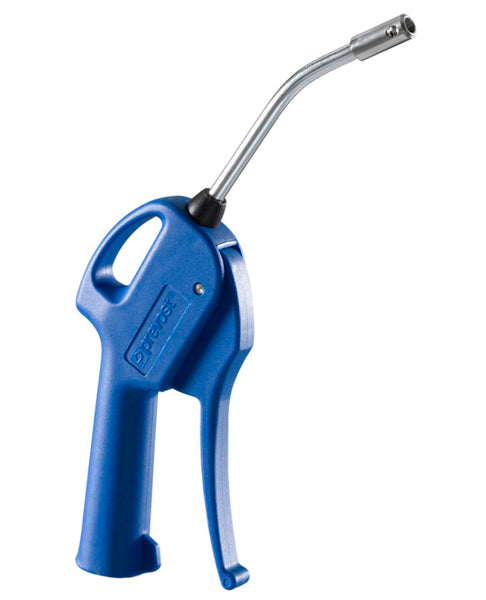

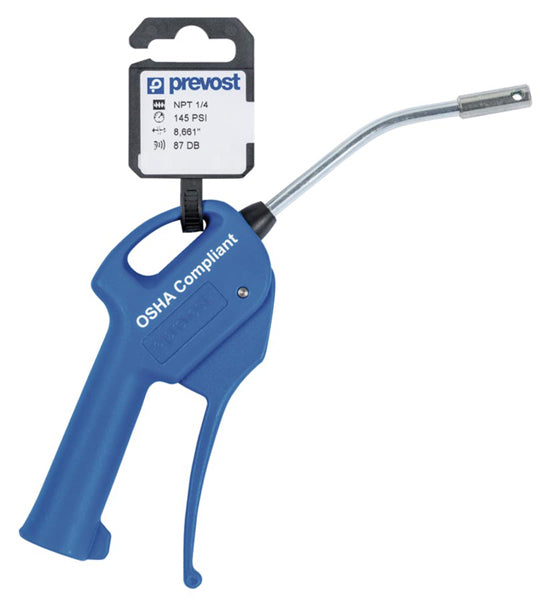

OSHA venturi metal nozzle blow gun
| NPT female thread | Air consumption (at 87 psi, cfm) | Blowing force (at 87 psi, Ozf) | Dynamic pressure (at 87 psi at 4 in, psi) | Reference |
|---|---|---|---|---|
| 1/4 in FNPT | 6.6 | 7.5 | 32 | 27202 MTLOSHA |

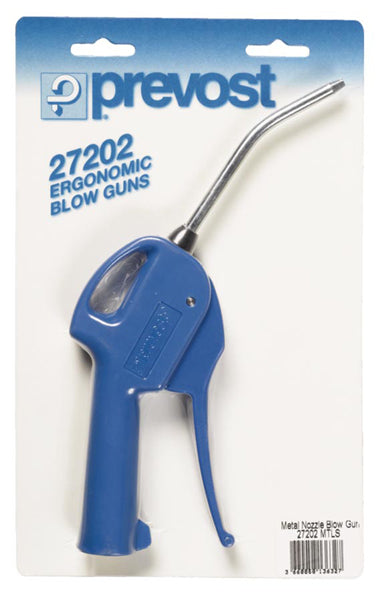

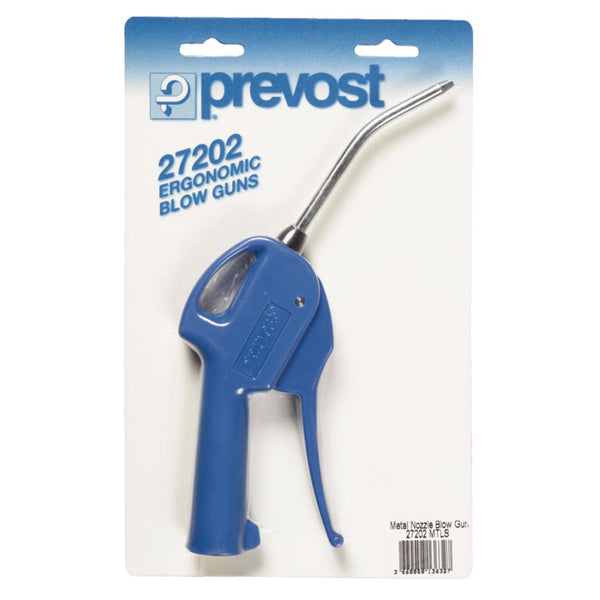

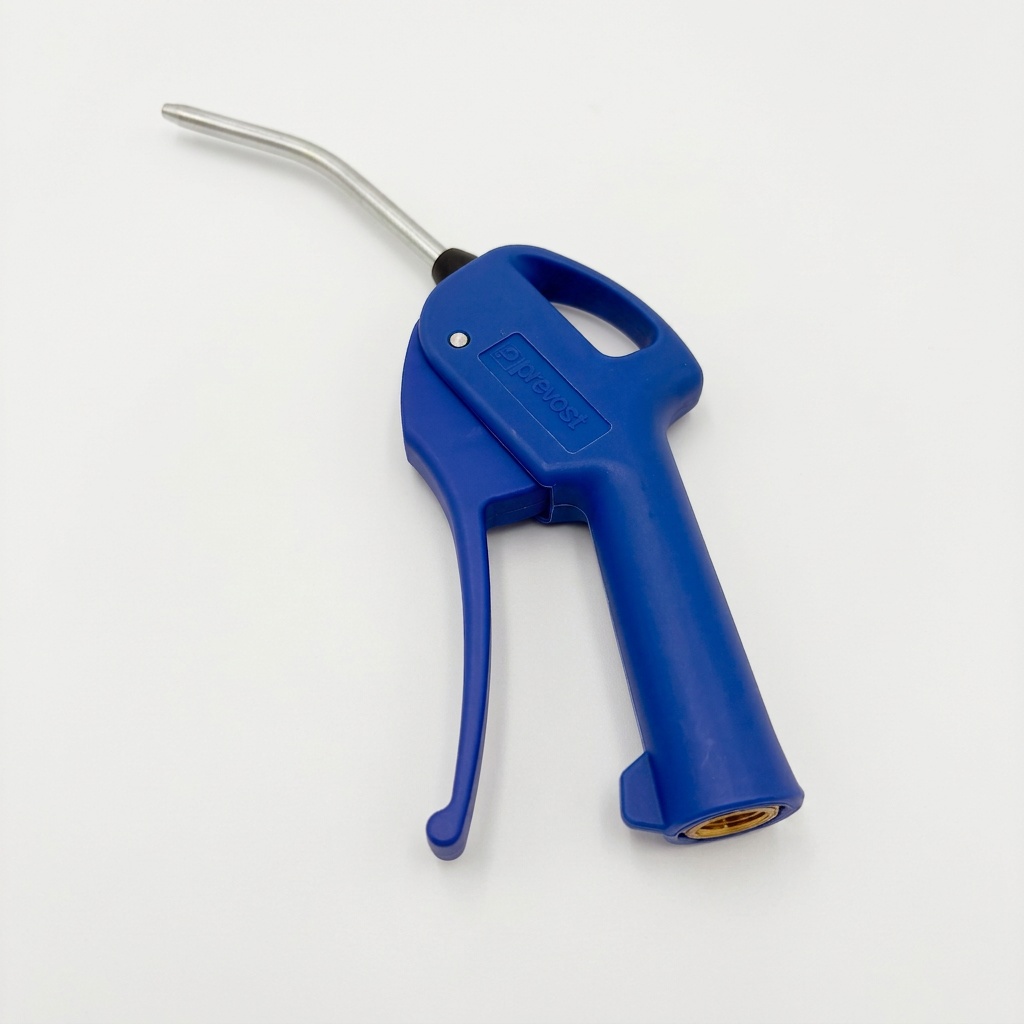

Metal nozzle blow gun, standard and limited flow
| NPT female thread | Air consumption (at 87 psi) | Noise level (at 87 psi, dBA) | Blowing force (at 87 psi, Ozf) | Dynamic pressure (at 87 psi at 4 in, psi) | Reference |
|---|---|---|---|---|---|
| 1/4 in FNPT | 13.5 cfm | 83 | 13 | 18 | 27202 MTL |
| 1/4 in FNPT | 5.3 cfm | 73 | 4.4 | 11 | 27202 MTLBP3 |
Rubber tip
| Nozzle | Construction | Reference |
|---|---|---|
| Bent 4 in with rubber tip and 1/4 in NPT | Metal tip blow gun with non-scratch nozzle | 27202 MTLRT |
Metal, bent and straight
| NPT female thread | Air consumption (at 87 psi) | Noise level (at 87 psi, dBA) | Blowing force | Dynamic pressure (at 87 psi at 4 in, psi) | Length (tube, in) | Reference |
|---|---|---|---|---|---|---|
| 1/4 in FNPT | 8.8 cfm | 86 | 9.3 | 25 | Bent 13 in | 27202 MB13 |
| 1/4 in FNPT | 8.5 cfm | 86 | 8.6 | 22 | Bent 20 in | 27202 MB20 |
| 1/4 in FNPT | 8.8 cfm | 86 | 9.3 | 25 | Straight 13 in | 27202 MS13 |
| 1/4 in FNPT | 8.5 cfm | 86 | 8.6 | 22 | Straight 20 in | 27202 MS20 |

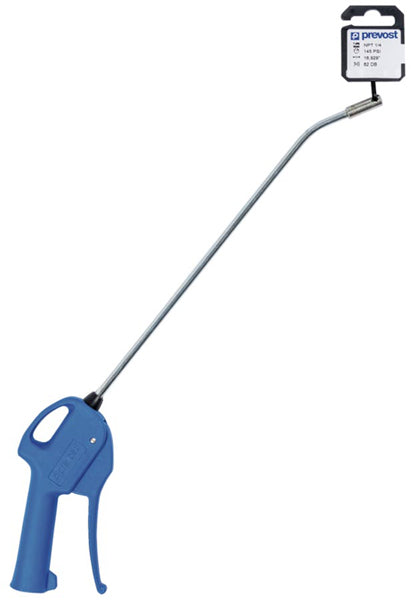

OSHA metal
| NPT female thread | Air consumption (at 87 psi) | Noise level (dBA) | Blowing force (at 87 psi, Ozf) | Dynamic pressure (at 87 psi at 4 in, psi) | Length (tube, in) | Reference |
|---|---|---|---|---|---|---|
| 1/4 in FNPT | 6.2 cfm | 82 | 7.2 | 36 | Bent 13 in | 27202 MB13OSHA |
| 1/4 in FNPT | 5.5 cfm | 81 | 6.6 | 36 | Bent 20 in | 27202 MB20OSHA |
| 1/4 in FNPT | 6.3 cfm | 83 | 7.7 | 35 | Bent 40 in | 27202 MB40OSHA |
NOTE: Actual product may be different from pictured!
