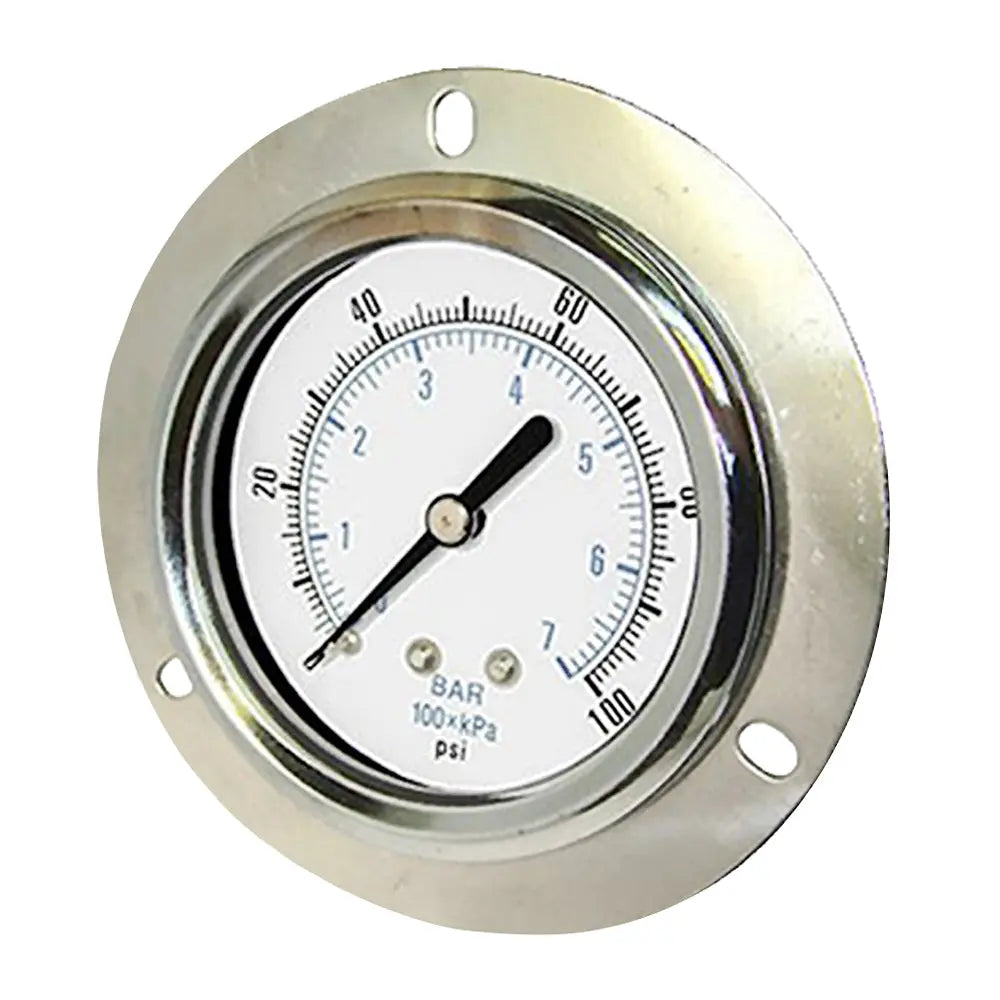

PIC Gauges 104D 2" Dry Utility Pressure Gauge — Front Flange Panel Mount, 1/4" NPT
The PIC Gauges 104D is a 2" dry utility pressure gauge built for front-flange panel mounting — ideal for air compressors, pneumatic systems, and equipment panels where the gauge reads through a cut-out. A polished chrome bezel and matching front flange give a clean, finished face, while copper-alloy internals make it suitable for air, water, oil, gas, and most media not corrosive to brass.
Key specifications
- Dial size: 2" (50 mm)
- Mounting: front flange, center-back-mount panel mount
- Connection: 1/4" NPT male
- Case & bezel: chrome-plated steel, dry / non-fillable
- Wetted parts & movement: copper alloy (brass)
- Lens: plastic; pointer: black aluminum
- Accuracy: ±3-2-3% of span (ASME B40.1 Grade B)
- Scale: psi / BAR (×100 = kPa)
- Ambient temperature: -50°F to 160°F
- Ranges: 30" Hg vacuum, 0-15, 0-30, 0-60, 0-100, 0-160, 0-200, and 0-300 PSI
Typical applications
Air compressors, pneumatic and shop-air systems, water and oil lines, pumps, control panels, and OEM equipment — anywhere a flush, panel-mounted pressure readout is needed.
Select your pressure range above. Every PIC Gauges 104D 2" front-flange utility gauge ships with a chrome-plated steel case, brass internals, and a 1/4" NPT connection for dependable, low-cost pressure monitoring.
NOTE: Actual product may be different from pictured!
