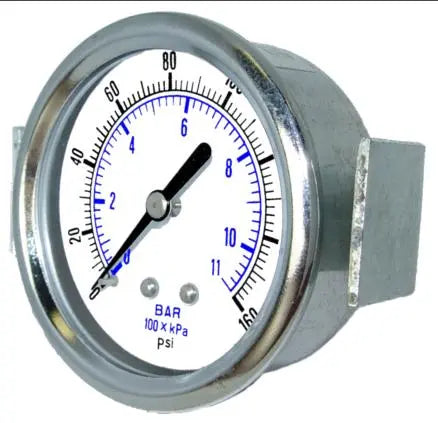

PIC Gauges 103D 2" Dry Utility Pressure Gauge — U-Clamp Panel Mount, 1/8" NPT
The PIC Gauges 103D is a dependable dry utility pressure gauge built for the broad commercial and industrial market. Its 2" (50 mm) dial and center-back U-clamp panel mount make it easy to install in control panels, compressors, pumps, and air systems, while the chrome-plated steel case and brass internals deliver reliable, repeatable readings across a wide range of media. Suitable for air, water, oil, gas, and most other media not corrosive to brass.
Key Specifications
- Dial size: 2" (50 mm)
- Mounting: Center-back with U-clamp panel mount
- Connection: 1/8" NPT (male)
- Case: Chrome-plated steel, dry / non-fillable
- Bezel: Chrome-plated steel, fixed
- Wetted parts / movement: Copper alloy (brass) with phosphor-bronze Bourdon tube
- Lens: Plastic
- Pointer: Black aluminum
- Dial scale: Dual psi / BAR
- Accuracy: ±3-2-3% of span (ASME B40.1 Grade B)
- Ambient temperature: -50°F to 160°F
- Pressure ranges: 30"/0 Hg vacuum and 0-15 through 0-3,000 PSI
Applications
Ideal for compressed air systems, air compressors, pneumatic equipment, pumps, hydraulic and water lines, HVAC, and general OEM panel installations where a compact, economical, panel-mounted gauge is required.
Choose the PIC 103D 2-inch dry utility gauge for an affordable, panel-ready pressure gauge that pairs a rugged chrome-plated steel case with accurate brass internals. Select your required pressure range below — from 30" Hg vacuum up to 3,000 PSI — to match your air, water, oil, or gas application.
NOTE: Actual product may be different from pictured!
