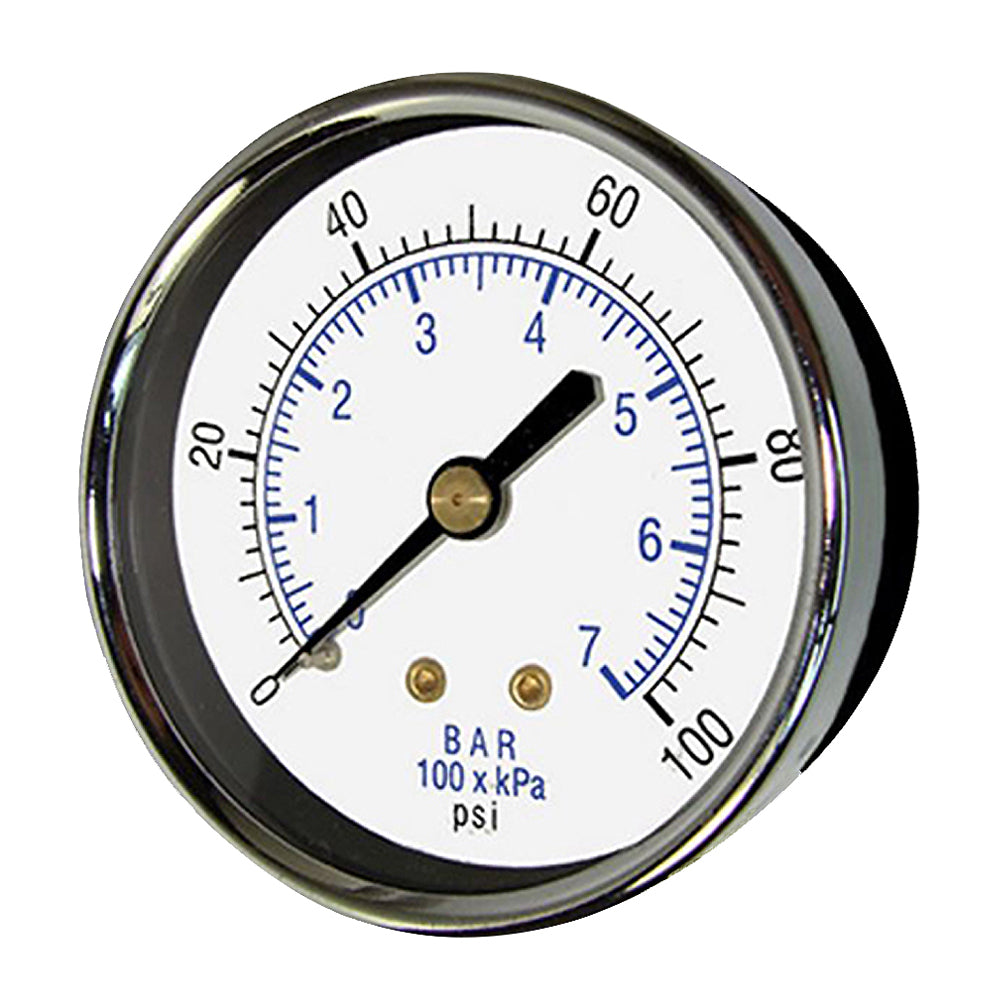

PIC Gauges 1.5" Dry Utility Pressure Gauge — Center Back Mount, 1/8" NPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
PIC Gauges
|
 SKU |
102D-158B
|
The PIC Gauges 102D-158 series is a 1.5" dry utility pressure gauge built for everyday air, water, oil, and gas service on compressors, pumps, tanks, and process lines. It pairs a black steel case and chrome-plated bezel with brass (copper-alloy) internals and a center back mount 1/8" NPT connection, making it an economical, reliable choice for OEM and replacement use. Dual-scale dial reads in PSI and kPa/BAR.
Which range should you choose?
Pick the range type that matches what your system does:
- Pressure (e.g. 0–100 PSI): Positive pressure only — what almost every air-compressor and shop-air job needs.
- Compound (30 inHg vacuum to 30 PSI): Reads both vacuum and positive pressure on one dial — for systems that pull suction and also build pressure.
- Vacuum only (0 to 30 inHg): Suction / negative pressure only.
What does "inHg" mean? It stands for inches of mercury — the standard unit gauges use to measure vacuum, meaning pressure below normal atmospheric pressure (in other words, suction). 0 inHg is ordinary atmospheric pressure, and about 30 inHg is a near-complete vacuum — roughly 14.7 PSI of suction. So a gauge marked "30 inHg" reads the entire vacuum range, from no suction down to full vacuum. (By comparison, PSI measures pressure above atmospheric.)
Key specifications
- Dial size: 1.5" (40 mm)
- Connection: 1/8" NPT, center back mount
- Case: black steel with chrome-plated bezel
- Internals: brass / copper alloy (Bourdon tube and socket)
- Lens: plastic (acrylic)
- Fill: dry (non-fillable)
- Accuracy: ±3-2-3% of span (ASME B40.100 Grade B)
- Operating temperature: -50°F to 160°F
- Dual scale: PSI and kPa/BAR
- Suitable for media not corrosive to brass / bronze
Available ranges
Choose from eleven ranges — a 30 inHg vacuum gauge, a 30 inHg–0–30 PSI compound gauge, and pressure ranges of 0-15, 0-30, 0-60, 0-100, 0-160, 0-200, 0-300, 0-400, and 0-600 PSI.
Typical applications
Air compressors and air receivers, pump discharge, water systems, pneumatic equipment, HVAC/R, hydraulic test points, and general industrial and OEM gauge replacement.
The PIC Gauges 102D-158 is a dependable 1.5" center-back-mount dry utility pressure gauge with a 1/8" NPT connection, steel case, and brass internals — a cost-effective standard for compressed air and fluid pressure monitoring.
NOTE: Actual product may be different from pictured!
