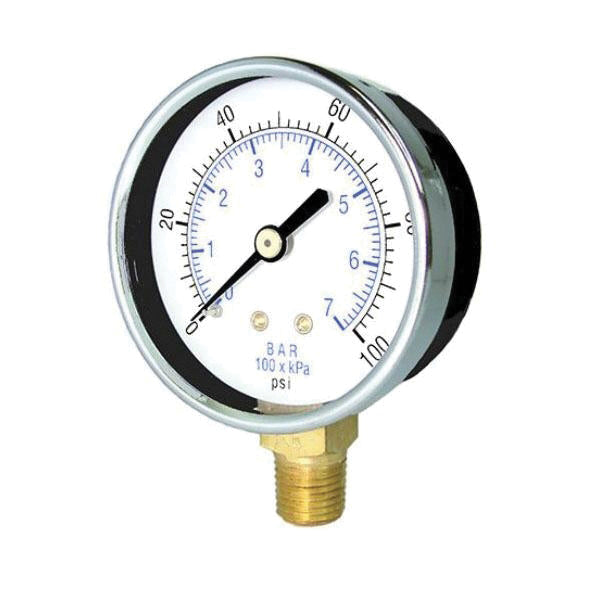

PIC Gauges 1.5" Dry Pressure Gauge — Lower Mount, 1/8" NPT, Black Steel Case
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog
|
 SKU |
101D-158B
|
The PIC Gauges 101D is a 1.5" dial dry utility pressure gauge built for everyday commercial and industrial service. It features a rugged black steel case, brass internals, a chrome bezel, and a clear plastic lens, with a 1/8" male NPT lower (bottom) mount connection.
Which range should you choose?
Pick the range type that matches what your system does:
- Pressure (e.g. 0–100 PSI): Positive pressure only — what almost every air-compressor and shop-air job needs.
- Compound (30 inHg vacuum to 30 PSI): Reads both vacuum and positive pressure on one dial — for systems that pull suction and also build pressure.
- Vacuum only (0 to 30 inHg): Suction / negative pressure only.
What does "inHg" mean? It stands for inches of mercury — the standard unit gauges use to measure vacuum, meaning pressure below normal atmospheric pressure (in other words, suction). 0 inHg is ordinary atmospheric pressure, and about 30 inHg is a near-complete vacuum — roughly 14.7 PSI of suction. So a gauge marked "30 inHg" reads the entire vacuum range, from no suction down to full vacuum. (By comparison, PSI measures pressure above atmospheric.)
Key specifications
- Dial size: 1.5" (1-1/2")
- Connection: 1/8" male NPT, lower (bottom) mount
- Case: black steel; chrome bezel; plastic lens
- Internals: brass (dry / non-fillable)
- Accuracy: ±3-2-3% of span (ASME B40.1 Grade B)
- Operating temperature: -50°F to 160°F
- Available ranges: 30 inHg vacuum, 30 inHg/0/30 PSI compound, 0–15, 0–30, 0–60, 0–100, 0–160, 0–200, 0–300, and 0–600 PSI
Typical applications
Air compressors, pneumatic systems, pumps, filtration and HVAC equipment, and general OEM and maintenance use where a compact, economical dry gauge is needed.
The PIC Gauges 101D 1.5" dry pressure gauge pairs a durable steel case and brass movement with a wide range of pressure and vacuum scales, making it a reliable, cost-effective choice for compressed-air and fluid-pressure monitoring.
NOTE: Actual product may be different from pictured!
