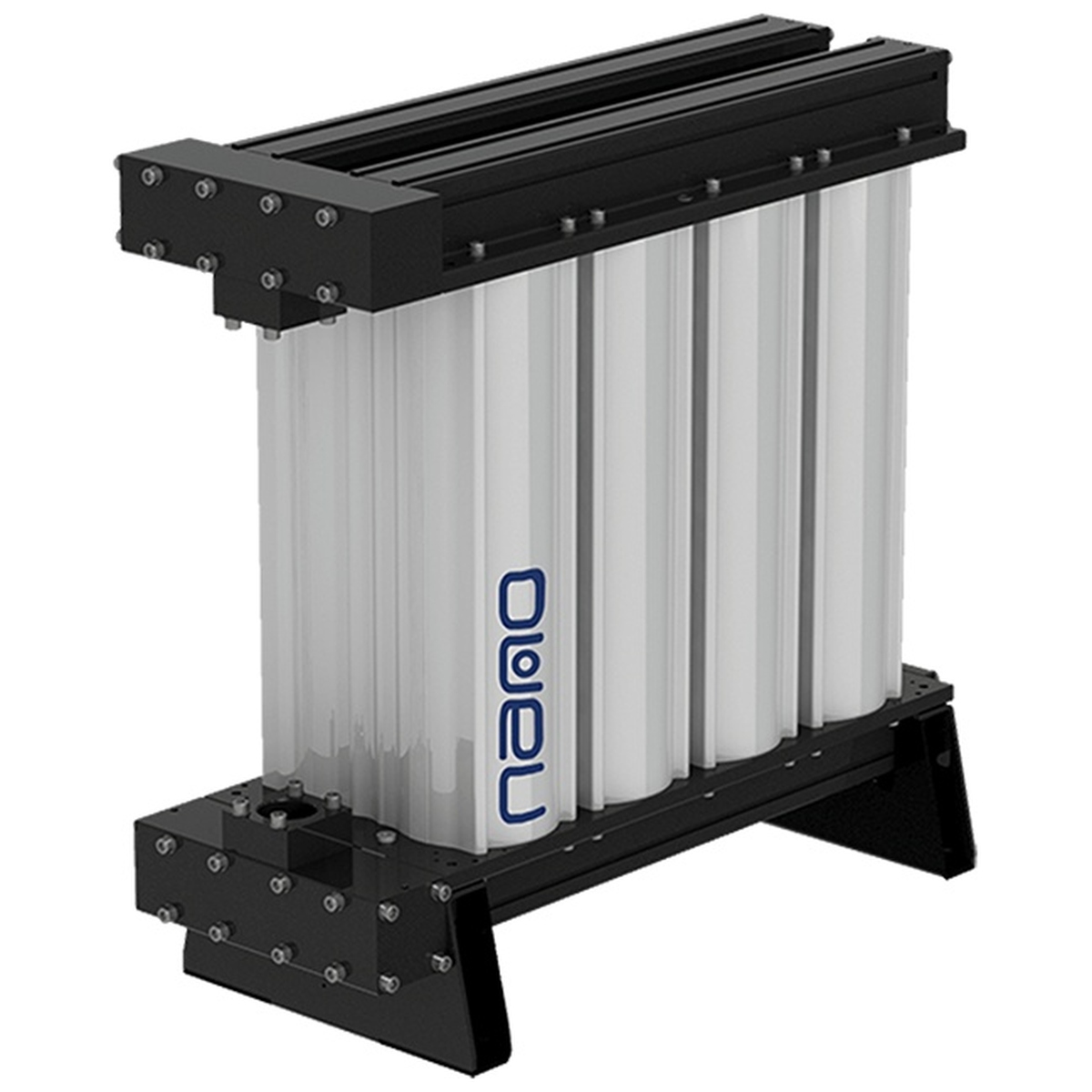

NVR Oil Vapor Removal System By Nano
| Specifications (As Configured) | |
|---|---|
 Vendor |
Nano
|
 SKU |
8102077144
|
The nano NVR oil vapor removal system uses activated carbon adsorption to strip oil vapor and odor from compressed air, delivering technically oil-free air with a maximum outlet oil content of 0.003 ppm. Rated 40 to 1500 SCFM, its compact extruded-aluminum design is far smaller than traditional carbon towers and runs at low pressure drop for economical point-of-use or compressor-room installation.
How the NVR works
- Compressed air enters a cartridge packed with activated carbon and fitted with an integral diffuser.
- The carbon adsorbs oil vapor and associated odors as the air passes through.
- A built-in 1-micron dust filter cleans the air on the way out, so no separate downstream filter is needed.
- Clean, technically oil-free air leaves the modular aluminum housing at low pressure drop.
Key features
- ISO 8573.1 Class 1 for oil, outlet oil content as low as 0.003 ppm at 95°F
- Activated carbon cartridge with integral diffuser and built-in 1-micron dust filter
- Extruded-aluminum, modular design that is compact and lightweight
- Low pressure drop for efficient, economical operation
- Roughly 12-month cartridge life under recommended conditions
Specifications
- Flow rate: 40 – 1500 SCFM at 100 psig
- Connections: ½" to 2½" NPT
- Air quality: ISO 8573.1:2010 Class 1 (oil)
- Maximum outlet oil content: 0.003 ppm at 95°F
- Maximum working pressure: 232 psig
- Operating temperature: 36 – 95°F (122°F max)
- Cartridge life: approximately 12 months
Required inlet air quality
The NVR is a finishing (polishing) stage and needs suitably pre-treated air upstream. Provide air that is already dried and filtered to at least: maximum particulate 0.01 micron, maximum pressure dew point −40°F, and maximum oil content 0.05 ppm. Pair it with a desiccant dryer and coalescing filtration for best results and cartridge life.
Ideal applications
- Food, beverage, and packaging
- Pharmaceutical and laboratory air
- Electronics and critical manufacturing
- Any process needing oil-free air without the cost of an oil-free compressor
Frequently asked questions
How clean is the outlet air?
Down to 0.003 ppm oil at 95°F, meeting ISO 8573.1 Class 1 for oil.
Do I need a separate downstream filter?
No. A 1-micron dust filter is built into the cartridge, eliminating the need for external downstream filtration.
Does it need anything upstream?
Yes. Supply dried, filtered air (particulate to 0.01 micron, dew point to −40°F, oil to 0.05 ppm). It polishes pre-treated air rather than replacing a dryer.
How often are cartridges replaced?
About every 12 months under recommended operating conditions.
NOTE: Actual product may be different from pictured!
