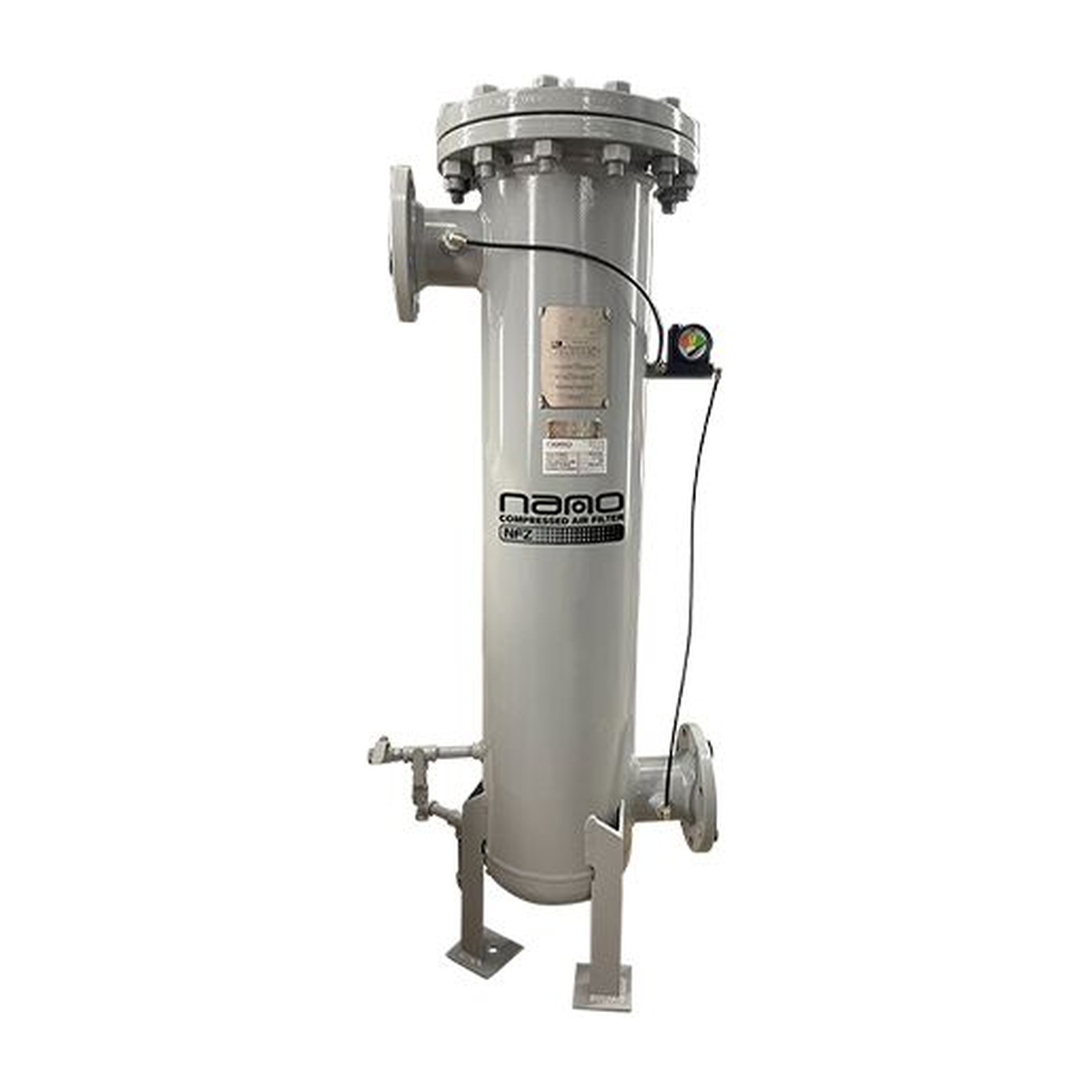

NFZ High-Capacity Flanged Compressed Air Filter By Nano

The nano NFZ high-capacity flanged filters are fabricated carbon steel compressed air and gas filters engineered for reliable liquid and particulate removal at low pressure drop in high-flow industrial systems. This is the Z-flow configuration of the F2 range, covering nine models from 2500 to 10000 SCFM at 100 psig with 4" to 10" ANSI flanged connections. Each housing is built in accordance with ASME VIII with U-Stamp approval, manufactured in an ISO 9001 facility and tested to ISO 12500. Externally primed and powder coated for corrosion resistance, the NFZ is the workhorse filter for compressor rooms, gas treatment skids and other bulk-flow applications where high capacity and durability matter.

How to select your NFZ filter

1. Match the model to your flow and flange size. Choose the NFZ rated at or above your actual SCFM at 100 psig, from NFZ 2500 (2500 SCFM, 4" flange) up to NFZ 10000 (10000 SCFM, 10" flange).
2. Choose the element grade for the air quality you need. Use M1 (1 micron) for general particulate and coalescing duty, M01 (0.01 micron) for high-efficiency coalescing, and AC activated carbon for oil vapor and odor removal.
3. Stage filters in series for critical air. A common train is an M1 coalescer, then an M01 high-efficiency coalescer, then an AC carbon filter for vapor-free air.
4. Confirm your operating temperature. M1 and M01 grades run 35 to 212 F recommended; AC carbon grade is rated 35 to 77 F recommended.

Key features

• High-capacity fabricated carbon steel housing for high-flow duty from 2500 to 10000 SCFM.
• Z-flow configuration with 4" to 10" ANSI flanged inlet and outlet.
• Built in accordance with ASME VIII with U-Stamp approval.
• Manufactured in an ISO 9001 facility and tested to ISO 12500.
• Externally primed and powder coated for optimum corrosion resistance.
• Elements compatible with synthetic lubricants, with an outer drainage layer that prevents carryover.
• Three interchangeable element grades (M1, M01, AC) for tailored air quality.
• High pressure and stainless steel options available on request.

Specifications

• Nominal flow: 2500 to 10000 SCFM at 100 psig.
• Connections: 4", 6", 8" and 10" ANSI flanged depending on model.
• Flow configuration: Z-flow (F2 range).
• Housing: fabricated carbon steel, externally primed and powder coated, ASME VIII with U-Stamp.
• Replacement element: E 0853 series (aluminum end cap) by grade.
• Grade M1: 1 micron particulate and coalescing, max oil carryover 0.1 ppm, design temp 35 to 248 F.
• Grade M01: 0.01 micron coalescing, max oil carryover 0.01 ppm, design temp 35 to 248 F.
• Grade AC: activated carbon, oil vapor removal to 0.003 ppm at 68 F, design temp 35 to 122 F.
• Tested in accordance with ISO 12500; ISO 8573-1 air quality classes per grade.

Ideal applications

• Large compressor rooms and central compressed air systems.
• Biogas, landfill gas and process gas treatment skids.
• Bulk water, oil aerosol and particulate removal in high-flow lines.
• Power generation, chemical, and heavy manufacturing plants.
• Any high-flow application needing durable, low pressure drop filtration.

Frequently asked questions

What is the difference between the NFZ and NFT filters? Both are F2 high-capacity flanged filters. The NFZ uses a Z-flow (offset) porting arrangement and the NFT uses a T-flow (inline) arrangement. Choose the one that best fits your piping layout; the filtration grades and elements are the same.

Which grade removes oil vapor? The AC activated carbon grade removes oil vapor and odors down to 0.003 ppm and is installed downstream of coalescing filters.

Which model do I need? Select the model whose SCFM rating at 100 psig meets or exceeds your actual flow and whose flange matches your piping, from 2500 SCFM (4" flange) to 10000 SCFM (10" flange).

Are these pressure vessels code stamped? Yes. NFZ housings are fabricated in accordance with ASME VIII and carry a U-Stamp.

Can I get a high-pressure or stainless steel version? Yes. High pressure and stainless steel options are available on request.

Specifications are drawn from the nano F2 NFZ/NFT datasheet and are for general reference only. Confirm final selection against the current nano product brochure and user guide.
