X-AOC30 Combination Aftercooler/Oil Cooler By Nano
X-AOC30 Combination Aftercooler/Oil Cooler By Nano
Regular price
$2,549.00
Sale price
$2,549.00
Regular price
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
Nano
|
 SKU |
XAOC30-3
|
| Dimensions | |
 Weight |
145.0 kg
|
Nano X1 Combination Aftercooler/Oil Coolers
Nano understands your needs and has created the Nano X1 range of high-performance aftercooler products to ensure the performance and energy efficiency of downstream compressed air treatment equipment at an affordable price with unrivaled reliability.

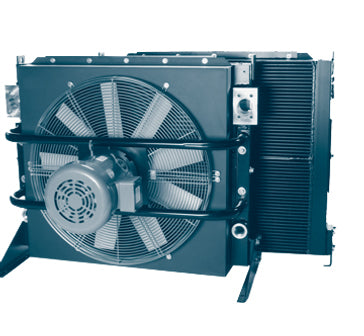

Available from 5 to 500 hp, the X-AOC Series is a complete aftercooler and oil cooler package designed to work on most rotary air compressors. The package includes an aftercooler/oil cooler, fan, motor, guards, and mounting brackets. Ideal for converting water-cooled compressors to air-cooled ones or for remote mounting the cooling package from the compressor.
Nano Aftercooler Difference
Sizing Notes
Specs will vary depending on model
Nano understands your needs and has created the Nano X1 range of high-performance aftercooler products to ensure the performance and energy efficiency of downstream compressed air treatment equipment at an affordable price with unrivaled reliability.
Available from 5 to 500 hp, the X-AOC Series is a complete aftercooler and oil cooler package designed to work on most rotary air compressors. The package includes an aftercooler/oil cooler, fan, motor, guards, and mounting brackets. Ideal for converting water-cooled compressors to air-cooled ones or for remote mounting the cooling package from the compressor.
Nano Aftercooler Difference
- Advanced technology designs
- Up to 60% smaller than conventional fin and tube designs
- Rugged bar and plate designs
- Reduced air side fouling
- Competitive prices
Sizing Notes
-
Heat Removal
- Aftercooler = Compressor horsepower x 1.15 (Motor Service Factor) x .17 (17% of input horsepower is rejected to heat)
- Oil Cooler = compressor horsepower x 1.15 (Motor Service Factor) x .83 (83% of input horsepower is rejected to heat)
-
Temperatures
- Ambient air temperature + 15°F = compressed air outlet temperature
- Ambient air temperature + 100°F = compressed oil outlet temperature
-
Flows
- Compressor horsepower x 4.5 = SCFM flow
Specs will vary depending on model
NOTE: Actual product may be different from pictured!
