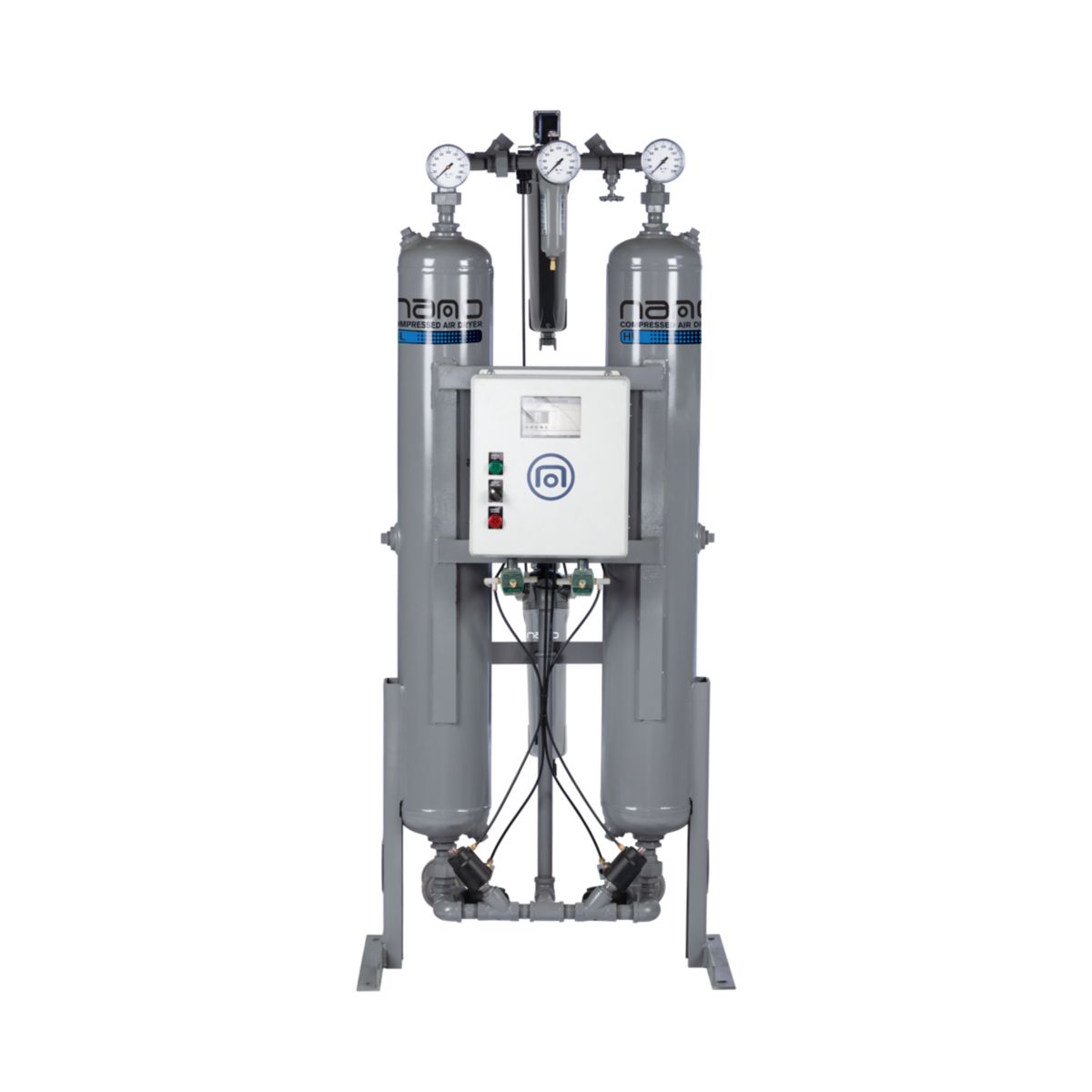

nano D5 HL Heatless Twin Tower Desiccant Air Dryer — 70 to 3000 SCFM, -40°F Dew Point
| Specifications (As Configured) | |
|---|---|
 Vendor |
Nano
|
 SKU |
8102405024
|
The nano D5 HL series is a family of heatless twin tower (pressure-swing) desiccant air dryers delivering a consistent -40°F pressure dew point for clean, dry compressed air. Each dryer uses a small stream of expanded dry purge air to regenerate the offline desiccant bed, providing continuous, uninterrupted moisture removal in a simple, reliable, and cost-effective package. Pressure vessels are ASME-coded, dryers are UL/cUL compliant, and every unit is manufactured in the USA. Select your required capacity from 70 to 3000 SCFM above.
Shared specifications (all models)
- Pressure dew point: -40°F standard (-100°F optional)
- Operating pressure: 60–180 psig (100 psig design)
- Inlet & ambient air temperature: up to 120°F
- Built-in filtration: ISO Class 2 (1 micron) standard; Class 1 (0.01 micron) optional
- Power supply: 115V / 60Hz / 1Ph standard (230V / 60Hz / 1Ph optional)
- Construction: ASME-coded pressure vessels, UL/cUL compliant, made in USA
Model & capacity guide
| Model | Capacity (SCFM) | In/Out (NPT) | Dimensions W × D × H (in) | Weight (lb) | Desiccant (lb) |
|---|---|---|---|---|---|
| HL0070B1BNXXX | 70 | 3/4" | 30.5 × 22.6 × 71.5 | 275 | 70 |
| HL0100B1BNXXX | 100 | 1" | 34 × 25.5 × 74 | 300 | 100 |
| HL0150B1BNXXX | 150 | 1" | 34 × 25.5 × 74 | 415 | 140 |
| HL0200B1BNXXX | 200 | 1-1/2" | 43.5 × 32.8 × 83.5 | 540 | 200 |
| HL0250B1BNXXX | 250 | 1-1/2" | 43.5 × 32.8 × 83.5 | 590 | 240 |
| HL0300B1BNXXX | 300 | 1-1/2" | 48 × 35.5 × 84.1 | 600 | 300 |
| HL0350B1BNXXX | 350 | 2" | 48.8 × 42.3 × 84.4 | 735 | 350 |
| HL0450B1BNXXX | 450 | 2" | 48.5 × 42.3 × 84.4 | 1000 | 450 |
| HL0500B1BNXXX | 500 | 2" | 50.8 × 42.3 × 86.4 | 1100 | 500 |
| HL0600B1BNXXX | 600 | 2" | 50.8 × 42.3 × 86.5 | 1300 | 600 |
| HL0750B1BNXXX | 750 | 2" | 53 × 42.3 × 87.3 | 1500 | 750 |
| HL1000B1ANXXX | 1000 | 3" | 66 × 61 × 103 | 2600 | 950 |
| HL1250B1ANXXX | 1250 | 3" | 70 × 61 × 108 | 3000 | 1250 |
| HL1500B1ANXXX | 1500 | 3" | 70 × 61 × 108 | 3400 | 1450 |
| HL2000B1ANXXX | 2000 | 4" | 102 × 64 × 119 | 4600 | 2000 |
| HL2500B1ANXXX | 2500 | 4" | 102 × 64.9 × 119 | 5000 | 2400 |
| HL3000B1ANXXX | 3000 | 6" | 113.8 × 65.3 × 129 | 6500 | 3000 |
Applications
Ideal for instrument air, pneumatic controls and automation, spray finishing, laser cutting, food and beverage, pharmaceutical, electronics, and any application where moisture in the compressed air line would cause corrosion, product spoilage, or downstream equipment failure.
The nano D5 HL heatless twin tower desiccant dryer protects your compressed air system by removing water vapor down to a -40°F dew point, preventing rust, frozen lines, and contaminated product. With field-adjustable cycle timing, low pressure drop, ASME-coded pressure vessels, and USA manufacturing, the HL series is a dependable choice for point-of-use and whole-plant drying from 70 to 3000 SCFM.
NOTE: Actual product may be different from pictured!
