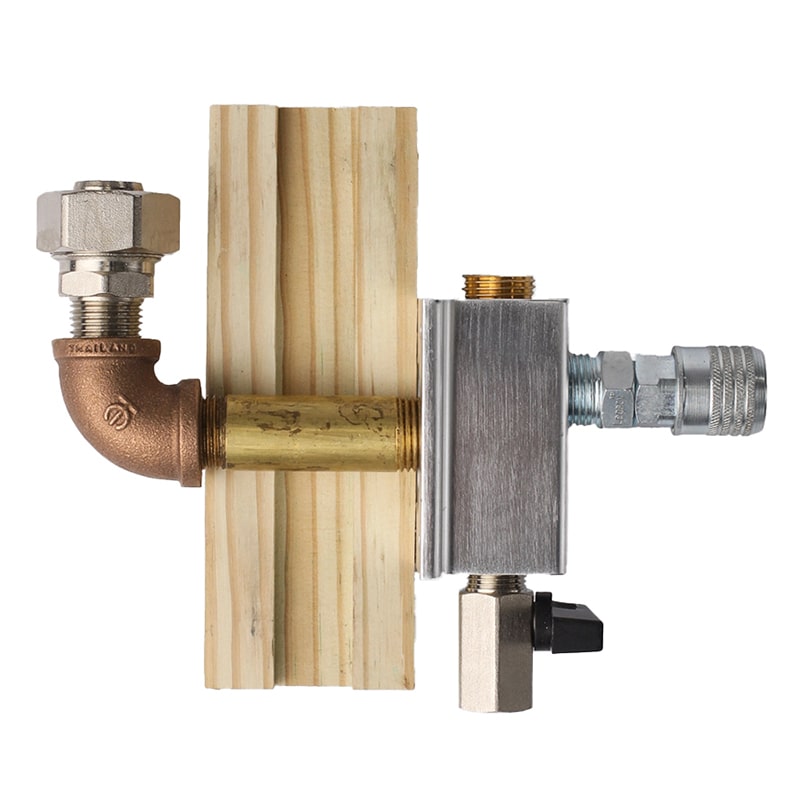

MaxLine M7510W Thru-Wall Air Outlet Kit — 3/4" Tubing x 1/2" FNPT
The MaxLine M7510W is a thru-wall air outlet kit for the MaxLine 3/4" semi-flexible compressed air piping system. It provides a clean, professional air drop through a wall for connecting an air hose or quick coupler, with higher flow than the 1/2" outlet — push-to-connect installation with no soldering, gluing, or special tools.
Key specifications
- For use with 3/4" MaxLine semi-flexible aluminum tubing
- 1/2" Female NPT outlet port
- Anodized aluminum outlet block
- Maximum working pressure: 200 PSI at 73°F (160 PSI at 140°F)
- Includes: M81010 aluminum block, M8005 3/4" tubing adapter, 50607 1/2" female NPT pipe elbow, 50136 1/2" brass plug, and 50120 drain valve
- Compatible quick couplers: RapidAir K6241, K7241, or K9241 (sold separately)
Typical applications
Suited to professional shops and industrial installations that run a 3/4" MaxLine trunk line and need a high-flow wall drop — feeding hose reels, air tools, sandblasters, and tire inflators where greater air volume is required.
The MaxLine M7510W thru-wall outlet kit delivers a durable, leak-free 1/2" FNPT connection for any 3/4" MaxLine compressed air piping run, with simple push-to-connect assembly that installs in an afternoon.
NOTE: Actual product may be different from pictured!
