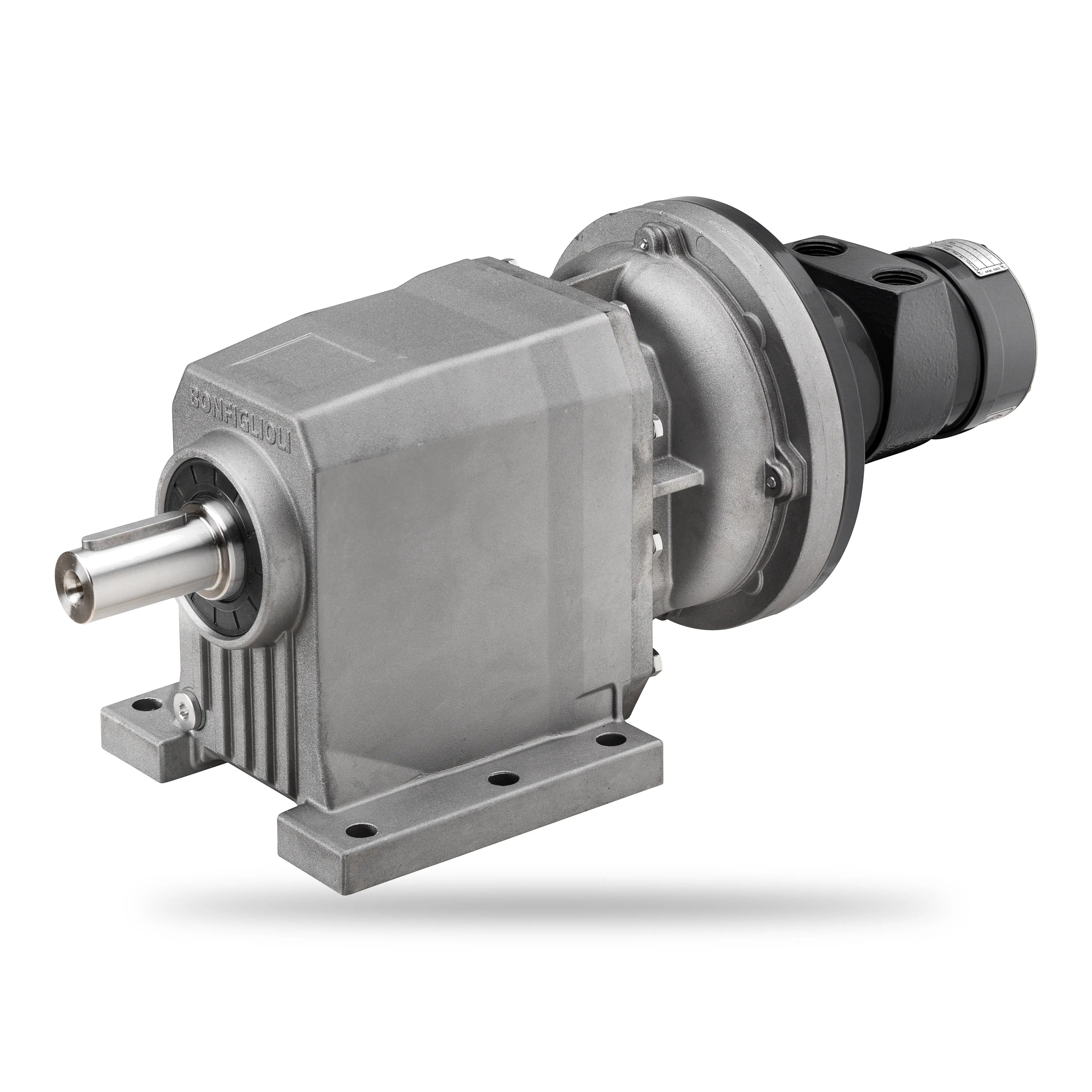

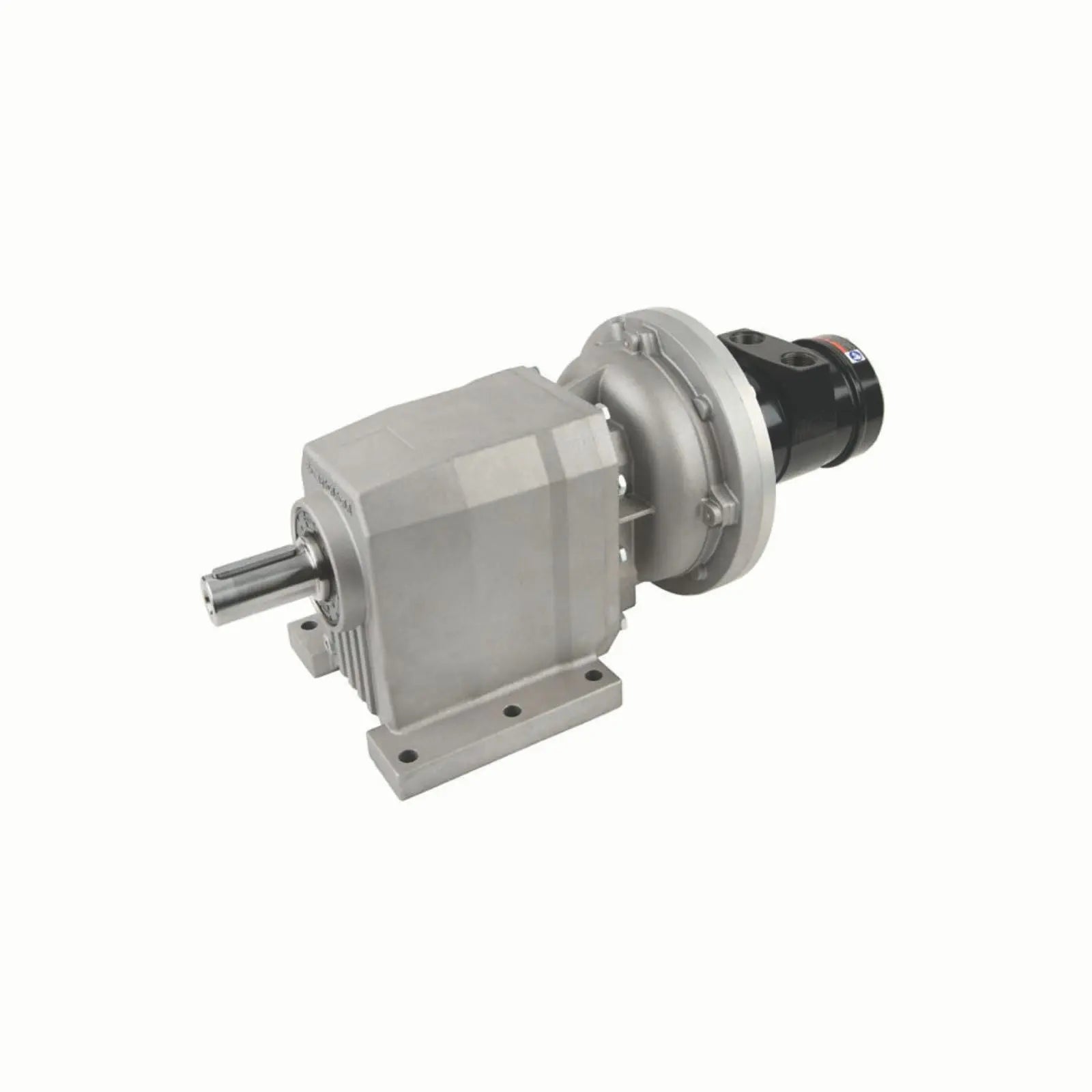

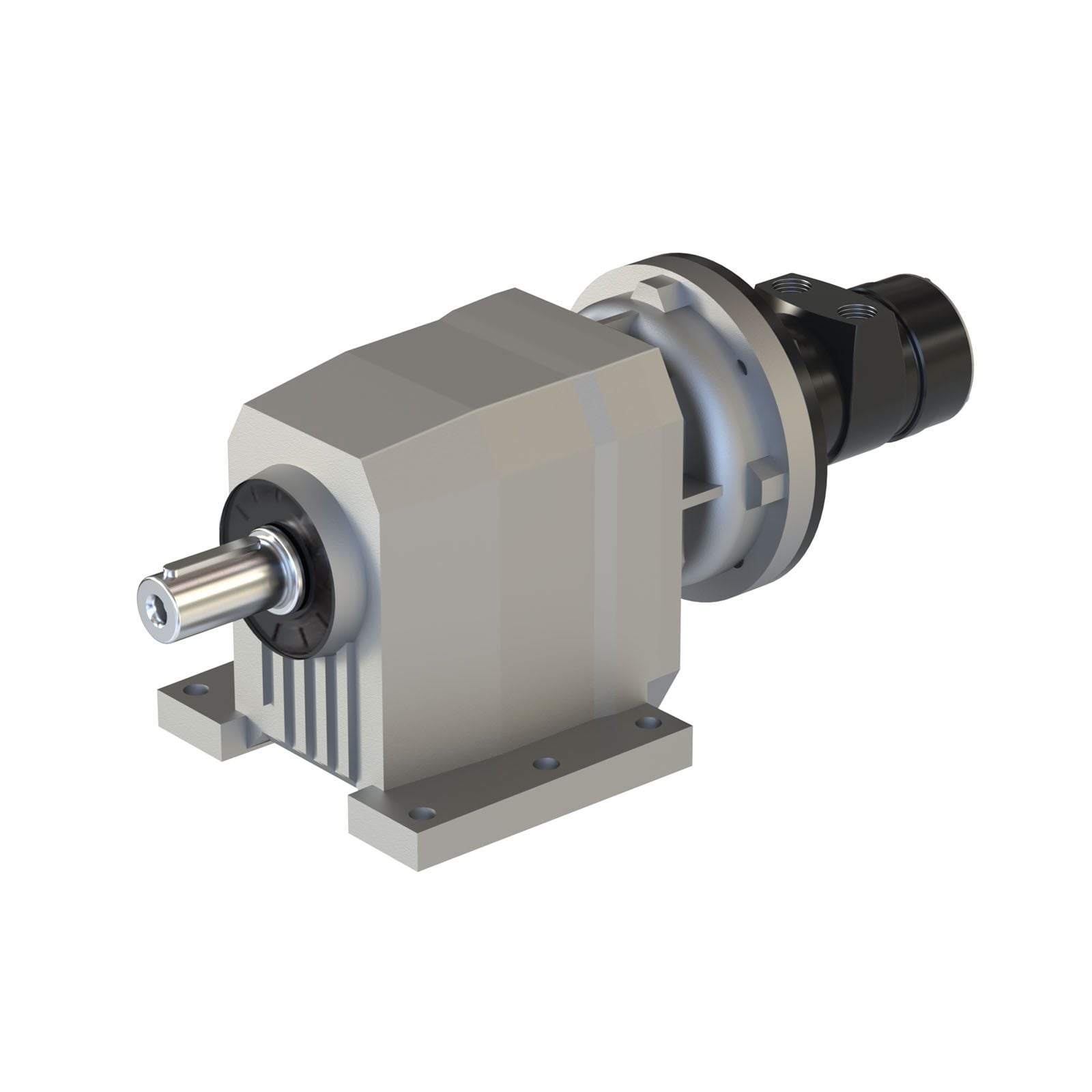

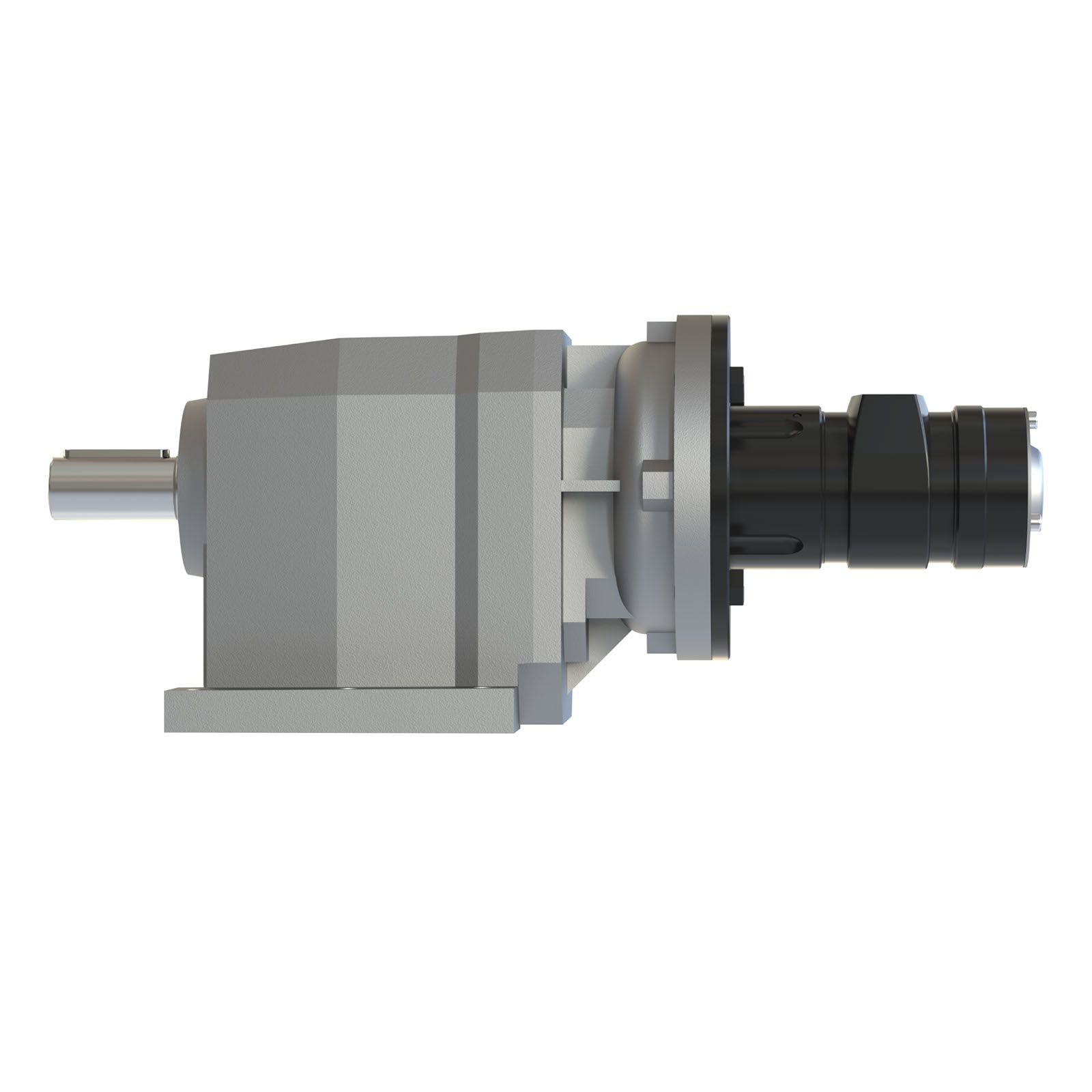

Atlas Copco LZL05-BF322-A-012 | LZL05 Vane Motor + 2-Stage Helical Gearbox — 12.3:1 Ratio, Type-A-Type

The Atlas Copco LZL05-BF322-A-012 pairs an LZL05 vane air motor with a helical gearbox on a 12.3:1 reduction, giving a 680 RPM free speed and 1.2 kW (1.7 hp) with 30 Nm (22 ft-lb) at its 391 RPM max-output point. Fully reversible, standard keyed shaft, foot mounted, 14 kg (31 lb).

Performance at a Glance

The 12.3:1 helical reduction brings free speed down to 680 RPM, with peak output of 1.2 kW (1.7 hp) at 391 RPM and 30 Nm (22 ft-lb) there. Minimum starting torque is 51 Nm (37 ft-lb) and stall torque is 60 Nm (44 ft-lb) at the gearbox output, so it breaks away under load and stalls harmlessly rather than tripping. Suited to conveyor, agitator and rotary valve duty.

Technical Specifications

Key Features

• Max Output Power: 1.2 kW (1.7 hp) at 391 RPM — rated for continuous-duty operation in fixed-plant and automation environments
• Rotation: Fully Reversible—switchable by reversing air connections, no disassembly required
• Standard Vane Design: Atlas Copco lists this build with standard vanes rather than the lubrication-free vane set, so run it on lubricated air through an in-line oiler for full vane life.
• ATEX: Atlas Copco does not list an ATEX certification for this motor and gearbox combination. If you need a certified unit for a classified area, contact us and we will quote a direct-drive LZL that carries an ATEX code.
• Output Shaft — Standard Keyed Shaft: Direct integration into existing drive trains, couplings, sprockets, and IEC/NEMA machine interfaces
• 12.3:1 Helical Gear Reduction: Foot mounted, with 60 Nm (44 ft-lb) of stall torque at the output shaft
• Overload Safe: Stalls harmlessly under overload; self-starts when load is removed — no thermal protection, burnout risk, or electronic fault recovery needed
• Infinitely Variable Speed: Regulate output speed and torque via inlet pressure or flow control valve — no electronic drives or VFDs required
• Speed Sensor Ready: Atlas Copco lists a sensor fixture kit and a speed control kit for the LZL05, so the unit can be fitted for real-time speed monitoring and closed-loop control without an external transducer
• Atlas Copco Quality: Designed and manufactured to ISO 9001 standards; global spare parts and service network with application engineering support

Ideal Applications

• Conveyor, feeder and indexing drives
• Agitator and blender drives in process tanks
• Rotary valve and airlock drives
• Packaging and web handling machinery
• Plant where a pneumatic drive is preferred for its stall tolerance and continuous duty cycle
• Environments where electric motors present ignition, EMI, or water ingress risks

This build mounts the LZL05 vane motor directly to a helical gearbox, trading free speed for output torque so the shaft lands in the range the application needs. Atlas Copco offers the gear unit in two mounting configurations, foot and flange, and this is the foot version. Speed stays infinitely variable from the air supply alone, by adjusting inlet pressure or flow, with no electronic drive in the loop.

Air consumption at maximum output is 36 l/s (77 cfm). External parts are powder coated cast iron and aluminium.

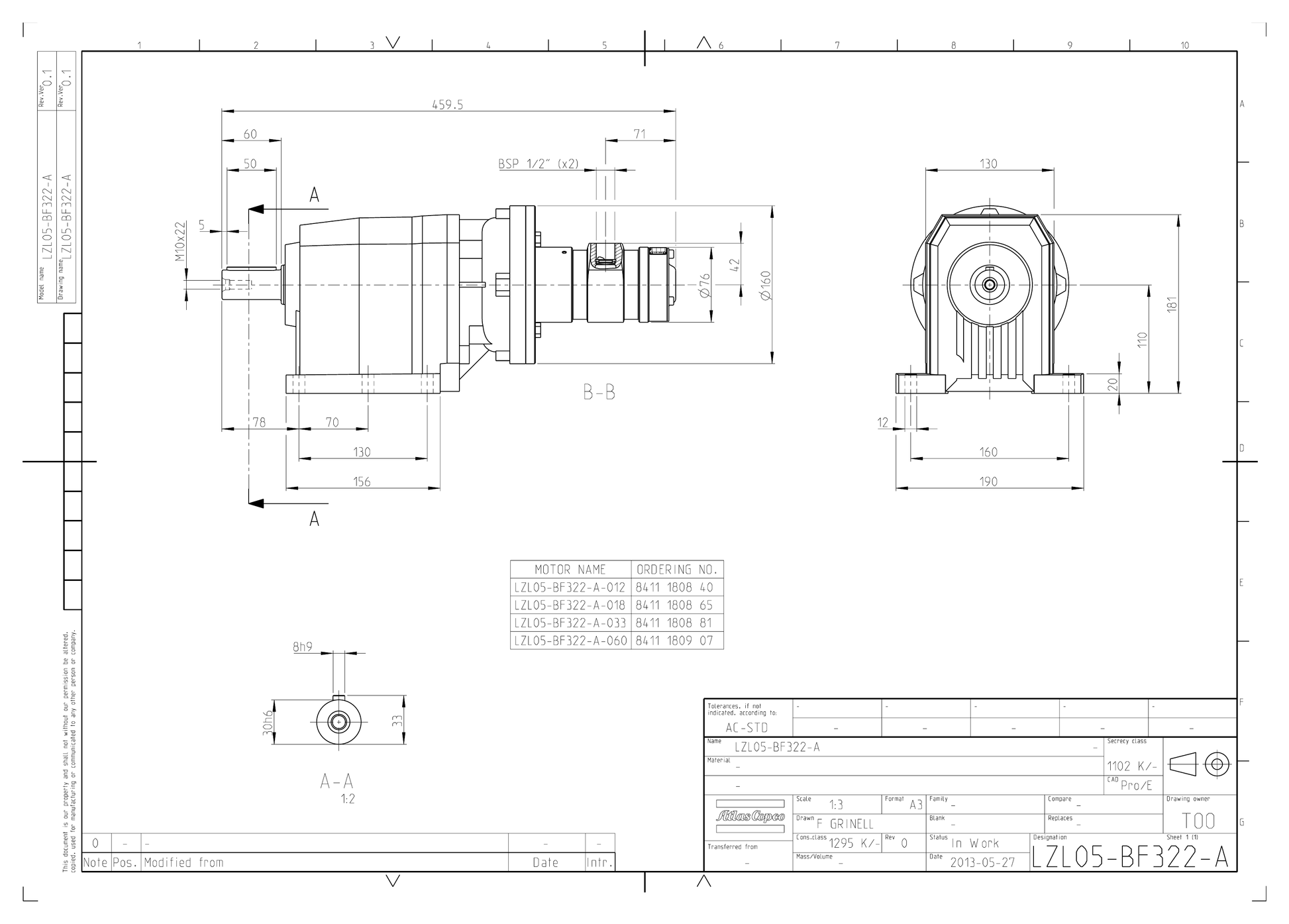

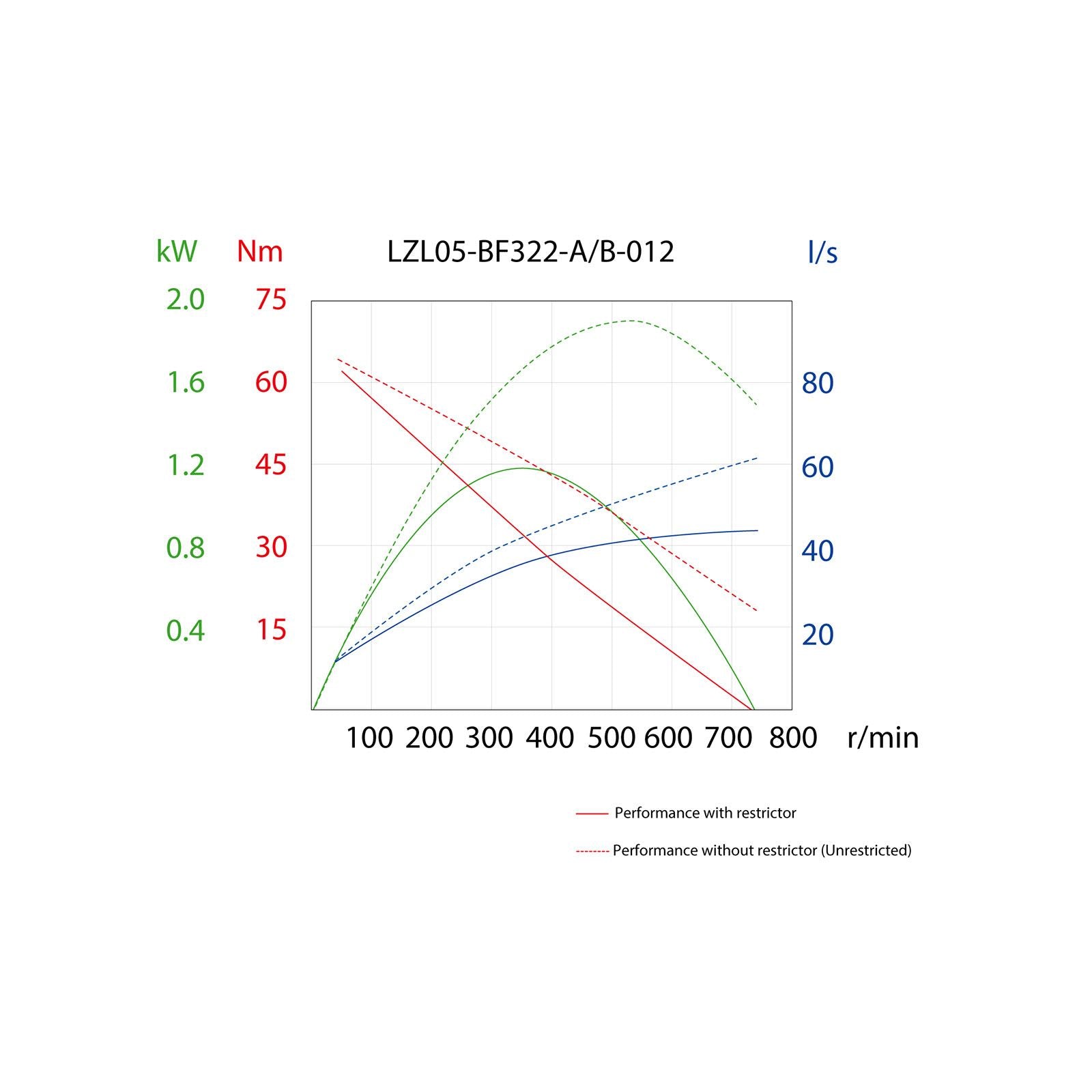

Part Number: LZL05-BF322-A-012 | EDP: 8411180840 | Performance data at 6.3 bar (91 psi). For full performance curves and dimensional drawings, see the Atlas Copco Industrial Air Motor Catalogue.
