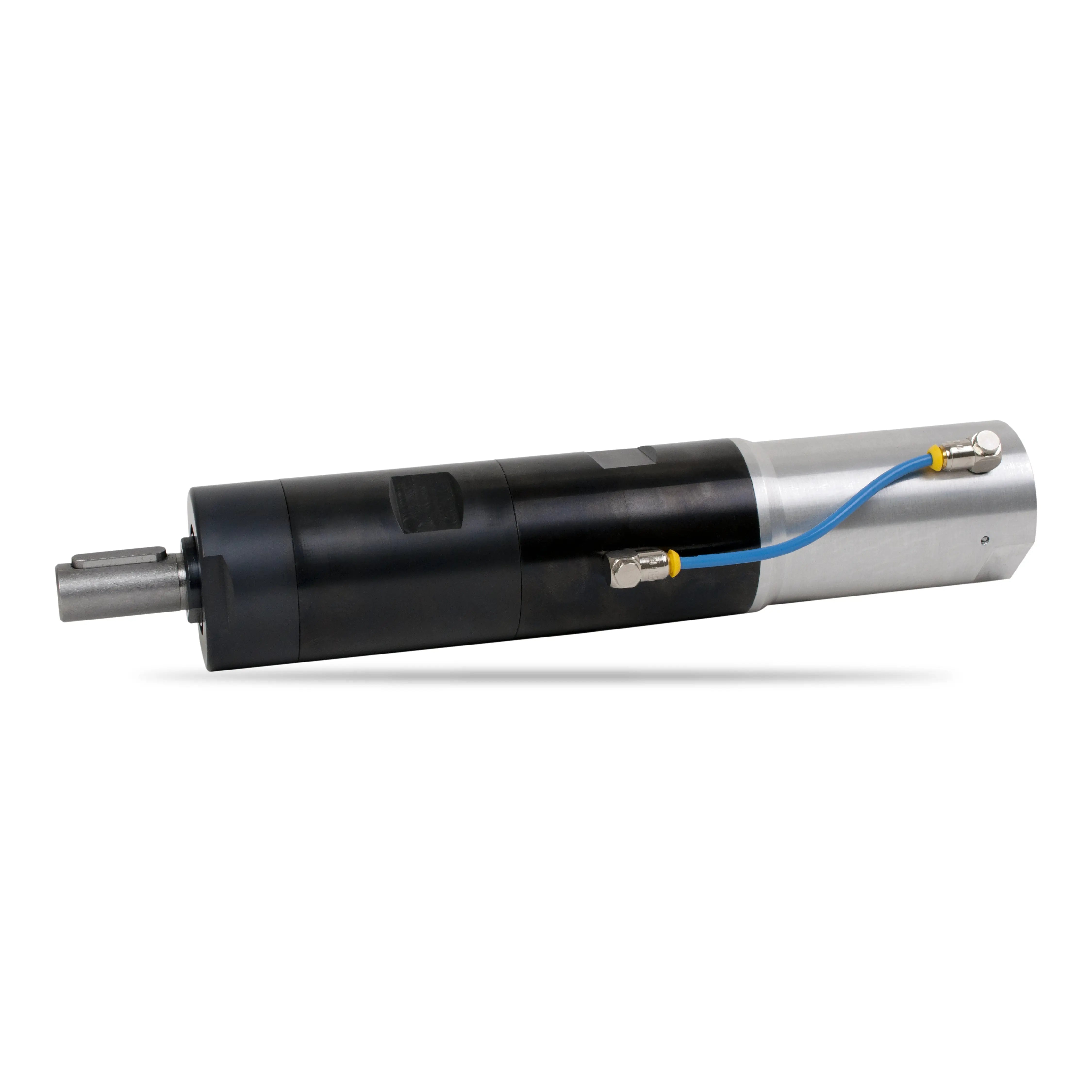

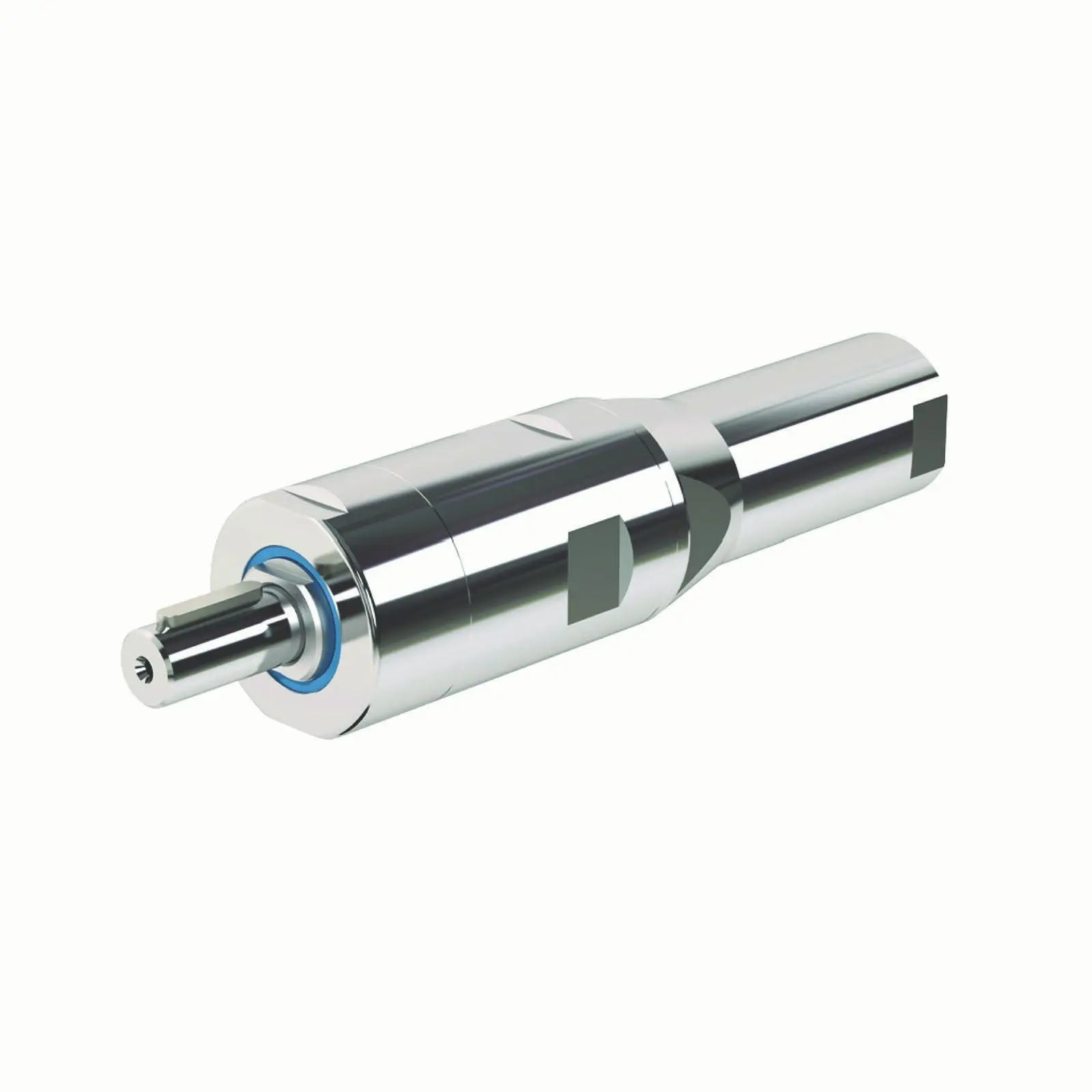

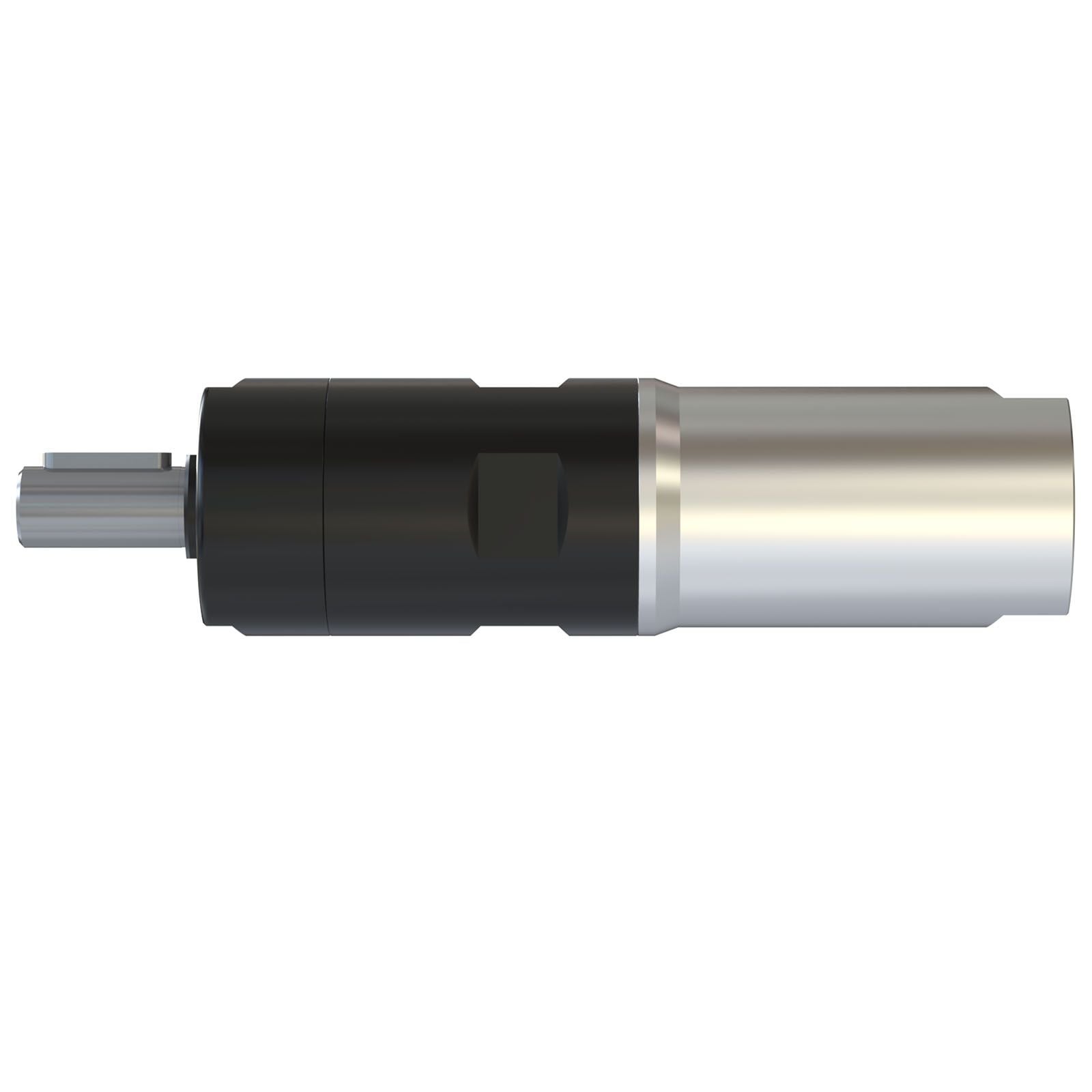

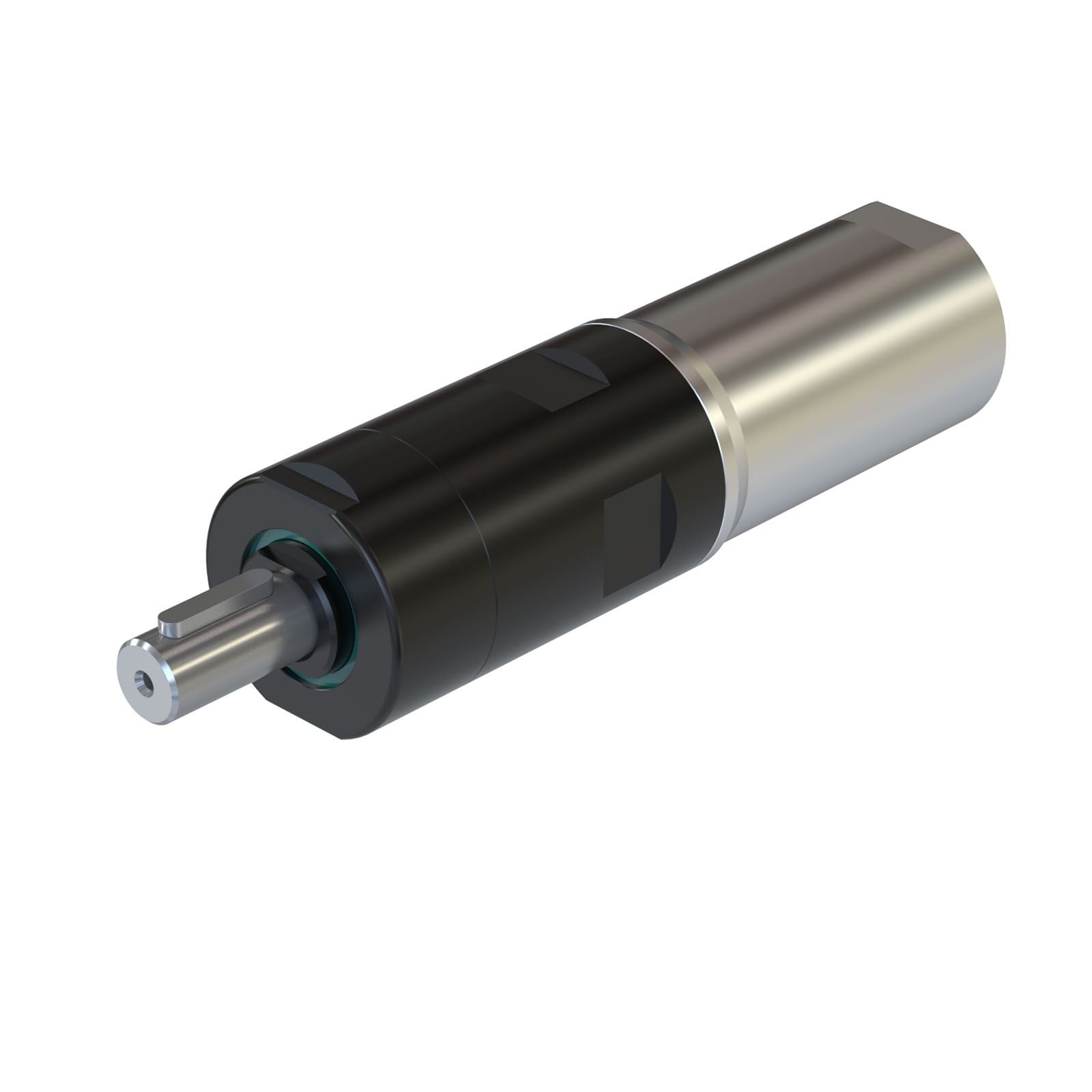

Atlas Copco LZB54-L-AV020-11 | LZB54 Vane Air Motor — Medium Speed, Counter-Clockwise, Lube-Free

Precision-engineered for maximum uptime in continuous-duty cycles, the Atlas Copco LZB54-L-AV020-11 is a medium speed LZB54 vane air motor delivering up to 1.2 kW (1.61 hp) at 6.3 bar (91 psi). Counter-Clockwise rotation. Standard Keyed Shaft.

Performance at a Glance

This medium speed variant runs in the 800–3,000 RPM range at peak output — engineered for mixing, packaging, and moderate-torque process drives. Stall torque scales to 322 Nm at the low-speed end of the LZB54 range, giving the motor massive starting force even under full load.

Technical Specifications

Key Features

• Max Output Power: 1.2 kW (1.61 hp) at 6.3 bar (91 psi) — rated for continuous-duty operation in fixed-plant and automation environments
• Rotation: Counter-Clockwise—factory-set for consistent directional performance
• Lubrication-Free Vane Design: Lubrication-free vane material eliminates in-line air oilers and prevents lubricant contamination of your process or product — ideal for food, pharma, and clean manufacturing environments.
• ATEX Zone 1/21 Certified — Approved for hazardous gas and dust atmospheres up to +40°C (104°F) in fixture-mounted use (EU Directive 2014/34/EU). Safe for use in classified areas where electric motors are prohibited.
• Output Shaft — Standard Keyed Shaft: Direct integration into existing drive trains, couplings, sprockets, and IEC/NEMA machine interfaces
• Overload Safe: Stalls harmlessly under overload; self-starts when load is removed — no thermal protection, burnout risk, or electronic fault recovery needed
• Infinitely Variable Speed: Regulate output speed and torque via inlet pressure or flow control valve — no electronic drives or VFDs required
• Atlas Copco Quality: Designed and manufactured to ISO 9001 standards; global spare parts and service network with application engineering support

Ideal Applications

• Batch processing and precision filling lines
• Mixing and blending equipment for liquids and pastes
• Material handling and transfer conveyors
• Packaging and form-fill-seal machinery
• Hazardous area installations requiring ATEX Zone 1/21 certified pneumatic drives
• Environments where electric motors present ignition, EMI, or water ingress risks

The LZB54 series uses Atlas Copco's proven five-vane motor cell with zero-clearance design, maximising power-to-weight efficiency in a compact aluminium housing. Speed is infinitely variable by adjusting inlet pressure or flow — down to 50% of free speed — without mechanical governors or electronic drives. The linear torque-speed curve makes control predictable and repeatable across the full working range.

Operating pressure: 6.3 bar (91 psi). Air consumption at maximum output ranges across the LZB54 range based on speed code selection. For performance curves at other supply pressures, refer to pages 16–17 of the Atlas Copco 2026 Air Motor Catalogue.

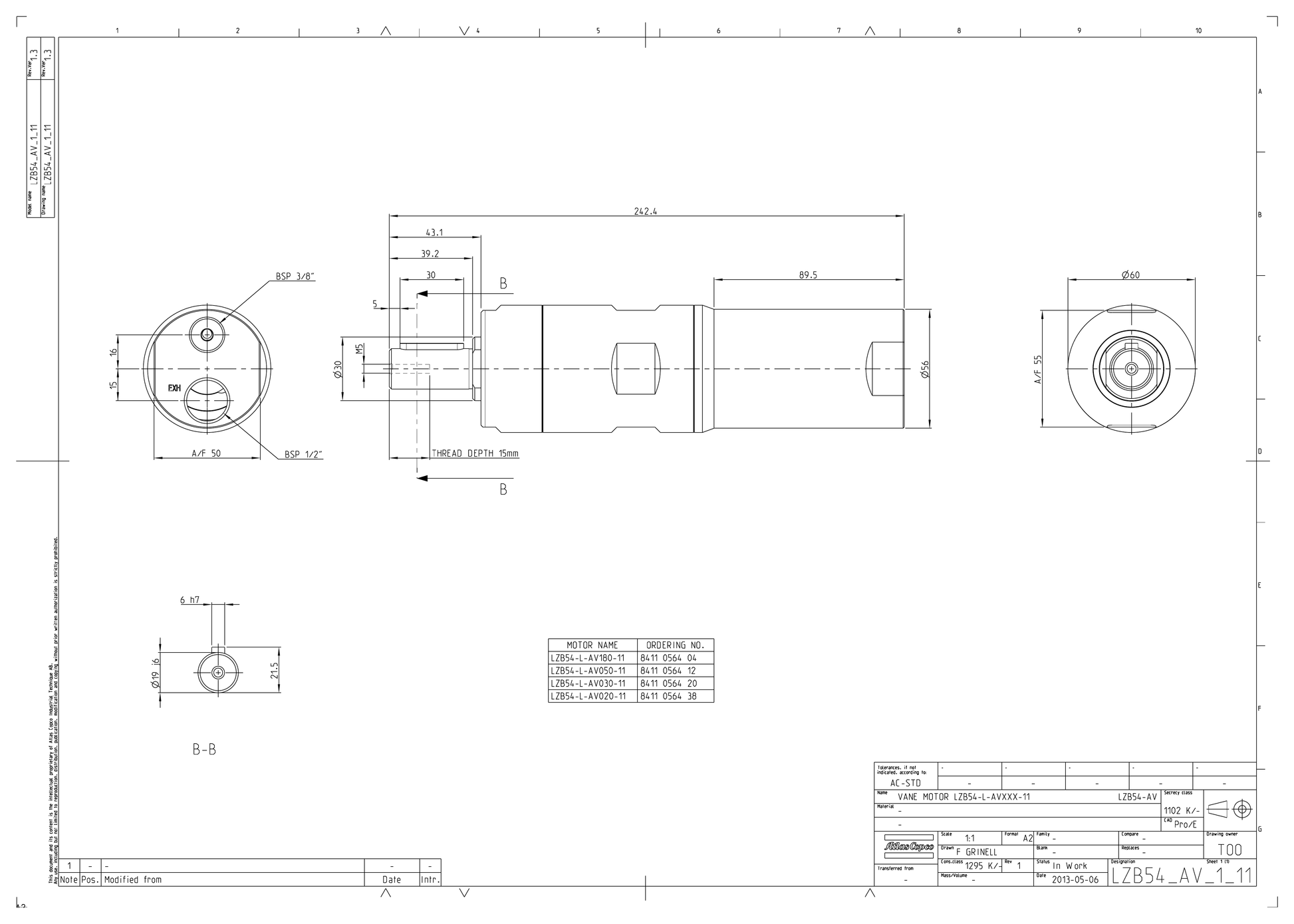

Part Number: LZB54-L-AV020-11  |  EDP: 8411056438  |  All data at 6.3 bar (91 psi). For full performance curves and dimensional drawings, see the Atlas Copco 2026 Industrial Air Motor Catalogue.
