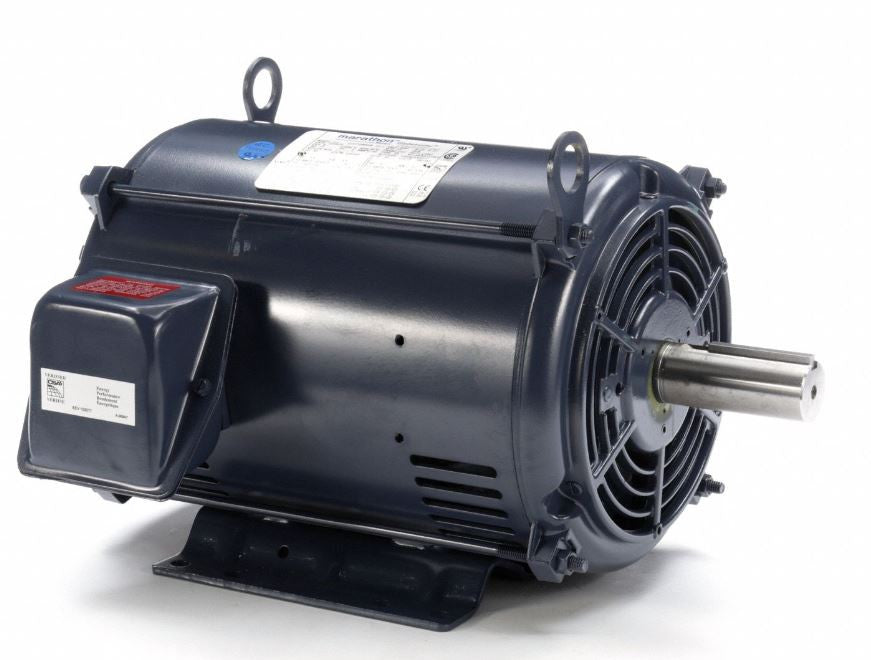

Leeson 7.5 HP Three-Phase ODP Motor, 213T Frame, 1760 RPM, 208-230/460V
Leeson catalog number 170142.60, model C213T17DB44: a 7.5 HP three-phase open drip-proof motor on a 213T cast iron rigid base, 1760 RPM, triple voltage 208-230/460V. Cast iron construction makes this a heavier, more rigid frame than the rolled steel motors in the same horsepower class.
Key specifications
- Horsepower: 7.5 HP (5.6 kW)
- Speed: 1760 RPM (1800 RPM synchronous)
- Phase and frequency: three phase, 60 Hz. Also rated 190/380V at 50 Hz
- Frame: 213T, cast iron, rigid base
- Voltage: 208-230/460V
- Full load amps: 19.8 A at 230V
- Service factor: 1.15
- Enclosure: ODP, open drip-proof
- Insulation class: F, continuous duty, 40 C maximum ambient
- NEMA design B, KVA code J
- Efficiency: 91.0% at full load, power factor 78
- Shaft: 1-3/8 in. diameter, keyed
- Bearings: 6308 drive end, 6208 opposite drive end, double shielded ball, Polyrex EM grease
- Weight: approximately 160 to 163 lb
- C dimension: 16.38 in.
- Thermal protection: none fitted
- Rotation reversible, inverter rated. Approvals: UL, CSA, CE
- Leeson catalog number 170142.60, model C213T17DB44. Marathon equivalent: GT0016A, model 213TTDBD6026
Wiring and protection
No thermal protector is fitted, so use a correctly sized magnetic starter with overload heaters. This is a triple voltage winding, so confirm the lead connection matches your supply before energising.
Typical applications
General purpose three-phase drive duty including air compressors, pumps and conveyors in clean, dry indoor environments. Open drip-proof construction is not suitable for washdown, dusty or outdoor installations.
Regal Rexnord owns both the Leeson and Marathon motor brands and has been superseding discontinued Leeson motors with Marathon equivalents, so this part may arrive as the Leeson 170142.60 or as the Marathon GT0016A. This is a freight-only item. Supplied by AirComParts as part number J5053.
NOTE: Actual product may be different from pictured!
