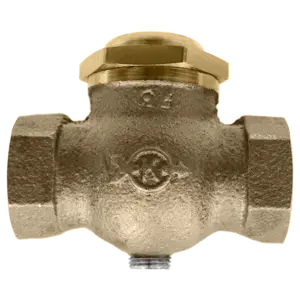

Kingston 215A Horizontal In-Line Brass Check Valve — FNPT x FNPT, 250 PSI
The Kingston 215A is a spring-loaded brass check valve designed for in-line installation in horizontal compressed-air and gas lines. It allows free flow in one direction and seats automatically to prevent reverse flow, protecting compressors, dryers, and downstream equipment from backflow and pressure loss.
Both ports are female NPT (FNPT x FNPT) for straightforward in-line piping. A precision-machined brass body, 25% glass-filled PTFE disc, and stainless steel spring deliver reliable, repeatable sealing in lubricated and non-lubricated service. The 3/8" and 1/2" sizes include a plugged 1/8" bleeder port.
Key specifications
- Series: Kingston 215A horizontal in-line check valve
- Orientation: Horizontal, in-line
- Connections: FNPT x FNPT (female NPT both ends)
- Available sizes: 1/4", 3/8", 1/2"
- Body material: Brass
- Internals: 25% glass-filled PTFE disc, stainless steel spring
- Pressure rating: up to 250 PSI
- Temperature range: 0°F to 350°F
- Service: Lubricated and non-lubricated compressed air and gas
Applications
Air compressors, air dryers, receiver tanks, and general compressed-air and gas distribution lines where dependable backflow prevention is required.
The Kingston 215A horizontal in-line brass check valve is a trusted choice for compressed-air systems, combining a rugged brass body with a spring-loaded PTFE seat for long, leak-tight service life. Select your port size below to match your existing NPT piping.
NOTE: Actual product may be different from pictured!
