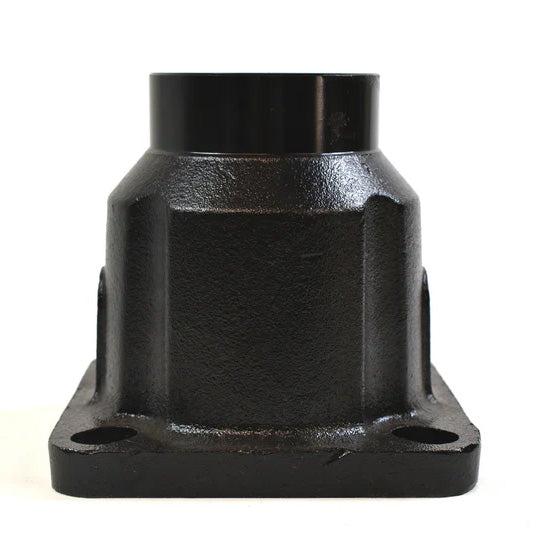

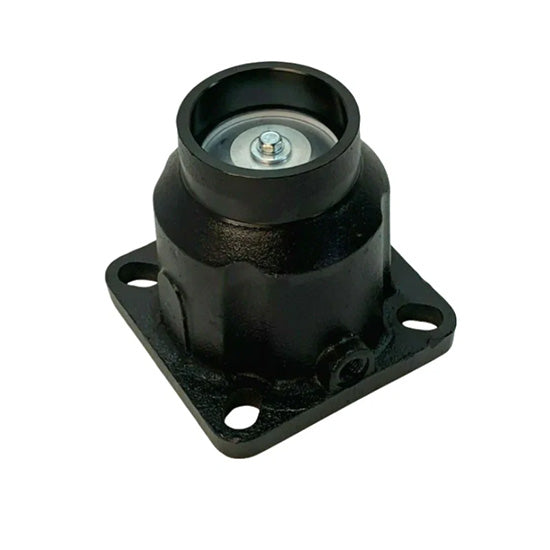

Conrader Intake Control Valve (ICV) — Custom Inlet Valve for Rotary Screw Air Compressors
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
IntakeControlValve
|
The Conrader Intake Control Valve (ICV) regulates the volume of free air drawn into a rotary screw air compressor, modulating between fully open, partially closed, and fully closed in response to system demand. An integrated check valve closes to prevent backflow through the air filter. Because every compressor has different inlet requirements, each ICV is built to your OEM specifications rather than sold off the shelf.
Key specifications
- Function: modulating inlet control valve with integrated check valve
- Configurations: straight-through and 90° designs
- Seat: PTFE for a resilient seal
- O-rings: Viton or Buna-N for lubricant compatibility
- Body: cast aluminum; aluminum, brass, and stainless steel components
- Modulation pressure: set to your application's requirements
- Inlet and outlet side ports available
- Maximum operating pressure: 250 PSI
- Operating temperature: -35°F to 250°F
- Flow passages designed for low pressure drop; compact footprint
OEM replacements
We can replace many popular OEM intake/inlet control valves from Gardner Denver, Atlas Copco, Quincy, Kaishan, Ingersoll Rand (IR), Palatek, and Sullair rotary screw compressors.
Build options
- Inlet and outlet connections sized to your needs
- Viton or Buna-N O-rings
- Anodized aluminum components
- Custom port configurations on request
Request a quote
An intake control valve is not a one-size-fits-all part — pricing and sizing depend on your compressor. To get an accurate quote, send us: (1) OEM part number, (2) compressor make & model, (3) cracking PSI, (4) thread size and type, (5) any additional side ports, and (6) a photo of the valve if available. Our team will follow up with a quote for your application.
The Conrader ICV is a durable, made-to-order inlet control valve for rotary screw air compressors, engineered for low pressure drop, reliable modulation up to 250 PSI, and direct replacement of common Gardner Denver, Atlas Copco, Quincy, Ingersoll Rand, and Sullair valves.
NOTE: Actual product may be different from pictured!
