THB Industrial Mid Flow Air Pressure Regulators - 7000 Series
| Specifications (As Configured) | |
|---|---|
 Vendor |
THB
|
 SKU |
R704
|
| Dimensions | |
 Weight |
1.0 lb
|

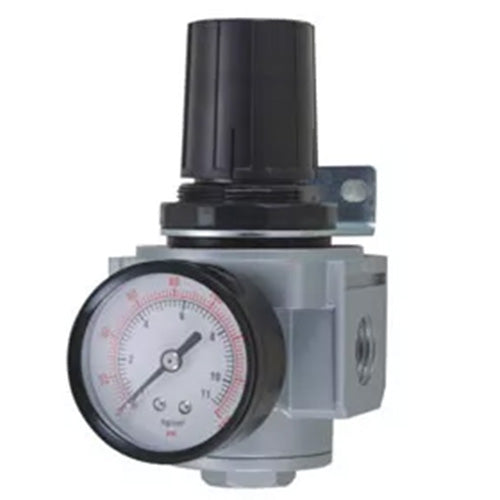

The THB 7000 Series industrial mid-flow air pressure regulator delivers precise, repeatable downstream pressure control for demanding shop and plant air systems. An air-line regulator reduces incoming supply pressure to a constant, lower working pressure — protecting downstream tools and equipment from excess torque, force and wear while eliminating the wasted compressed air that comes from over-pressurization. Running pneumatic equipment below its rated pressure causes it to underperform, so accurate regulation is essential to efficient, reliable operation.
Available in 1/2" NPT and 3/4" NPT port sizes, both rated for a 7-215 PSI adjustment range.
Key Specifications
- Pressure adjustment range: 7-215 PSI
- Maximum inlet pressure: 250 PSI
- Maximum regulated outlet pressure: 215 PSI
- Port sizes: 1/2" NPT or 3/4" NPT
- Push-lock adjustment knob with tamper lock-out
- 1/4" secondary gauge port on the backside of the manifold
- Back-mount pressure gauge included
- Wall-mounting bracket included
Standard Features
- Reverse-flow capable by inverting the regulator vertically
- Built-in safety lock-out — simply remove the knob to lock the setting (lock nut on T-handle series)
- Each unit ships with installation, operation and maintenance instructions
Typical Applications
Ideal for compressed-air distribution lines, pneumatic tool stations, production machinery, paint and finishing systems, and any application where a stable mid-flow working pressure must be maintained downstream of the supply.
The THB 7000 Series pairs rugged construction with the high flow capacity needed for industrial air systems, giving you dependable pressure regulation, easy gauge mounting, and simple wall installation in a single in-line unit.
NOTE: Actual product may be different from pictured!
