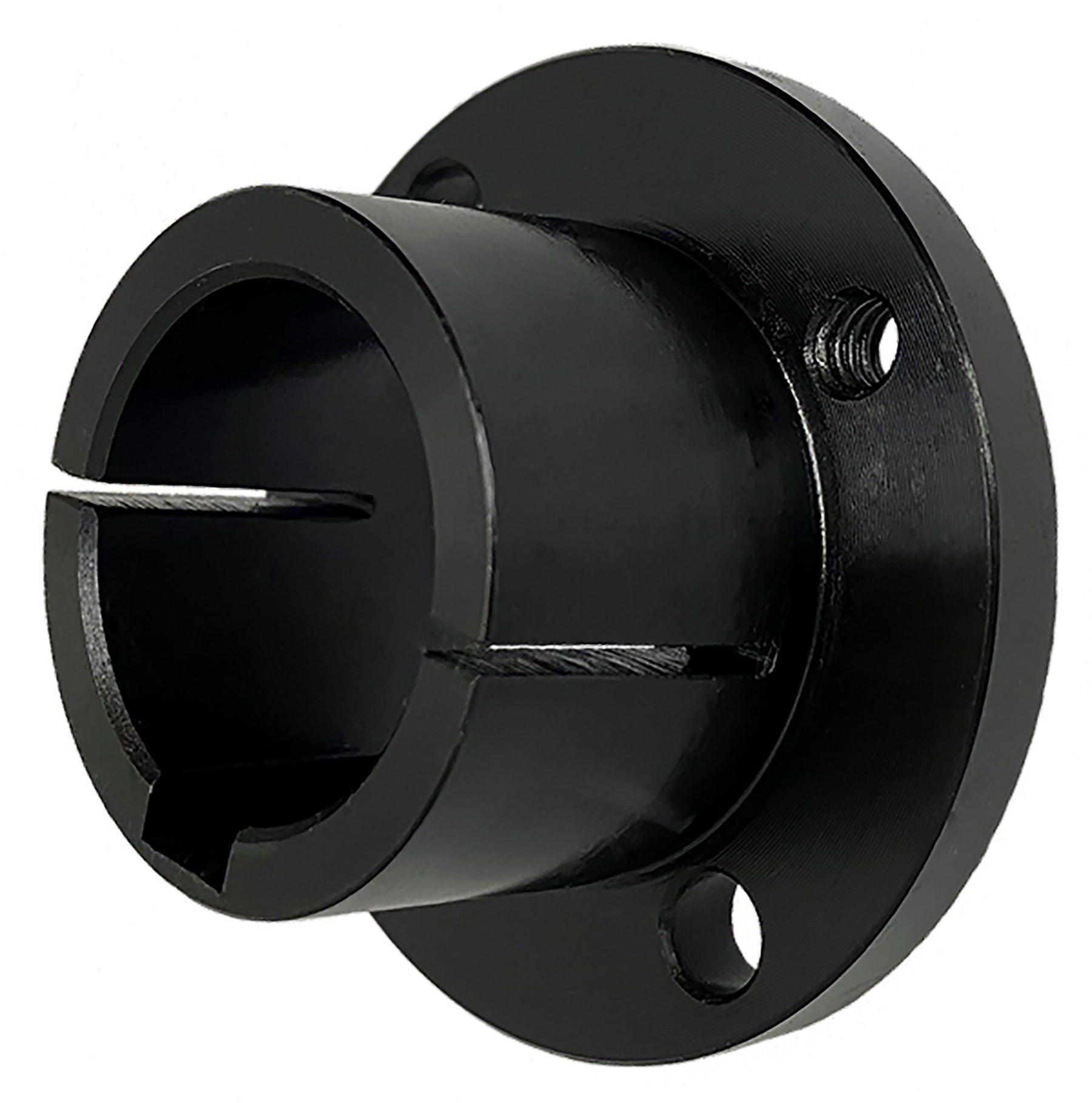

H-Style Split Taper Bushing — Keyed Bore for Sheaves & Pulleys
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
Hx1/2
|
The H-style split taper bushing is the mounting hub that locks an H-bore sheave, pulley, or sprocket onto a keyed shaft. Slide the bushing into the tapered bore of the component, seat it over the shaft, and tighten the cap screws — the split taper draws down evenly for a concentric, high-torque grip that resists slipping under load. Choose the bore that matches your shaft; every size shares the same standard H taper, so it drops into any H-style component.
Key specifications
- Type: H-style split taper bushing (keyed bore)
- Fits: standard H-style sheaves, V-belt pulleys, and sprockets
- Grip: split taper design for concentric, high-torque holding power
- Bore sizes: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-3/8", plus metric 20 mm and 28 mm
- Keyway: keyed bore to transmit torque without slipping
- Interchangeable with other standard H-series taper bushings
Typical applications
Used throughout power-transmission drives — mounting sheaves and pulleys on air compressor motors and belt drives, fans and blowers, conveyors, pumps, and sprocket-driven equipment. The keyed split-taper design makes installation and removal fast while keeping the driven component true on the shaft.
Select your shaft diameter from the bore options above. This H-style split taper bushing delivers a secure, concentric fit for sheaves, pulleys, and sprockets across standard imperial and metric shaft sizes.
NOTE: Actual product may be different from pictured!
