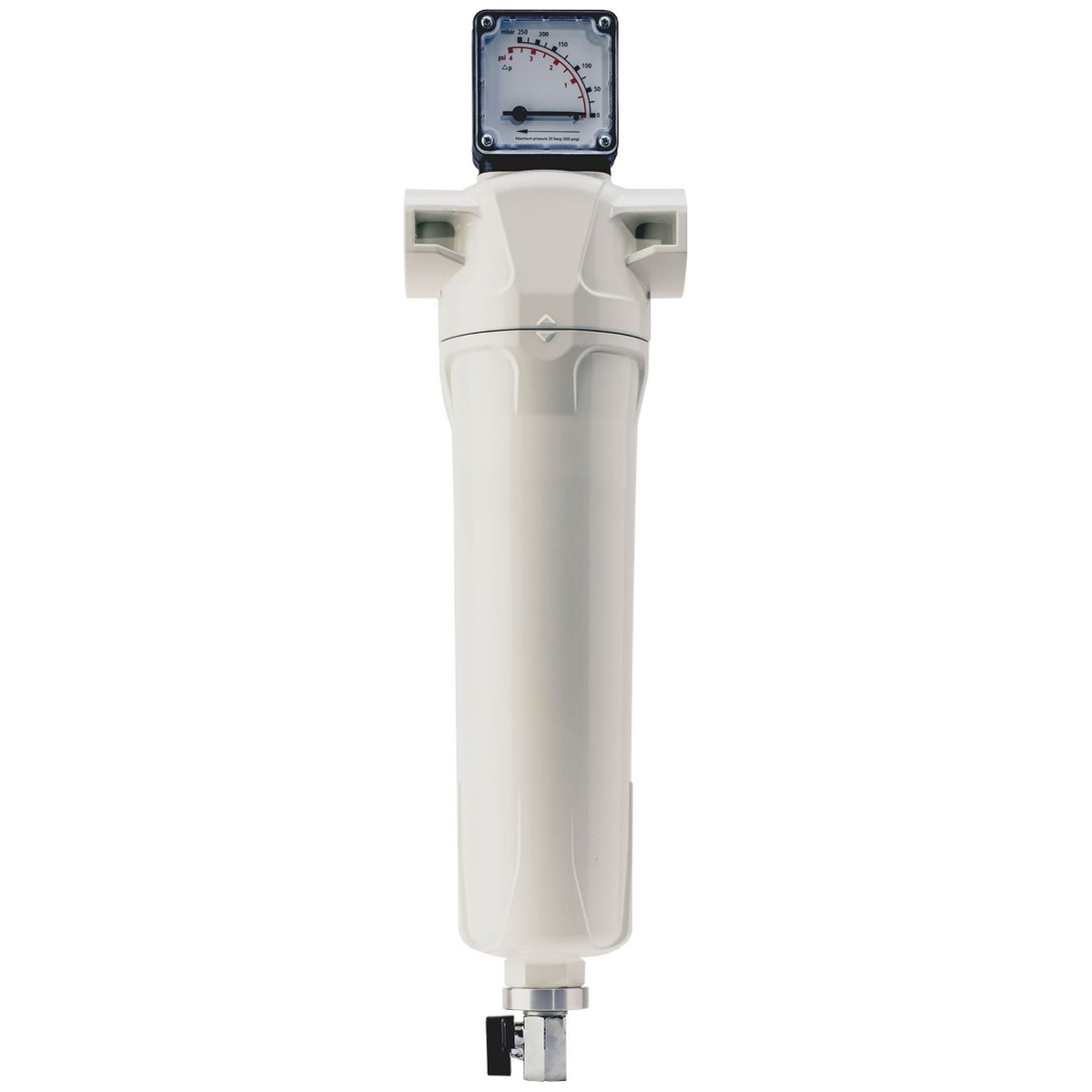

GMV Medical Vacuum Filter By Nano

The nano GMV Medical Vacuum Filter protects vacuum pumps and staff by removing solid, liquid, and bacterial contamination from medical vacuum systems before it can reach the pump or be exhausted into the surrounding environment. Built to the highest industry standards, including ISO 7396-1, HTM 02-01, and the 2018 revision of NFPA (5.1.3.7.4), the GMV range is the go-to choice for medical, dental, and veterinary vacuum applications. Each filter includes an easy-to-remove sterilizable drain flask and manual valve as standard, and the cast aluminum housing carries a 10-year warranty and is designed in accordance with ASME pressure vessel standards.

How to select your GMV filter

1. Size to your vacuum flow. Choose the model whose free aspirated air rating (1 to 125 SCFM) meets or exceeds your medical vacuum system demand.
2. Match the connection. GMV housings use 1/4" to 3" NPT (F) connections that scale with the flow rating.
3. Confirm the standard required. All models exceed HTM 02-01 (>99.995%) with >99.9999% efficiency at 0.01 micron and meet ISO 7396-1 and NFPA 2018.
4. Plan for element service. Replace the filter element every 6 months or 1000 hours to maintain performance.

Key features

• Removes airborne particles, bacteria, viruses, dust, oil vapors, and moisture from vacuum air
• >99.9999% filtration efficiency at 0.01 micron, exceeding HTM 02-01
• Meets ISO 7396-1, HTM 02-01, and NFPA 2018 (5.1.3.7.4)
• Oleophobic borosilicate microfiber media with open-cell reticulated foam prefilter
• Sterilizable, easy-to-remove drain flask and manual valve included as standard
• "Dead Stop" bowl feature for full closure without over-tightening
• Cast aluminum alloy housing with internal and external E-Coat finish for corrosion protection
• ASME-standard housing design with a 10-year housing warranty

Specifications

• Free aspirated air flow: 1 to 125 SCFM (at 9.2 psia)
• Connections: 1/4" to 3" NPT (F)
• Filtration: 0.01 micron, >99.9999% efficiency
• Design operating pressure: full vacuum to 7 psig
• Design operating temperature: 35 to 140°F
• Element life: 6 months or 1000 hours
• Standards: ISO 7396-1, HTM 02-01, NFPA 2018 (5.1.3.7.4), ASME pressure vessel design
• Warranty: housing 10 years; other components 18 months from shipment or 12 months from installation, whichever is first (100% parts)

Model reference (free aspirated air, connection)

• GMV 0025: 1 SCFM, 1/4" NPT
• GMV 0032: 2 SCFM, 3/8" NPT
• GMV 0050: 4 SCFM, 1/2" NPT
• GMV 0070: 7 SCFM, 1/2" NPT
• GMV 0085: 8 SCFM, 3/4" NPT
• GMV 0105: 10 SCFM, 1" NPT
• GMV 0175: 17 SCFM, 1" NPT
• GMV 0280: 34 SCFM, 1-1/4" NPT
• GMV 0325: 37 SCFM, 1-1/2" NPT
• GMV 0450: 39 SCFM, 2" NPT
• GMV 0700: 55 SCFM, 2" NPT
• GMV 0850: 93 SCFM, 2-1/2" NPT
• GMV 0900: 106 SCFM, 3" NPT
• GMV 1250: 118 SCFM, 3" NPT
• GMV 1500: 125 SCFM, 3" NPT

Ideal applications

• Hospital and surgical medical vacuum systems
• Operating rooms and intensive care units
• Dental vacuum and suction systems
• Veterinary hospitals and clinics
• Laboratory and analytical vacuum systems

Frequently asked questions

What does a medical vacuum filter do? It removes dust, bacteria, viruses, and particulate from the vacuum system so contaminated air is not drawn into the pump or exhausted into the facility, protecting both patients and staff.

What is the filtration rating? The GMV range filters to 0.01 micron with greater than 99.9999% efficiency, exceeding the HTM 02-01 requirement of greater than 99.995%.

How often is the element replaced? Replace the filter element every 6 months or 1000 hours, whichever comes first.

Is the drain flask reusable? Yes. The drain flask is easily removable and can be sterilized for repeated use.

What standards does it meet? The GMV range meets ISO 7396-1, HTM 02-01, and the 2018 revision of NFPA (5.1.3.7.4), and the housing is designed to ASME pressure vessel standards.
