FNPT x FNPT Brass Full Flow Locking Ball Valve
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
FBV-25-L
|
| Dimensions | |
 Weight |
1.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|

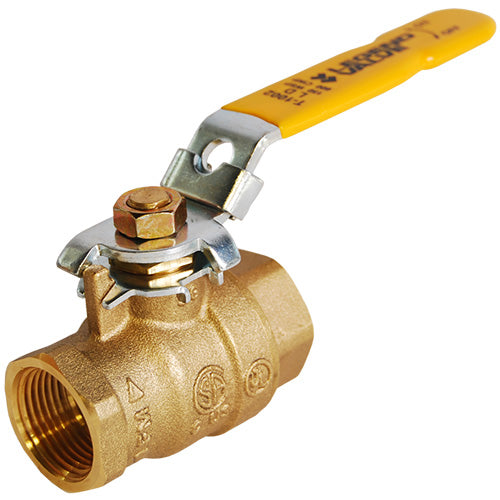

The FNPT x FNPT brass full flow locking ball valve delivers reliable, leak-tight shutoff for compressed air, water, oil, and gas lines. Its full-port (full flow) design maximizes flow capacity and minimizes pressure drop, while the locking handle secures the valve in either the open or closed position — ideal for lockout/tagout and tamper resistance.
Built from forged brass with a dual-flow chrome-plated brass ball, each valve operates with a smooth 1/4-turn action and a blow-out-proof stem. Female NPT threads on both ends (FNPT x FNPT) make installation straightforward across a wide range of pneumatic and fluid applications.
Key Specifications
- Configuration: full port (full flow), FNPT x FNPT
- Pressure rating: 600 WOG (water, oil, gas)
- Body: forged brass; ball: dual-flow chrome-plated brass
- Operation: 1/4-turn open/close with locking handle (locks in open & closed positions)
- Temperature range: -20°F to 300°F
- Stem: blow-out proof
- UL stamped; not lead-free (not for potable water)
- Available sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" NPT
Applications
Air compressor systems, shop air lines, tank and receiver isolation, water and fluid shutoff, and any line where a lockable, full-flow brass shutoff valve is required.
Select your NPT size above. Each valve offers durable forged-brass construction and dependable 1/4-turn locking operation for years of service in demanding air and fluid systems.
NOTE: Actual product may be different from pictured!
