FLANGE CONNECTOR
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
PPS1 UF100
|
| Dimensions | |
 Weight |
7.12 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|

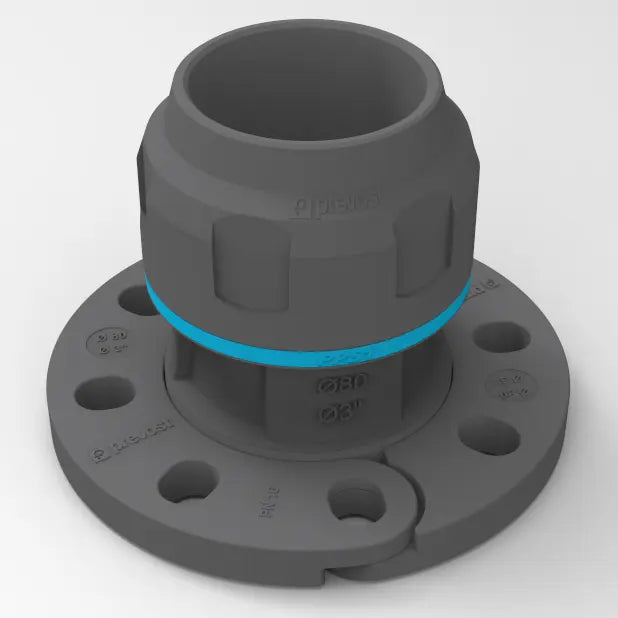

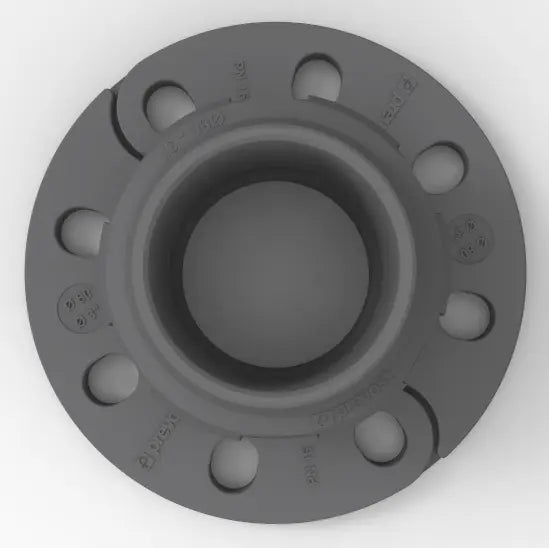

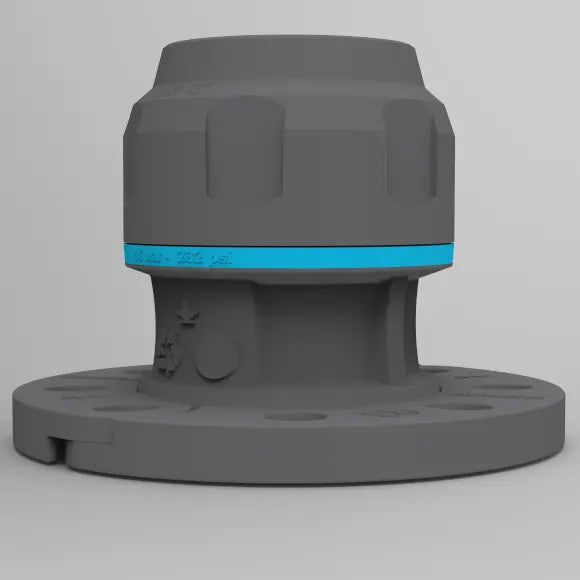

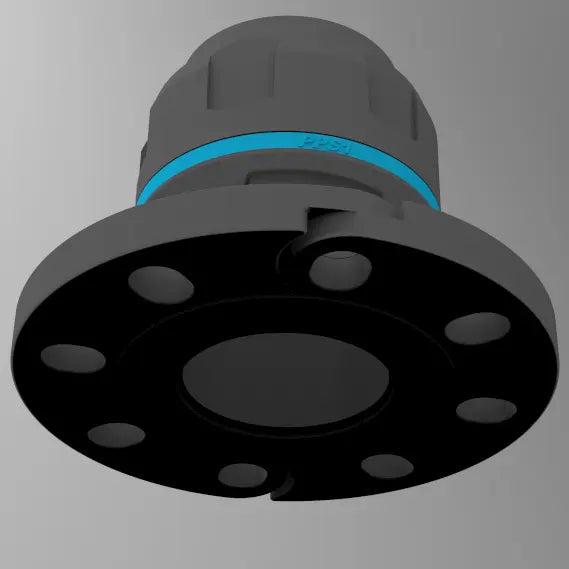

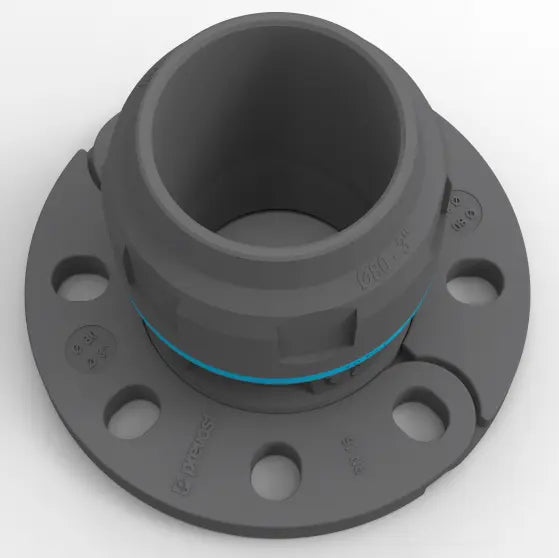

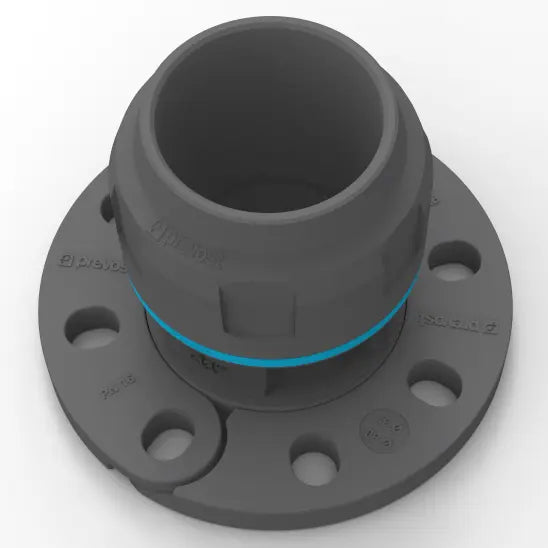

Prevost Flange Connector, PPS1 UF Straight Aluminum Fitting with Flange
The Prevost Flange Connector is a straight aluminum fitting with flange designed for use in Prevost PPS compressed air piping systems. Built for industrial air distribution networks, this fitting provides a clean, durable, and professional connection point for larger diameter aluminum compressed air pipe. It is made for facilities that need reliable air delivery, a secure connection, and a piping system that can be serviced or expanded without the drawbacks of traditional black iron piping.
This flange connector is part of the Prevost PPS 100% aluminum network, a modular compressed air piping system known for fast installation, corrosion resistance, strong flow performance, and long-term durability. The PPS1 UF flange connector is used where a flanged connection is required in a Prevost aluminum air pipe layout, making it a practical component for compressor rooms, main distribution lines, machine feeds, and high-flow industrial air systems.
Industrial Aluminum Construction
The Prevost PPS1 UF flange connector is built from aluminum to match the strength, weight savings, and corrosion resistance of the PPS piping system. Aluminum fittings help avoid internal rust, scale, and contamination that can occur with older steel piping systems. That matters in compressed air networks because the quality of the pipework directly affects pressure stability, air cleanliness, downstream equipment protection, and overall system efficiency.
Prevost PPS fittings are designed around a compact, lightweight, professional-grade construction. The system is intended for compressed air, vacuum, and neutral gases, giving shops and production facilities a cleaner, more modern alternative to threaded metal pipe. When paired with the correct Prevost PPS pipe size, this flange connector helps maintain a sealed, high-flow connection while keeping the installation neat and serviceable.
Key Features
- Genuine Prevost flange connector for PPS compressed air piping systems
- Straight aluminum fitting with flange design
- Built for larger Prevost PPS pipe diameters
- Available for 2", 2 1/2", 3", and 4" pipe OD configurations
- Lightweight aluminum construction compared to traditional steel fittings
- Designed for clean, high-quality compressed air distribution
- Supports a sealed system with optimized flow
- Suitable for industrial compressed air, vacuum, and neutral gas applications
- Works with the Prevost PPS Grip Concept for a secure connection
- Helps reduce pressure loss when installed as part of a properly designed PPS air network
- Designed for fast, professional compressed air piping installation
Available PPS1 UF Flange Connector Sizes
Select the correct option based on the outside diameter of the Prevost PPS pipe in your system.
- PPS1 UFC50, for 2" pipe OD with 2" flange size
- PPS1 UFC63, for 2 1/2" pipe OD with 2 1/2" flange size
- PPS1 UFC80, for 3" pipe OD with 3" flange size
- PPS1 UF100, for 4" pipe OD with 4" flange size
Each option is sold individually and is intended to be matched to the corresponding Prevost PPS pipe size. The configured product listing shows PPS1 UF100 with a 4" pipe OD and 4" flange size, with an approximate listed weight of 7.12 lb.
Built for Prevost PPS Compressed Air Networks
The Prevost Piping System is designed to create a clean, durable, and efficient compressed air network. Unlike black iron pipe, aluminum PPS pipe and fittings resist corrosion and help maintain a cleaner internal air path. The smooth interior of the system supports laminar airflow and reduced friction, which can help reduce pressure drop throughout the network.
That makes the Prevost flange connector a strong fit for shops and plants where consistent air pressure matters. Air tools, production equipment, pneumatic controls, packaging lines, automotive service bays, and general industrial workstations all depend on reliable air delivery. A weak or poorly matched connection in the main air line can create leaks, pressure loss, and maintenance headaches. The PPS1 UF connector is designed to avoid those problems when installed correctly within a compatible Prevost PPS system.
Performance Range
The Prevost PPS system is engineered for demanding compressed air environments. The system supports an operating pressure range from vacuum service up to 232 psi and a temperature range from -4°F to 176°F. This gives the PPS1 UF flange connector the range needed for most industrial compressed air piping layouts, including compressor room connections, air distribution headers, and branch sections where a flanged aluminum fitting is required.
Why Choose a Prevost Flange Connector?
A flange connector is not just a connection point. It is part of the structure that keeps the compressed air network sealed, aligned, and efficient. Choosing a genuine Prevost PPS flange fitting helps maintain compatibility with the rest of the system and reduces the chance of mismatched components creating avoidable leaks or pressure loss.
The PPS1 UF design is especially useful in larger diameter air piping layouts where a secure flanged transition is needed. It gives installers a cleaner and more modular alternative to heavy threaded piping methods, while keeping the system aligned with the Prevost PPS aluminum air pipe platform.
Best Uses
- Compressor room piping
- Main compressed air headers
- Industrial aluminum air piping networks
- High-flow air distribution systems
- PPS pipe runs requiring a flanged connection
- Manufacturing and production air systems
- Automotive and maintenance shop compressed air layouts
- Pneumatic equipment supply lines
Installation Notes
For best results, match the flange connector to the correct Prevost PPS pipe outside diameter. This fitting is intended for use with compatible Prevost PPS aluminum pipe and related PPS components. Proper pipe preparation, alignment, and tightening are important for maintaining a secure seal and dependable airflow.
The Prevost Flange Connector gives your compressed air system a durable, clean, and professional-grade connection point. For facilities building or expanding a Prevost PPS aluminum piping network, the PPS1 UF straight aluminum fitting with flange is a reliable component for larger air line connections where strength, fit, and flow performance matter.
| SKU | Pipe OD | Flange Size | Max Pressure | Temperature Range | Dim. A | Dim. B | Net Weight |
|---|---|---|---|---|---|---|---|
| PPS1 UFC50 | 2" | 2" | 232 psi | -4°F to 176°F | 6.50" | 4.13" | 2.75 lb |
| PPS1 UFC63 | 2 1/2" | 2 1/2" | 232 psi | -4°F to 176°F | 7.28" | 4.84" | 3.79 lb |
| PPS1 UFC80 | 3" | 3" | 232 psi | -4°F to 176°F | 7.87" | 5.63" | 5.29 lb |
| PPS1 UF100 | 4" | 4" | 232 psi | -4°F to 176°F | 8.98" | 5.77" | 7.12 lb |
NOTE: Actual product may be different from pictured!
