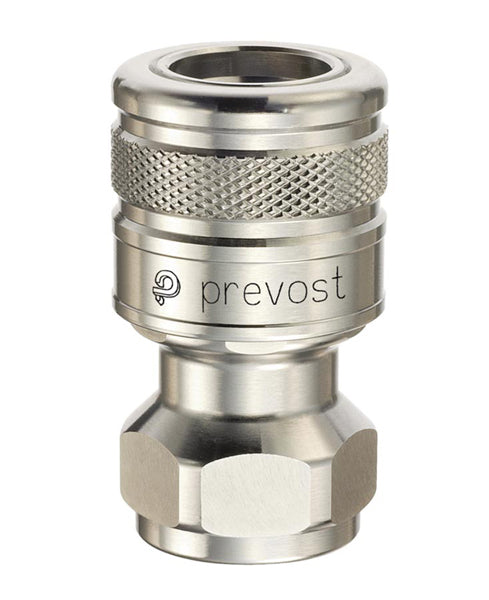

Female Unvalved Coupler 3/4" Body by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
ELS 090204
|
| Dimensions | |
 Weight |
0.48 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
The Prevost ELS 090204 is the coupler half of Prevost's water system in a 3/4 in body, threaded 3/4 in FNPT. Being unvalved, it flows straight through with no internal valve to restrict it, so you get the full 8.85 GPM rather than the reduced rate a valved coupling gives. The trade-off is that the line drains when you disconnect, which is usually fine on a wash line and not what you want on a pressurised feed.
Note: must be ordered in quantities of 5.
Technical specifications
- Reference: ELS 090204
- Thread: 3/4″ FNPT
- Type: Unvalved (straight through)
- Operating pressure: 0 to 145 psi
- Flow rate: 8.85 GPM (straight-through coupling, delta P = 4.35 psi)
- ID passage: 9 mm
- Temperature: 5°F to 140°F
- Construction: Brass body
| A (inch) | B (inch) | C (mm) | Reference |
|---|---|---|---|
| 2.402 | 1.378 | 30 | ELS 090204 |
NOTE: Actual product may be different from pictured!
