1, 2, 4, 6, 8, or 10 connections - coupler and drain - Stainless Steel Body
Female thread wall manifold - coupler and drain - Stainless Steel

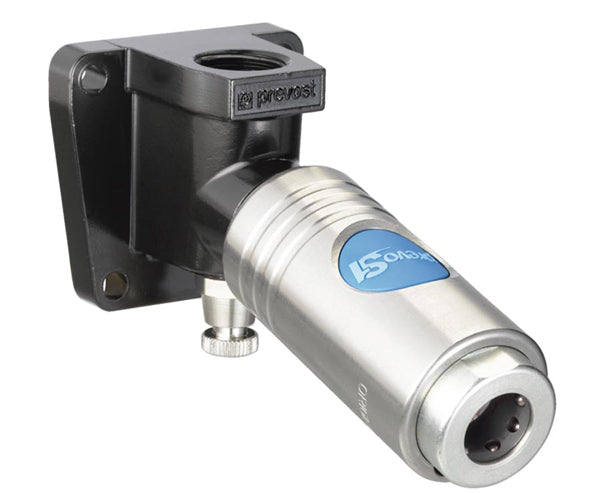

FEMALE THREAD SINGLE WALL MANIFOLD – 1 COUPLER AND DRAIN – 1/2″ INDUSTRIAL INTERCHANGE
Technical specifications
Technology :“One push” safety system (avoids hose whip)
Operating pressure :29 to 174 psi
Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
ID Passage :1/2″ body size
Temperature : 5 deg. F to 158 deg. F
Construction :Aluminium alloy
Highlight :Non scratch Anti-static
Equipped with :Manual drain
Inlet NPT female thread Outlet 1 coupling Reference 1/2″ FNPT ISI 11 ISI 111203WK

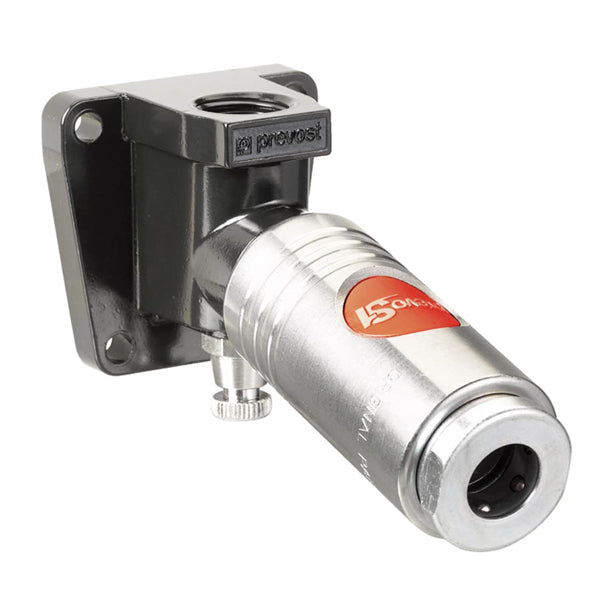

FEMALE THREAD SINGLE WALL MANIFOLD – 1 COUPLER AND DRAIN – 1/2″ AUTOMOTIVE INTERCHANGE
Technical specifications
Technology :”One push” safety system (avoids hose whip)
Operating pressure :29 to 174 psi
Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
ID Passage :1/2″ body size
Temperature : 5 deg. F to 158 deg. F
Construction :Aluminium alloy
Highlight :Non scratch Anti-static
Equipped with :Manual drain

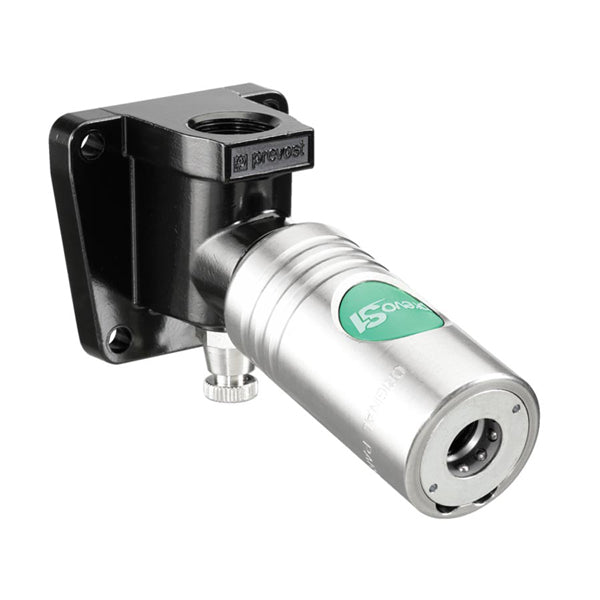

FEMALE THREAD SINGLE WALL MANIFOLD – 1 COUPLER AND DRAIN – 1/2″ HIGH FLOW INTERCHANGE
Technical specifications
Technology :”One push” safety system (avoids hose whip)
Operating pressure :29 to 174 psi
Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
ID Passage :1/2″ body size
Temperature : 5 deg. F to 158 deg. F
Construction :Aluminium alloy
Highlight :Non scratch Anti-static
Equipped with :Manual drain
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
Reference
2.008
1.969
1.496
2.48
0.256
ISI 111203WK

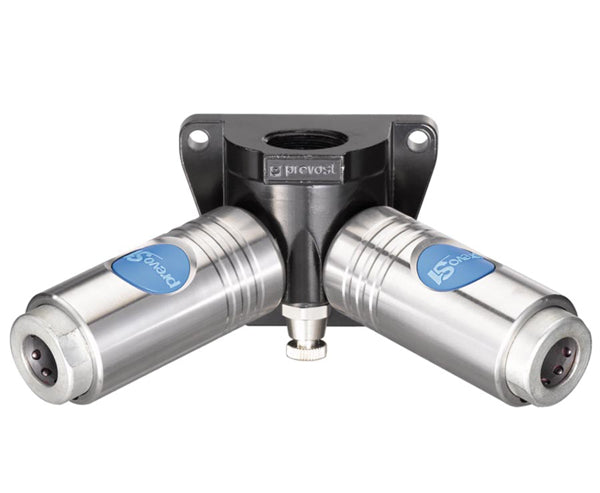

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 1/2″ INDUSTRIAL INTERCHANGE
Technical specifications
Technology :“One push” safety system (avoids hose whip)
Operating pressure :29 to 174 psi
Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
ID Passage :1/2” body size
Temperature : 5 deg. F to 158 deg. F
Construction: Aluminium alloy
Highlight :Non scratch Anti-static
Equipped with :Manual drain
Inlet NPT female thread Outlet 2 couplings Reference 3/4″ FNPT ISI 11 ISI 118204WK

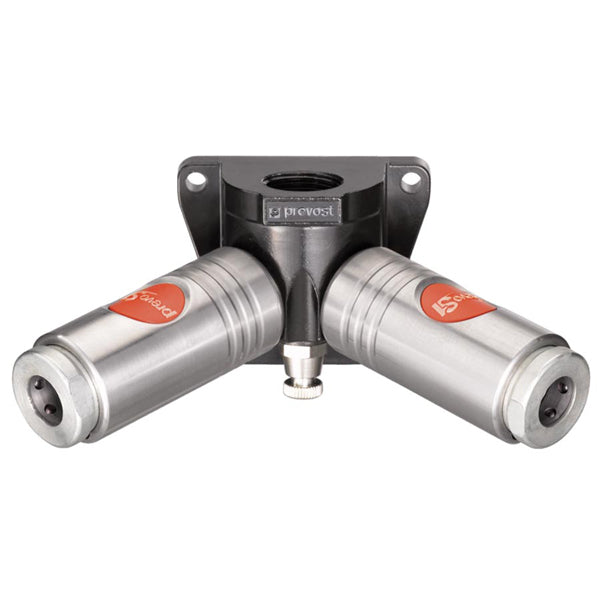

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 1/2″ AUTOMOTIVE INTERCHANGE
Technical specifications
Technology :”One push” safety system (avoids hose whip)
Operating pressure :29 to 174 psi
Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
ID Passage :1/2″ body size
Temperature : 5 deg. F to 158 deg. F
Construction :Aluminium alloy
Highlight :Non scratch Anti-static
Equipped with :Manual drain

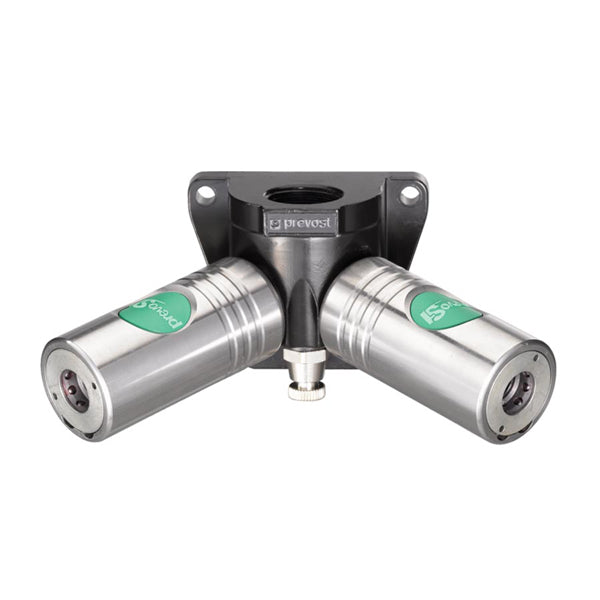

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 1/2″ HIGH FLOW INTERCHANGE
Technical specifications
Technology :”One push” safety system (avoids hose whip)
Operating pressure :29 to 174 psi
Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
ID Passage :1/2″ body size
Temperature : 5 deg. F to 158 deg. F
Construction :Aluminium alloy
Highlight :Non scratch Anti-static
Equipped with :Manual drain
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
Reference
2.795
2.244
1.496
2.756
0.256
ISI 118204WK
