Save 7%

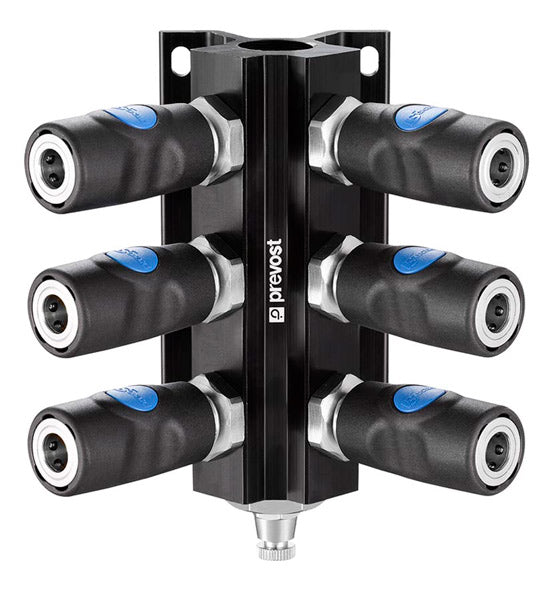

Wall Manifold With Industrial Couplers by Prevost For Aluminum Air Pipe
Wall Manifold With Industrial Couplers by Prevost For Aluminum Air Pipe
Regular price
$52.16
Sale price
$52.16
Regular price
$56.09
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
ISI 061203WK
|
| Dimensions | |
 Weight |
1.02 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
1, 2, 4, 6, 8, or 10 connections - coupler and drain - Industrial Profile
Technical specifications
Technical specifications
https://youtu.be/--silowEhMM?si=z2-e-nPza9oaDLf2

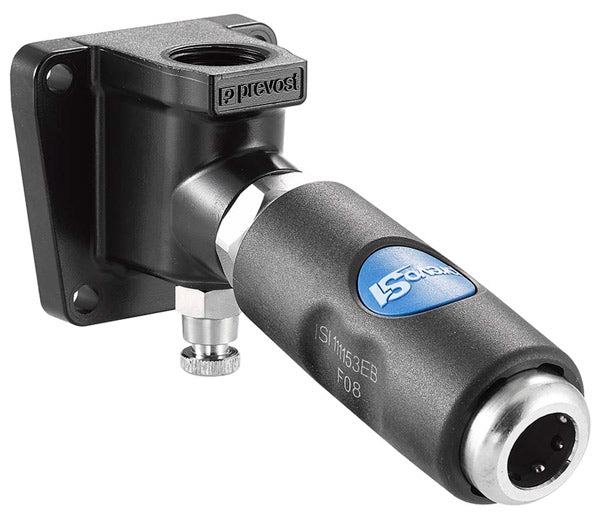

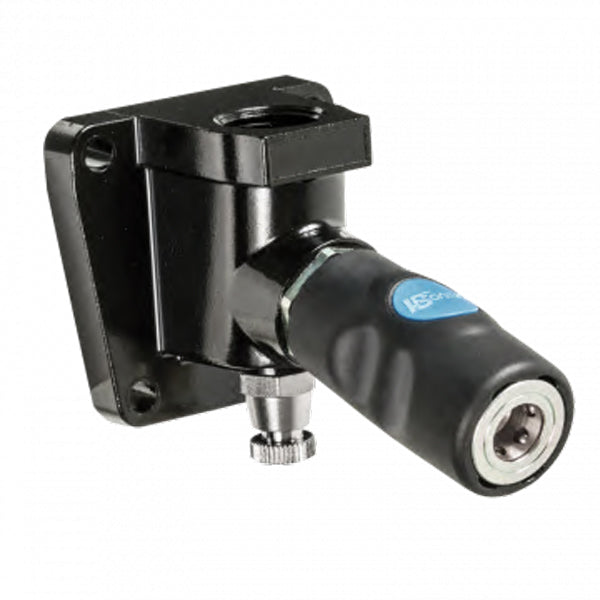

Female thread wall manifold - 1 coupler and drain - 1/4" Industrial Profile
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Aluminum alloy
- Highlight :Non scratch Anti-static
- Equipped with :Manual drain
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
|---|---|---|---|---|---|
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | ISI 068203WK |
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | ISI 068204WK |
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
|---|---|---|---|---|---|
| 3.071 | 5.315 | 2.48 | 3.15 | 0.256 | MF 204S4XX |
| 3.071 | 7.087 | 2.48 | 4.921 | 0.256 | MF 204S6XX |
| 3.071 | 8.858 | 2.48 | 6.693 | 0.256 | MF 204S8XX |
| 3.071 | 10.63 | 2.48 | 8.465 | 0.256 | MF 204S10XX |
https://youtu.be/--silowEhMM?si=z2-e-nPza9oaDLf2
NOTE: Actual product may be different from pictured!
