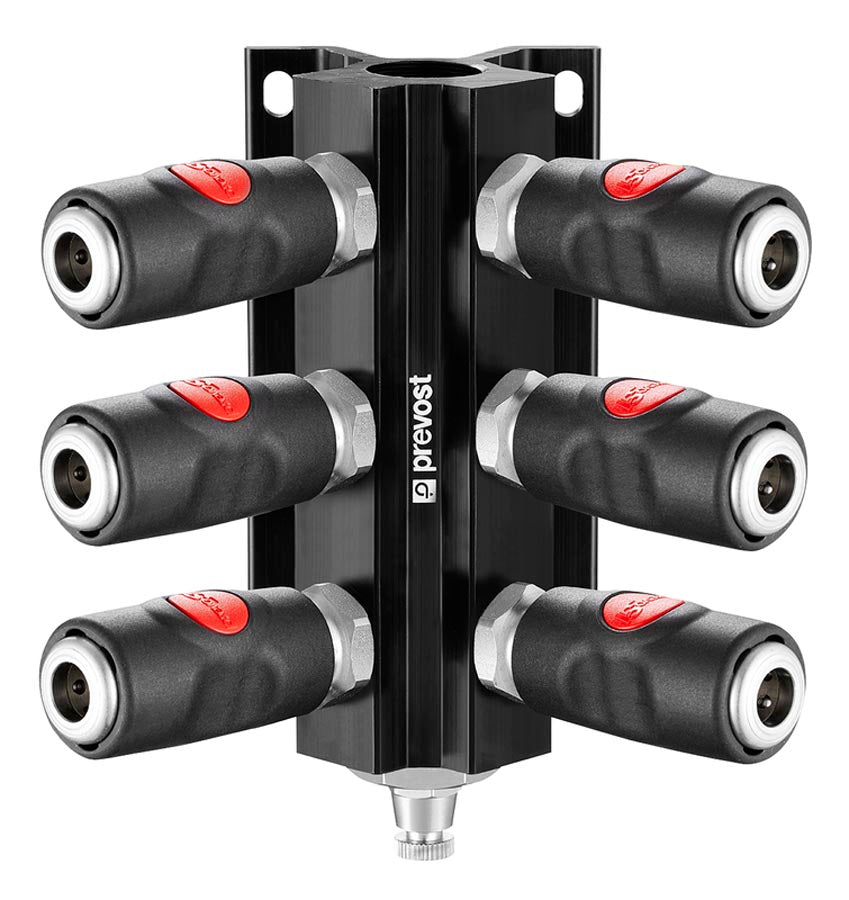

Wall Manifold With Automotive Couplers by Prevost For Aluminum Air Pipe
Wall Manifold With Automotive Couplers by Prevost For Aluminum Air Pipe
Regular price
$91.57
Sale price
$91.57
Regular price
$98.46
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
USI 111203EWK
|
1, 2, 4, 6, 8, or 10 connections - coupler and drain - Automotive Profile
Technical specifications
FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 1/4″ AUTOMOTIVE INTERCHANGE
Technical specifications
Technical specifications
https://youtu.be/--silowEhMM?si=z2-e-nPza9oaDLf2

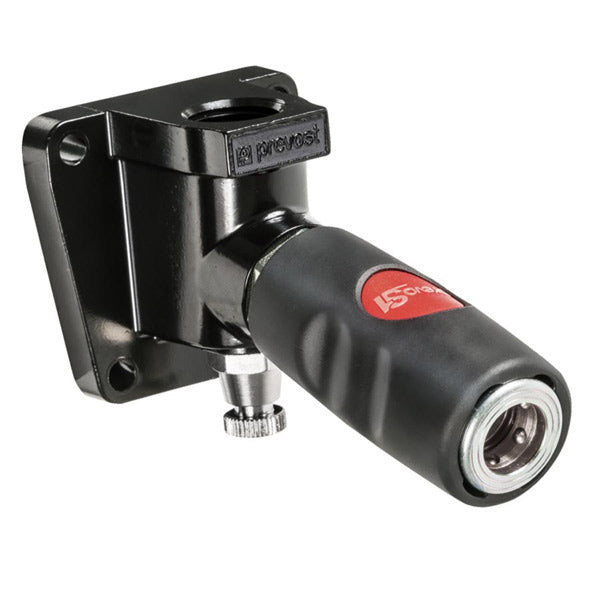

Female thread wall manifold - coupler and drain - Automotive Profile

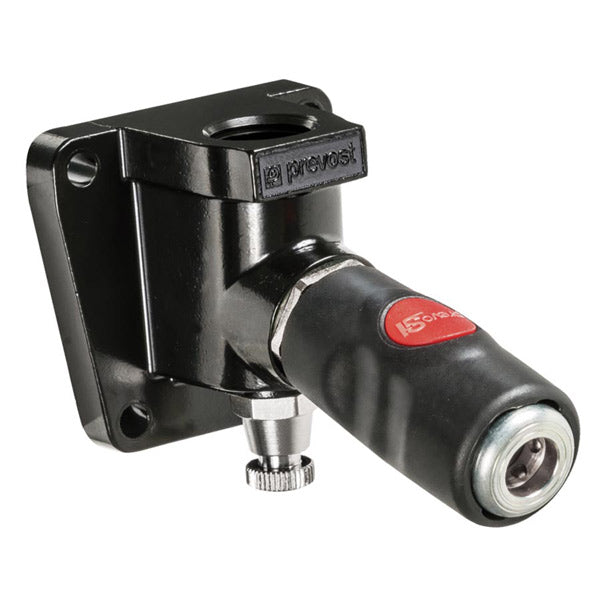

FEMALE THREAD SINGLE WALL MANIFOLD – 1 COUPLER AND DRAIN – 1/4″ AUTOMOTIVE INTERCHANGETechnical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction : Aluminum alloy
- Highlight :Non scratch Anti-static
- Equipped with :Manual drain
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
|---|---|---|---|---|---|
| 2.008 | 1.969 | 1.496 | 2.48 | 0.256 | USI 061203WK |

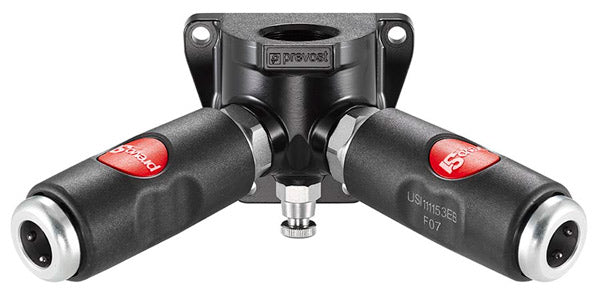

FEMALE THREAD DOUBLE WALL MANIFOLD – 2 COUPLERS AND DRAIN – 1/4″ AUTOMOTIVE INTERCHANGE
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Aluminium alloy
- Highlight :Non scratch Anti-static
- Equipped with :Manual drain
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
|---|---|---|---|---|---|
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | USI 068203WK |
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | USI 068204WK |
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
|---|---|---|---|---|---|
| 3.071 | 5.315 | 2.48 | 3.15 | 0.256 | MF 204S4XX |
| 3.071 | 7.087 | 2.48 | 4.921 | 0.256 | MF 204S6XX |
| 3.071 | 8.858 | 2.48 | 6.693 | 0.256 | MF 204S8XX |
| 3.071 | 10.63 | 2.48 | 8.465 | 0.256 | MF 204S10XX |
https://youtu.be/--silowEhMM?si=z2-e-nPza9oaDLf2
NOTE: Actual product may be different from pictured!
