Female Water Plug 3/4" FNPT by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
ELP 096204
|
| Dimensions | |
 Weight |
0.2 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|

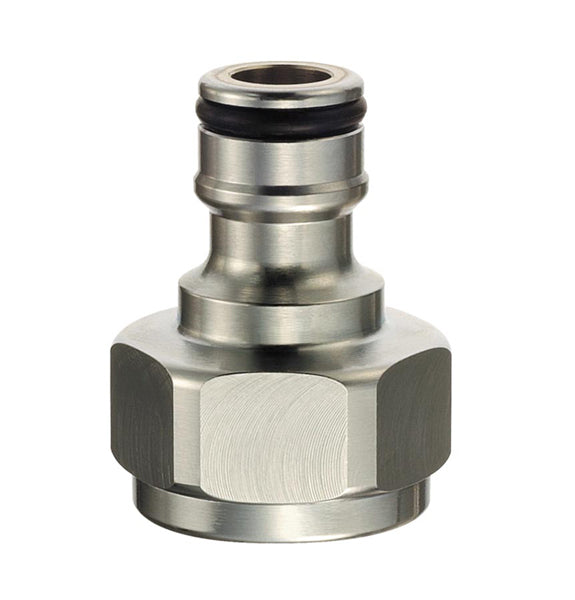

The Prevost ELP 096204 is the brass plug half of Prevost's water coupling system, threaded 3/4 in FNPT so it adapts a standard female pipe thread to a quick-connect water line. Fit it once to a hose end, spigot or manifold and you can connect and disconnect by hand from then on, with no tools and no thread tape.
Note: must be ordered in quantities of 10.
Technical specifications
- Reference: ELP 096204
- Thread: 3/4″ FNPT
- Operating pressure: 0 to 145 psi
- Flow rate: 6.34 GPM (valved coupling, delta P = 4.35 psi); 8.85 GPM (straight-through coupling)
- ID passage: 9 mm
- Temperature: 5°F to 140°F
- Construction: Brass body
| A (inch) | B (mm) | Reference |
|---|---|---|
| 1.654 | 30 | ELP 096204 |
NOTE: Actual product may be different from pictured!
