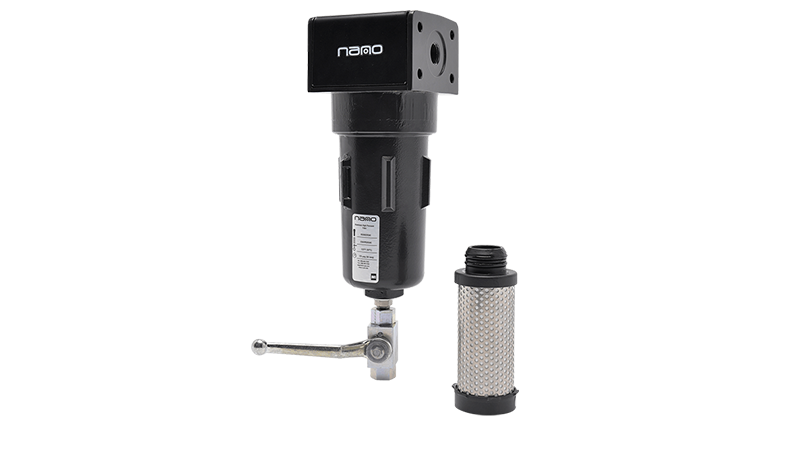

F3, 1.0 MICRON MID PRESSURE ELEMENT, 0147 HOUSINGS - E50HP0147M1
| Specifications (As Configured) | |
|---|---|
 Vendor |
Nano
|
 SKU |
2901020612
|
Old SKU |
|
| Dimensions | |
 Weight |
3.0 lb
|
This is a 1.0 micron (Grade M1) coalescing filter element for the nano-purification solutions F3 mid-pressure aluminum filter range, rated to 725 psig. It is the replacement element for the 0147 housing (3/8" NPT, 147 SCFM) and carries the OEM number E50HP0147M1.
Legacy vs. current part numbers (same element)
nano has superseded the older N50A mid-pressure aluminum range with the current G50N range. The two part numbers below refer to the same 3/8", ~150 SCFM, 1.0 micron, 725 psig mid-pressure aluminum element — just under the old and new naming generations:
- E50HP0147M1 — legacy code, for nano N50A 0147 housings (147 SCFM, 3/8" NPT)
- GE50HP0150M1 / GE50HP0030M1 — current-generation code, for nano G50N 0150 housings (150 SCFM, 3/8" NPT). nano’s current catalog lists the element as GE50HP0030; “0150” is the housing’s flow rating.
Both share the same connection (3/8" NPT), flow class (~147–150 SCFM), filtration grade (M1, 1.0 micron coalescing), pressure rating (725 psig) and die-cast aluminum construction, so they serve the same purpose.
Specifications
- Grade: M1 — 1.0 micron coalescing (0.1 ppm max oil carryover)
- Connection / flow: 3/8" NPT, ~147–150 SCFM
- Max design pressure: 725 psig
- Housing material: machined & die-cast aluminum
- Fits housings: nano N50A 0147 (legacy) and G50N 0150 (current)
Note on housings: N50A and G50N are different housing generations. The element is a push-fit design with dual O-ring seals matched to its housing, so order to match the housing you actually have. If you’re unsure which generation you own, send us your housing model or a photo of the data label and we’ll confirm the correct element. Questions? Call or text 864-894-1400.
NOTE: Actual product may be different from pictured!
