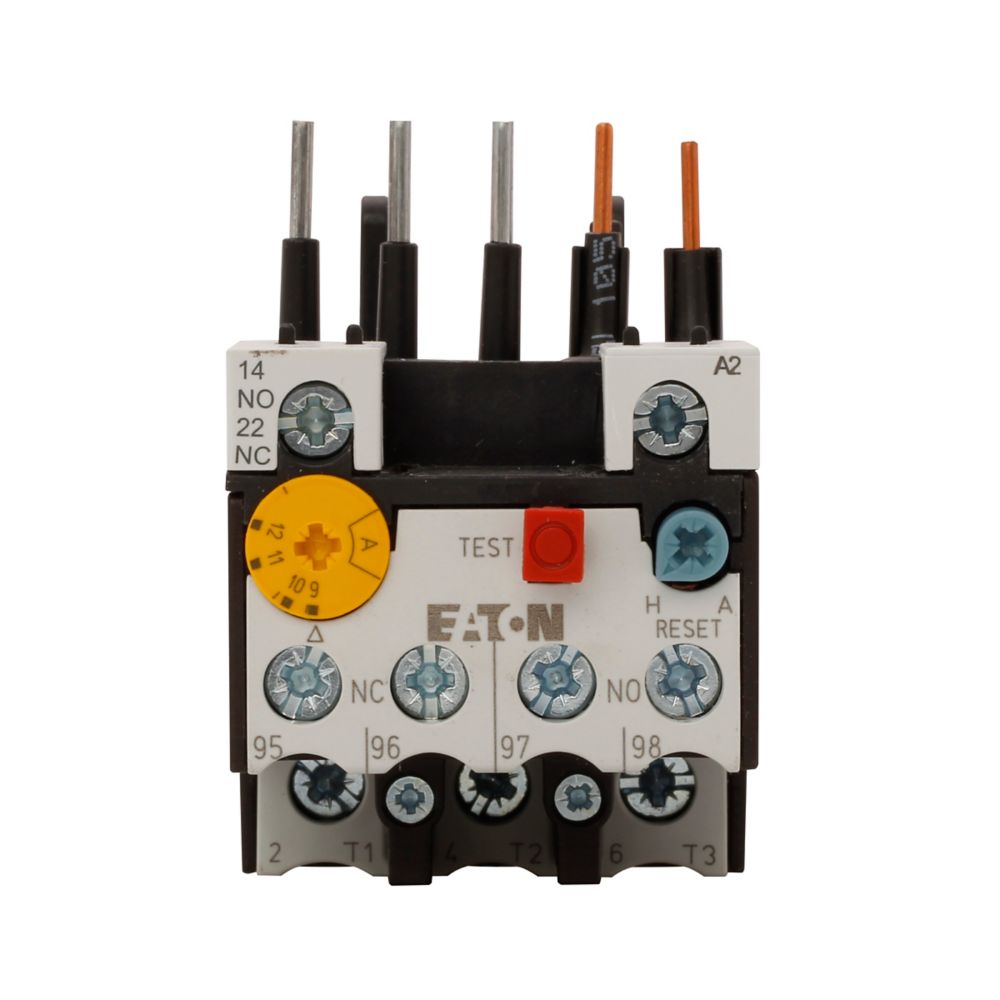

Eaton XTOB IEC Bimetallic Overload Relay — 45 mm B Frame, Class 10 (6–12 A)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Eaton
|
 SKU |
XTOB010BC1
|
The Eaton XTOB IEC bimetallic overload relay delivers dependable thermal overload protection for small three-phase motors. This 45 mm B-frame block mounts directly to a matching Eaton XTCE contactor (≈9–15 A class) to form a compact, field-adjustable motor starter — ideal for protecting small air compressor, pump, and fan motors against overload and phase-loss conditions.
Key specifications
- Type: Bimetallic thermal overload relay (XT IEC series)
- Frame size: 45 mm (B frame)
- Adjustable current range: 6–12 A across variants (6–10 A, 9–12 A)
- Trip class: Class 10A
- Auxiliary contacts: 1 NO + 1 NC
- Mounting: Direct to contactor (separate-mount adapter available)
- Reset: Selectable manual / automatic; integral Test and Stop functions
- Protection: Phase-loss sensitive, temperature-compensated
- Compliances: UL Listed, CSA Certified, IEC/EN 60947, CE, RoHS
Typical applications
Small reciprocating air compressors, water and process pumps, fans and blowers, and general three-phase motor branch circuits where adjustable overload protection is required.
The Eaton XTOB 45 mm B-frame overload relay pairs Class 10 tripping with an adjustable current range and 1NO-1NC contacts, giving panel builders and maintenance teams reliable, code-compliant motor protection in a compact direct-mount package.
NOTE: Actual product may be different from pictured!
