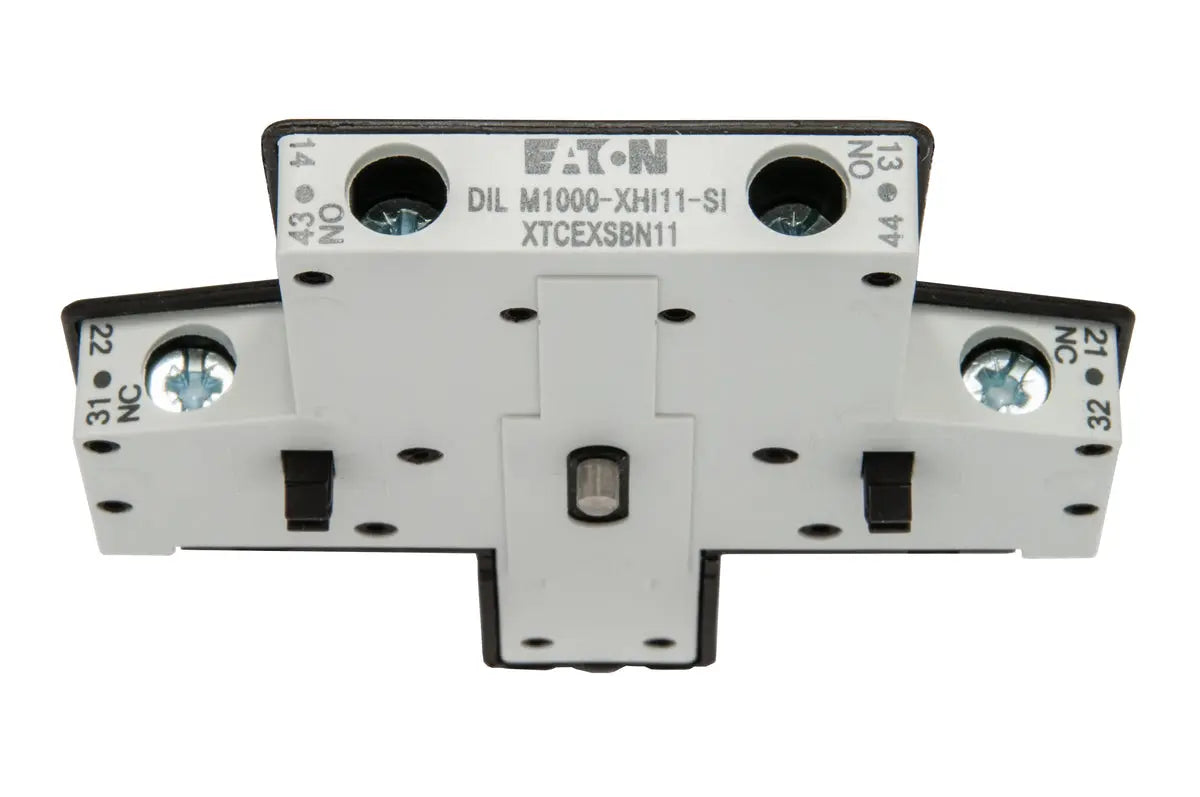

Eaton XTCEXSBN11 Auxiliary Contact Block — 1 N/O & 1 N/C, Side Mount
The Eaton XTCEXSBN11 is a side-mount auxiliary contact block that adds one normally open (N/O) and one normally closed (N/C) auxiliary contact to Eaton XT-series and Moeller DILM contactors. It snaps onto the side of the contactor to provide the extra control-circuit signals needed for interlocking, status indication, and holding circuits.
Key specifications
- Contact configuration: 1 N/O + 1 N/C (1NO-1NC), 2-pole
- Mounting: Side mount, snap-on
- Termination: Screw terminals
- Rated current: 10 A (AC-1)
- Rated voltage: up to 600 VAC
- Compatibility: Eaton XT-series (XTCE / XTCEC) frame D–R contactors and Moeller DILM40–DILM1000
- Standards: IEC 60947, EN 60947
- Certifications: UL Listed, CSA Certified, CE Marked, CCC Marked, ATEX compliant
- Weight: 0.2 lb
Typical applications
Used in motor-control and power-control panels to provide auxiliary signaling on contactors — electrical interlocks, run/stop status indication, seal-in (holding) circuits, and control logic for pumps, fans, compressors, and conveyors.
Expand the control capability of your Eaton XT-series or Moeller DILM contactor with the genuine Eaton XTCEXSBN11 side-mount auxiliary contact block, delivering one N/O and one N/C contact with UL-listed, screw-terminal connections for reliable industrial control.
NOTE: Actual product may be different from pictured!
