Eaton 50 A 3-Phase IEC Magnetic Motor Starter — 240V, 15 HP, 40–57 A Overload (XT Series)

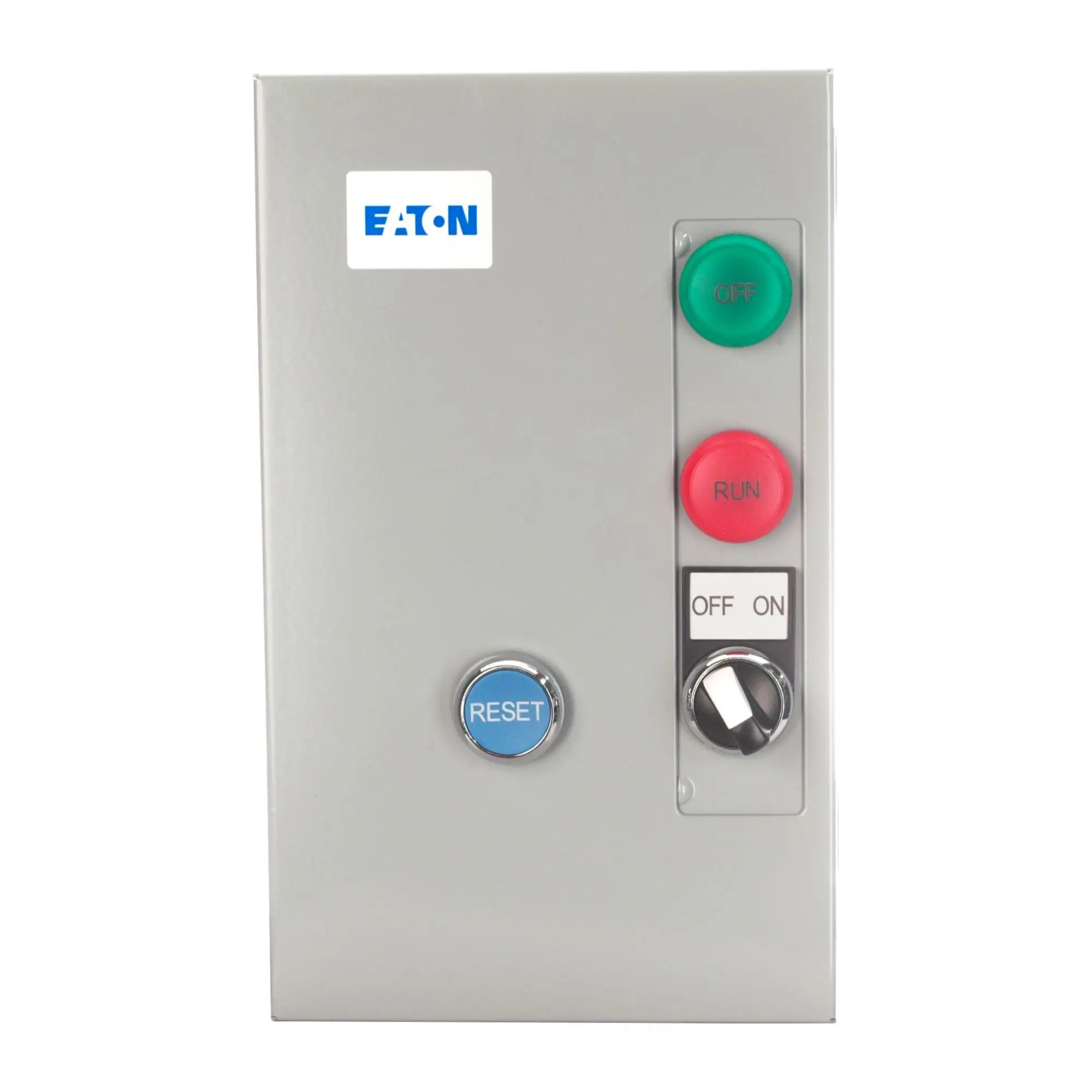

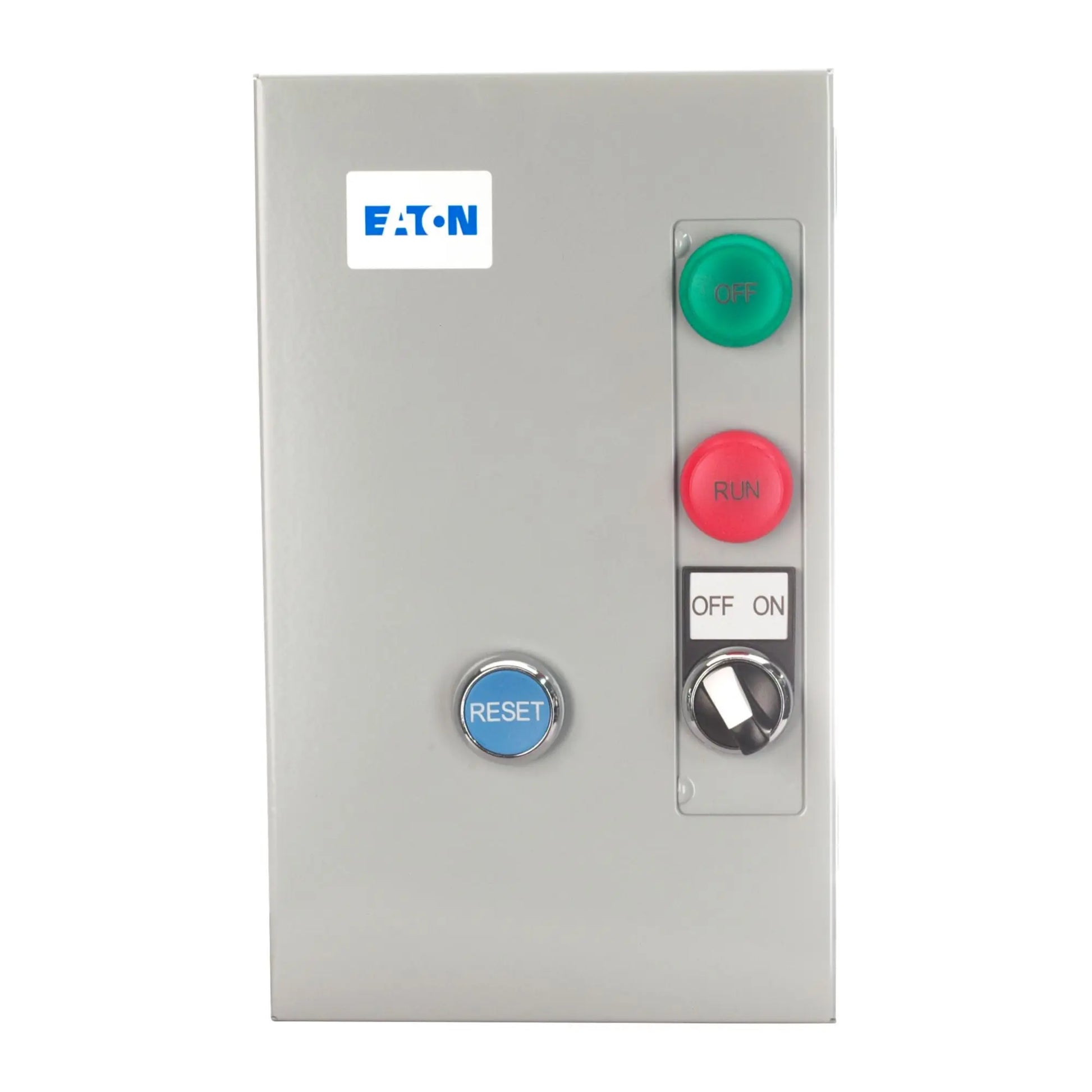

The Eaton ECX09 is a 50 A three-phase, non-reversing IEC magnetic motor starter from the Eaton XT series, factory-assembled in a NEMA 1 enclosure for dependable across-the-line starting and overload protection of larger three-phase motors. It pairs an XT IEC contactor with an adjustable electronic overload relay set for 40–57 A, making it a reliable motor control for air compressors, pumps, fans, and similar industrial loads.
Key specifications
- Brand: Eaton — XT series
- Type: IEC magnetic motor starter, non-reversing (FVNR), 3-pole / 3-phase
- Contactor rating: 50 A
- Overload protection: electronic overload relay, 40–57 A adjustable, Trip Class 10
- Coil voltage: 240V
- Horsepower (3-phase): 15 HP @ 240V
- Auxiliary contacts: 1 N/O + 1 N/C included
- Enclosure: NEMA 1 / IP23, surface mount
- Frequency: 50/60 Hz · Max voltage: 690 V AC
- Listings: UL Listed, cUL Listed
Typical applications
Across-the-line starting and overload protection for three-phase air compressors, pumps, blowers, fans, conveyors, and general industrial machinery.
The Eaton ECX09 50 A XT-series IEC magnetic motor starter delivers factory-built 240V motor control for 15 HP three-phase loads in a rugged NEMA 1 enclosure with an adjustable 40–57 A electronic overload.

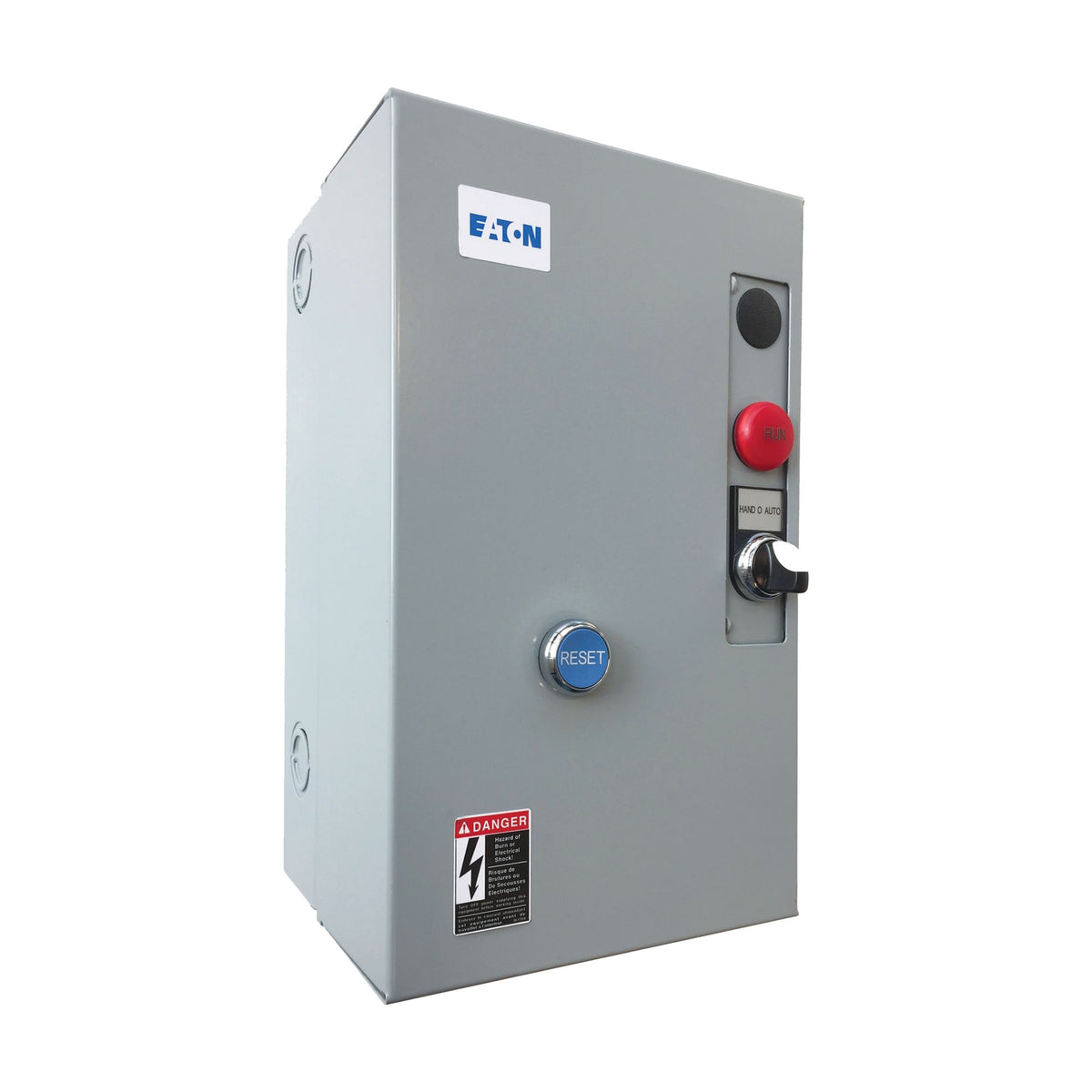

NOTE: Actual product may be different from pictured!
