Eaton 40 A 3-Phase IEC Magnetic Motor Starter — 24–40 A Overload (XT Series, NEMA 1)

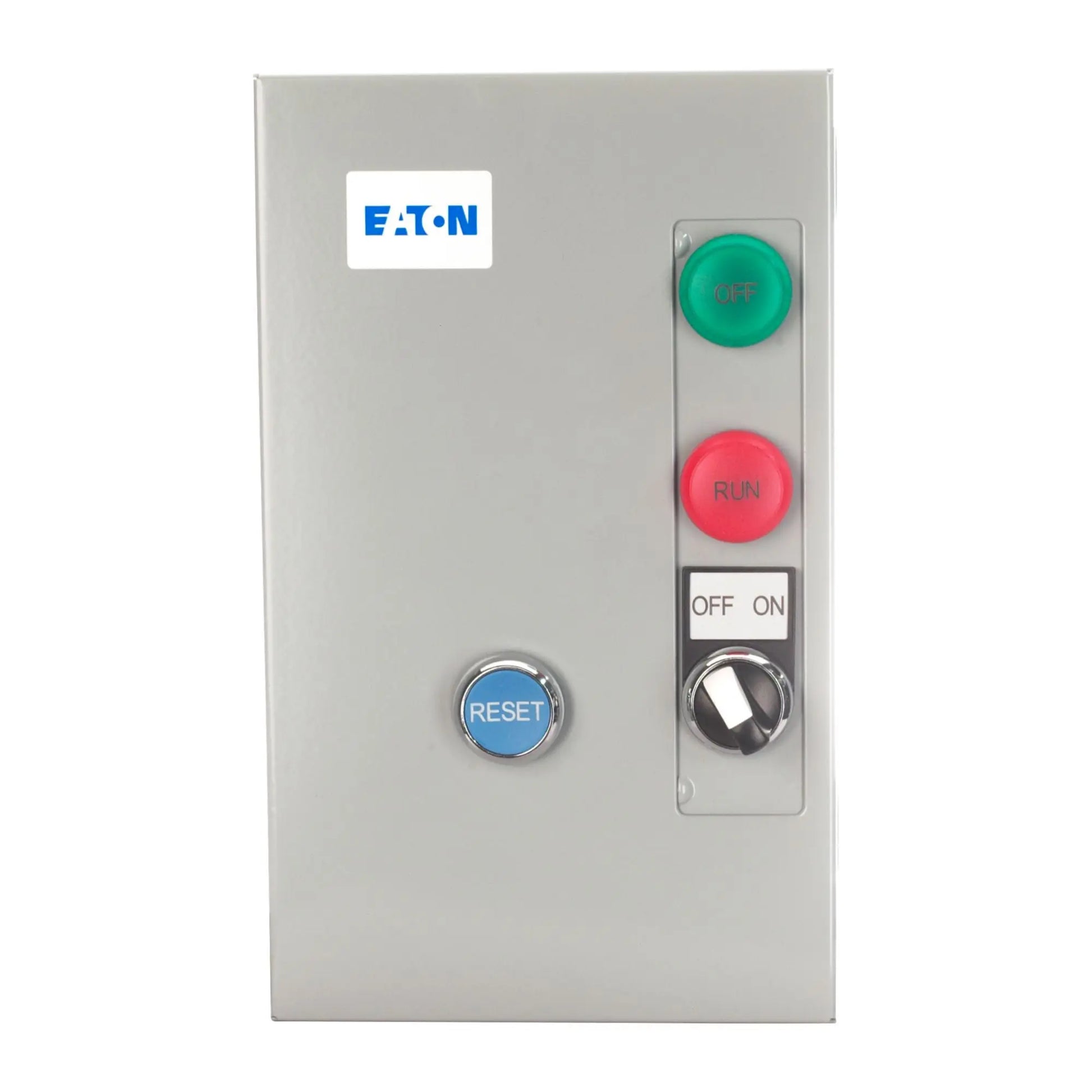

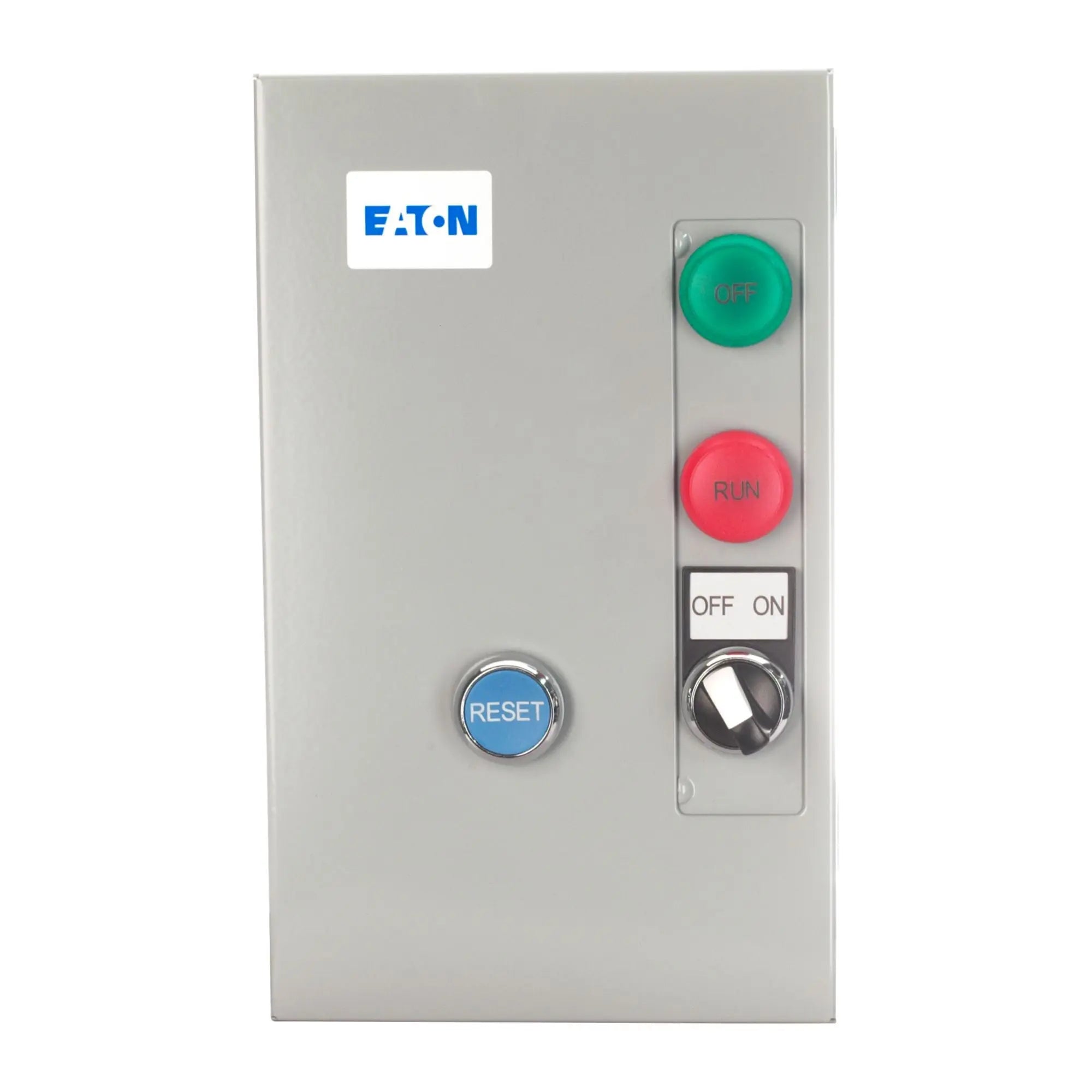

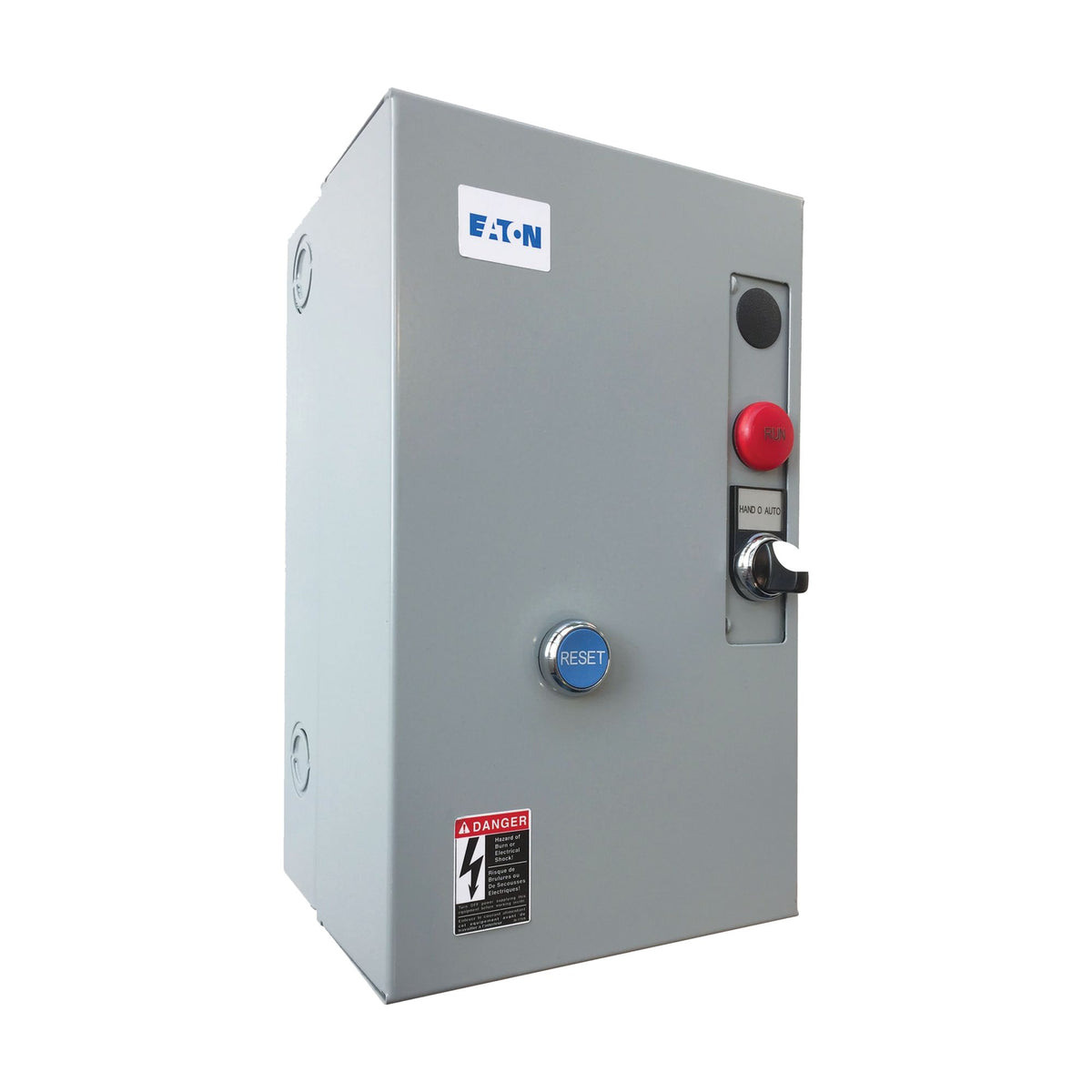

The Eaton ECX09 is a 40 A three-phase, non-reversing IEC magnetic motor starter from the Eaton XT series, factory-assembled in a NEMA 1 enclosure for dependable across-the-line starting and overload protection of three-phase motors. It pairs an XT IEC contactor with an adjustable electronic overload relay set for 24–40 A, making it a reliable motor control for air compressors, pumps, fans, and similar industrial loads.
Key specifications
- Brand: Eaton — XT series
- Type: IEC magnetic motor starter, non-reversing (FVNR), 3-pole / 3-phase
- Contactor rating: 40 A
- Overload protection: electronic overload relay, 24–40 A adjustable, Trip Class 10
- Coil voltages available: 110V, 208V, 240V, 480V (select below)
- Horsepower (3-phase): 10 HP @ 208V · 10 HP @ 240V · 25 HP @ 480V
- Auxiliary contacts: 1 N/O + 1 N/C included
- Enclosure: NEMA 1 / IP23, surface mount
- Frequency: 50/60 Hz · Max voltage: 690 V AC
- Listings: UL Listed, cUL Listed
Typical applications
Across-the-line starting and overload protection for three-phase air compressors, pumps, blowers, fans, conveyors, and general industrial machinery.
The Eaton ECX09 40 A XT-series IEC magnetic motor starter delivers factory-built motor control in a rugged NEMA 1 enclosure with an adjustable 24–40 A electronic overload, available with 110V, 208V, 240V, or 480V coils to match your three-phase motor.
NOTE: Actual product may be different from pictured!
