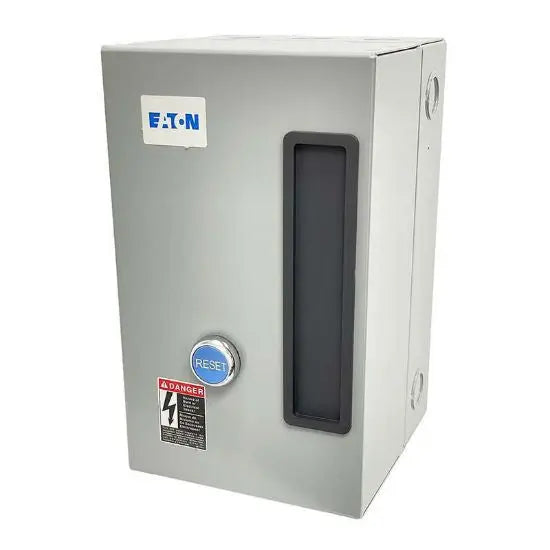

Eaton 30A 3-Phase Definite Purpose Magnetic Motor Starter — 24–40A Overload, 208-240V (7.5–10 HP)
The Eaton A27CGF30B040 is a 30 A 3-phase definite purpose magnetic motor starter for 7.5–10 HP air compressor and motor loads at 208–240V. It combines a 30 A 3-pole contactor with an adjustable 24–40 A bi-metallic overload relay in a NEMA Type 1 enclosure and ships factory pre-wired — no heaters required.
Key specifications
- Brand: Eaton (Cutler-Hammer A27 definite purpose series)
- Type: Definite purpose magnetic motor starter, across-the-line, non-reversing
- Phase / poles: 3-phase, 3-pole
- Contactor rating: 30 A inductive full load
- Adjustable overload range: 24–40 A, bi-metallic, ambient compensated, Class 10 trip
- Coil voltage: 208–240V
- Horsepower: 7.5–10 HP @ 208–240V
- Enclosure: NEMA Type 1; trip-free mechanism; shrouded finger-proof terminals
- UL Recognized components; CSA Certified contactor
Typical applications
Ideal for 7.5–10 HP three-phase air compressors, pumps, and fans needing automatic overload protection. Works with your existing pressure switch for combined on/off control and motor protection.
The Eaton A27CGF30B040 30 A 3-phase definite purpose magnetic starter delivers rugged, code-compliant motor control with a 24–40 A adjustable overload in a NEMA Type 1 enclosure at 208–240V for air compressor duty.
NOTE: Actual product may be different from pictured!
