Eaton 25A 3-Phase Definite Purpose Magnetic Motor Starter — 16–24A Overload, 208-240V (5–7.5 HP)

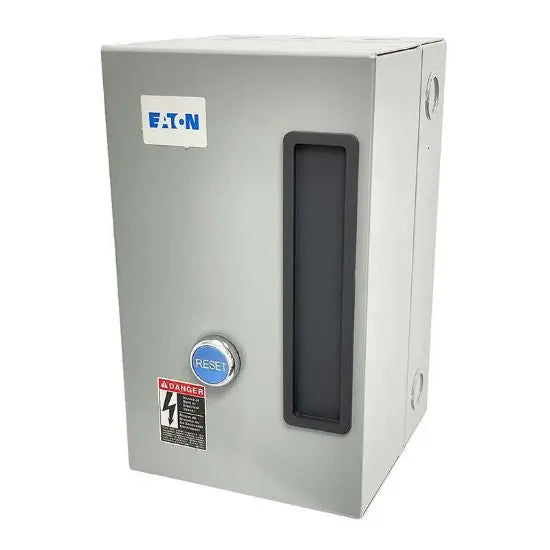

The Eaton A27CGD25B024 is a 25 A 3-phase definite purpose magnetic motor starter for 5–7.5 HP air compressor and motor loads at 208–240V. It combines a 25 A 3-pole contactor with an adjustable 16–24 A bi-metallic overload relay in a NEMA Type 1 enclosure and ships factory pre-wired — no heaters required.
Key specifications
- Brand: Eaton (Cutler-Hammer A27 definite purpose series)
- Type: Definite purpose magnetic motor starter, across-the-line, non-reversing
- Phase / poles: 3-phase, 3-pole
- Contactor rating: 25 A inductive full load
- Adjustable overload range: 16–24 A, bi-metallic, ambient compensated, Class 10 trip
- Coil voltage: 208–240V
- Horsepower: 5–7.5 HP @ 208–240V
- Enclosure: NEMA Type 1; trip-free mechanism; shrouded finger-proof terminals
- UL Recognized components; CSA Certified contactor
Typical applications
Ideal for 5–7.5 HP three-phase air compressors, pumps, and fans needing automatic overload protection. Works with your existing pressure switch for combined on/off control and motor protection.
The Eaton A27CGD25B024 25 A 3-phase definite purpose magnetic starter delivers rugged, code-compliant motor control with a 16–24 A adjustable overload in a NEMA Type 1 enclosure at 208–240V for air compressor duty.
NOTE: Actual product may be different from pictured!
