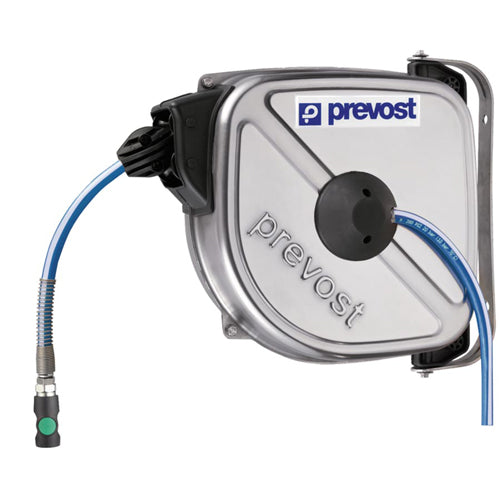

DRF/I Series 304 Stainless Steel Polyurethane Air Hose Reel by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
DRFI 1012ESHE
|
| Dimensions | |
 Weight |
14.33 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
The Prevost DRF/I is a fully enclosed air hose reel built in AISI 304 stainless steel, which makes it the right choice for washdown bays, food and beverage plants, marine work and anywhere painted steel would corrode. The enclosed case keeps the drum and spring clean, so the reel keeps retracting smoothly in environments that would foul an open reel.
It carries 3/8 in by 40 ft of ether-based polyurethane hose, locks at any length with a ratchet stop, and mounts on a 180-degree swivel bracket so the hose leaves the reel in line with the pull.
Technical specifications
- Technology: Pipe locked with ratchet stop
- Max operating pressure: 174 psi
- Temperature: 5°F to 149°F
- Construction: AISI 304 stainless steel case
- Connection: 3.3 ft of inlet supply hose
- Equipped with: 180° swivel bracket
| Reference | ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Fixed inlet (in) | Weight (lb) | A (inch) | B (inch) |
|---|---|---|---|---|---|---|---|---|
| DRFI 1012ESHE | 3/8″ | 40′ | ESI 07HE | 28 | 3/8″ | 17.42 | 14.567 | 13.268 |
NOTE: Actual product may be different from pictured!
