Dodge Three-Groove A/B Cast Iron QD V-Belt Sheave, 5.55 to 11.35 in. OD

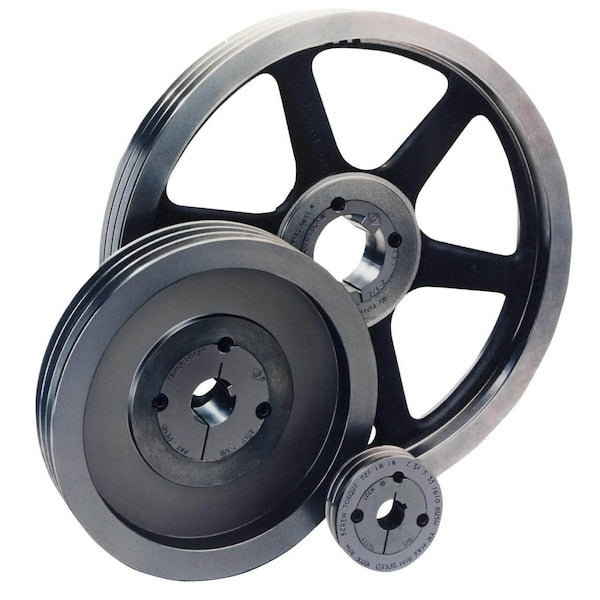

Dodge three-groove cast iron sheave for A and B section V-belts, from the conventional QD bushed line. Each size is supplied with a bushed bore rather than a finished bore, so one sheave covers a wide shaft range and comes off the shaft without a puller. Pick the diameter you need below. The QD bushing is ordered separately to match your shaft.
Key specifications
- Three grooves, A and B section V-belts (also 4L and 5L)
- Outside diameters 5.55 in. through 11.35 in., see the Model option
- Cast iron construction
- QD bushed bore: SD bushing on the 3B52, 3B56 and 3B66, SK bushing on the 3B70 and 3B110
- Bore range 1/2 in. to 2 in. through an SD bushing, 1/2 in. to 2-5/8 in. through an SK bushing
- Bushing sold separately
Sizes and diameters
- 3B52-SD, Dodge 455618: 5.55 in. OD, 4.8 in. A pitch dia., 5.2 in. B pitch dia., SD bushing, 7.96 lb
- 3B56-SD, Dodge 455620: 5.95 in. OD, 5.2 in. A pitch dia., 5.6 in. B pitch dia., SD bushing, 9.41 lb
- 3B66-SD, Dodge 455625: 6.95 in. OD, 6.2 in. A pitch dia., 6.6 in. B pitch dia., SD bushing, 13.09 lb
- 3B70-SK, Dodge 455627: 7.35 in. OD, 6.6 in. A pitch dia., 7.0 in. B pitch dia., SK bushing, 13.15 lb
- 3B110-SK, Dodge 455632: 11.35 in. OD, 10.6 in. A pitch dia., 11.0 in. B pitch dia., SK bushing, 20.26 lb
How to read the part number
In this Dodge line the number after the section letter is the B section pitch diameter, not the outside diameter. A 3B70 is a three-groove sheave with a 7.0 in. B pitch diameter and a 7.35 in. outside diameter. The A section pitch diameter runs 0.40 in. below the B figure, and the outside diameter runs 0.35 in. above it. Dodge marks the full designation on the casting, for example 3A6.6 B7.0 SK. Several distributor datasheets publish pitch diameters for these parts that are larger than the outside diameter, which is not possible, so work from the designation on the part rather than from a catalog field when you are matching an existing drive.
Typical applications
Three-groove B section sheaves carry considerably more power than a two-belt drive and are the usual choice on 10 to 25 HP reciprocating air compressor packages, large blowers and exhaust fans, centrifugal and positive displacement pumps, conveyors, and shop machinery where belt slip has become a problem on a two-groove drive. The QD bushing means a single sheave stocks across several shaft sizes and comes off cleanly at service time.
This Dodge three-groove cast iron QD V-belt sheave is available in five outside diameters from 5.55 in. to 11.35 in. for A, B, 4L and 5L belts, on SD and SK bushings. Specifications above are taken from Dodge's published catalog data for part numbers 455618, 455620, 455625, 455627 and 455632.
NOTE: Actual product may be different from pictured!
