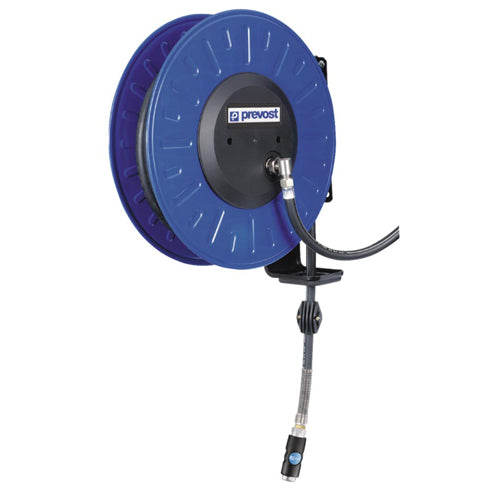

DLO Series Extra Large Rubber Hose Reel by Prevost

DLO series - Extra large - Rubber hose

Prevost DLO Series Hose Reel

Technical specifications

• Technology :Pipe locked with ratchet stop
• Max operating pressure :174 psi
• Construction :Epoxy-coated steel case
• Connection :3.3 ft of inlet supply hose
• Equipped with :Fixed bracket

Fixed bracket
Inlet: 1/2″ FBSP
Inlet: 1″ MBSP for DLO 1920
3.3 ft hose
Outlet: with prevoS1 safety quick coupling
Temperature: 5 Degree F to 158 Degree F
Pressure: 174 psi

Reference	ID (in)	Length (ft)	Coupler	Flow rate (cfm)	Swivel inlet BSPP male thread	Weight (lb)	A (inch)	B (inch)
DLO 1330IS	1/2″	98′	ISI 11	30	1/2″ MBSP	85.99	24.213	24.016
DLO 1625IS	5/8″	82′	ISI 11	60	1/2″ MBSP	90.4	24.213	24.016
DLO 1920IS	3/4″	65′	ISI 11	85	1″ MBSP	92.61	24.213	24.016
DLO 1330US	1/2″	98′	USI 11	30	1/2″ MBSP	85.99	24.213	24.016
DLO 1625US	5/8″	82′	USI 11	60	1/2″ MBSP	90.4	24.213	24.016
DLO 1920US	3/4″	65′	USI 11	85	1″ MBSP	92.61	24.213	24.016
DLO 1330ES	1/2″	98′	ESI 11	30	1/2″ MBSP	85.99	24.213	24.016
DLO 1625ES	5/8″	82′	ESI 11	60	1/2″ MBSP	90.4	24.213	24.016
DLO 1920ES	3/4″	65′	ESI 11	85	1″ MBSP	92.61	24.213	24.016

Weight	N/A
Dimensions	24.213 × 24.016 in
Connection	Automotive (USI 11), High Flow (ESI 11), Industrial (ISI 11)
ID (in)	1/2, 3/4, 5/8, 1/2 in, 3/4 in, 5/8 in
Length (ft)	65, 82, 98
Product Range	Hose Reels
CFM	30, 60, 85
Fluid Type	Air, Water
PSI	175
