AKG DCS16 12V 123SCFM Fan After Cooler for Portable Compressors
| Specifications (As Configured) | |
|---|---|
 Vendor |
AKG - Nano
|
 SKU |
1280806456
|
 Model |
|
 Max CFM |
|
 Voltage |
|
| Dimensions | |
 Weight |
53.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
The AKG DCS16 sits one step up from the DCS10 in AKG's Cool-Line DCS series. Same construction, a bar and plate brazed aluminum core behind a single DC fan, with more face area and a larger fan motor to match. It is sized for portable and truck mounted compressors that have outgrown the smallest cooler but do not need the physical bulk of a DCS20. Running off the machine's 12 or 24 volt system, it pulls the discharge temperature down so water condenses at the cooler instead of in the hose.
Inlet and Outlet Connections
These are SAE ports, not NPT. AKG uses straight thread O-ring boss connections across the DCS line. An ORB port seals on an o-ring against a machined flat face, which holds up to the vibration of mobile equipment far better than tapered pipe thread.
| Connection | DCS16 |
|---|---|
| Inlet | #16 SAE O-ring boss, 1-5/16-12 UN straight thread |
| Outlet | #16 SAE O-ring boss, 1-5/16-12 UN straight thread |
| NPT conversion | AKG option code AD, SAE to NPT adapters fitted at the factory, ordered as DCS16-12-AD. The usual adapter for a #16 ORB port lands at 1 in NPT. Check the adapter thread with us before you cut pipe. |
| Mounting slots | 5/16 in x 1/2 in |
A #16 male ORB to female NPT adapter is a stock hydraulic fitting if you would rather source it locally than pay for the factory option.
Fan Motor Data
A single brushed DC motor, ordered in 12 or 24 volt. AKG rates the fan IP69K with a published 8,000 hour life. Power comes in on a pigtail about 15 in long terminated in a Packard connector. The female half ships with the cooler; the male mating connector does not.
| Motor Specification | 12 Volt (DCS16-12) | 24 Volt (DCS16-24) |
|---|---|---|
| Number of fans | 1 | 1 |
| Motor type | Brushed DC, IP69K rated | Brushed DC, IP69K rated |
| Current draw per fan | 10 A | 6 A |
| Power draw, calculated | approx. 120 W | approx. 144 W |
| Recommended fuse per fan | 35 A | 35 A |
| Noise at 1 m | 76 dB(A) | 76 dB(A) |
| Published fan life | 8,000 hours | 8,000 hours |
AKG publishes current draw rather than a wattage rating, so the figures above are current times nominal voltage. Note the gap between the 10 A running draw and the 35 A recommended fuse: size the circuit to the fuse value so motor inrush does not blow it on every start.
Cooler Construction and Ratings
| Specification | DCS16 |
|---|---|
| Core | Bar and plate brazed aluminum |
| Shroud | Composite |
| Fan blade | Nylon, glass filled |
| Maximum working pressure | 250 PSI |
| Maximum working temperature | 250 F |
| Cooler internal volume | 0.5 gal |
| Overall size, W x H x D | 15.7 x 14.06 x 6.9 in |
| Approximate shipping weight | 25 lb |
| Rated for | Compressed air, and also used on hydraulic, transmission, engine and lube oil circuits |
Full DCS Series
AKG catalogs six sizes in the DCS line. Warthog supplies the entire series, whether or not a given size is built out as a buyable option on this site. If the model you need is not listed, ask for it.
| Model | Fans | Amps per fan, 12V / 24V | Fuse per fan | Ports | Overall W x H x D (in) | Volume (gal) | Ship wt (lb) |
|---|---|---|---|---|---|---|---|
| DCS10 | 1 | 5 / 3 | 20 A | #12 SAE ORB | 13.8 x 11.81 x 6.3 | 0.4 | 20 |
| DCS16 | 1 | 10 / 6 | 35 A | #16 SAE ORB | 15.7 x 14.06 x 6.9 | 0.5 | 25 |
| DCS20 | 1 | 19 / 10 | 50 A | #20 SAE ORB | 19.7 x 18.54 x 7.2 | 0.7 | 31 |
| DCS30 | 1 | 19 / 10 | 50 A | #20 SAE ORB | 23.6 x 22.09 x 7.2 | 1.0 | 53 |
| DCS45 | 2 | 17 / 9 | 50 A | #20 SAE ORB | 33.5 x 18.66 x 7.2 | 1.0 | 67 |
| DCS60 | 2 | 19 / 10 | 50 A | #20 SAE ORB | 35.4 x 22.32 x 7.2 | 1.3 | 110 |
DCS45 and DCS60 are dual fan units and include the feet mounting bracket set as standard. DCS10 through DCS20 use a composite shroud; DCS30 and up use steel.
How AKG Model Codes Are Built
A full part number reads model size, then motor voltage, then bypass, then any custom feature. A 30 HP cooler in 12 volt with a 65 PSI bypass and a 140 F switch is DCS30-12-BP65-TC140.
| Code | What it adds |
|---|---|
| -12 / -24 | 12 volt or 24 volt motor |
| BP25 / BP65 | 25 PSI or 65 PSI internal bypass |
| BPNV | Bypass port, no valve fitted |
| AD | SAE to NPT adapters installed |
| R | Reversed fan rotation |
| TC115 / TC140 | 115 F or 140 F temperature switch |
| MTG | Feet mounting bracket set, standard on DCS45 and DCS60 |
Sizing and Lead Time
Pick an aftercooler by the approach temperature you want to hit, not by matching a compressor's CFM to a model number. Wider approach, lower cost, more water left in the air. Tighter approach, more water knocked out before it travels. If the machine runs continuous duty or works in high ambient, size up rather than down.
AKG builds these to order and stocks no finished units, so every DCS carries a build lead time. Send us the compressor model, discharge CFM and pressure, your working ambient and the system voltage, and we will size it and quote the lead time with it.

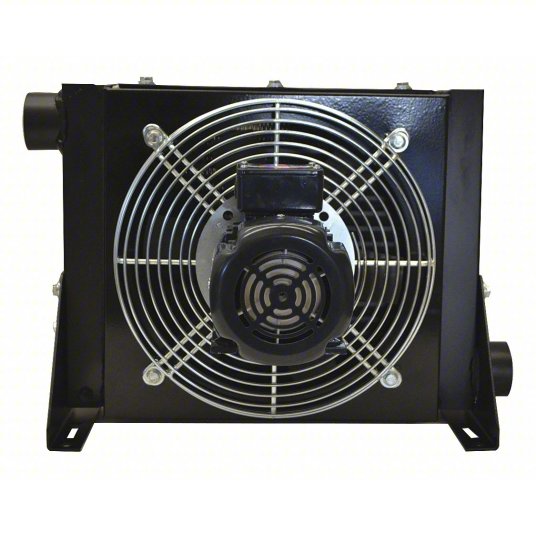

NOTE: Actual product may be different from pictured!
