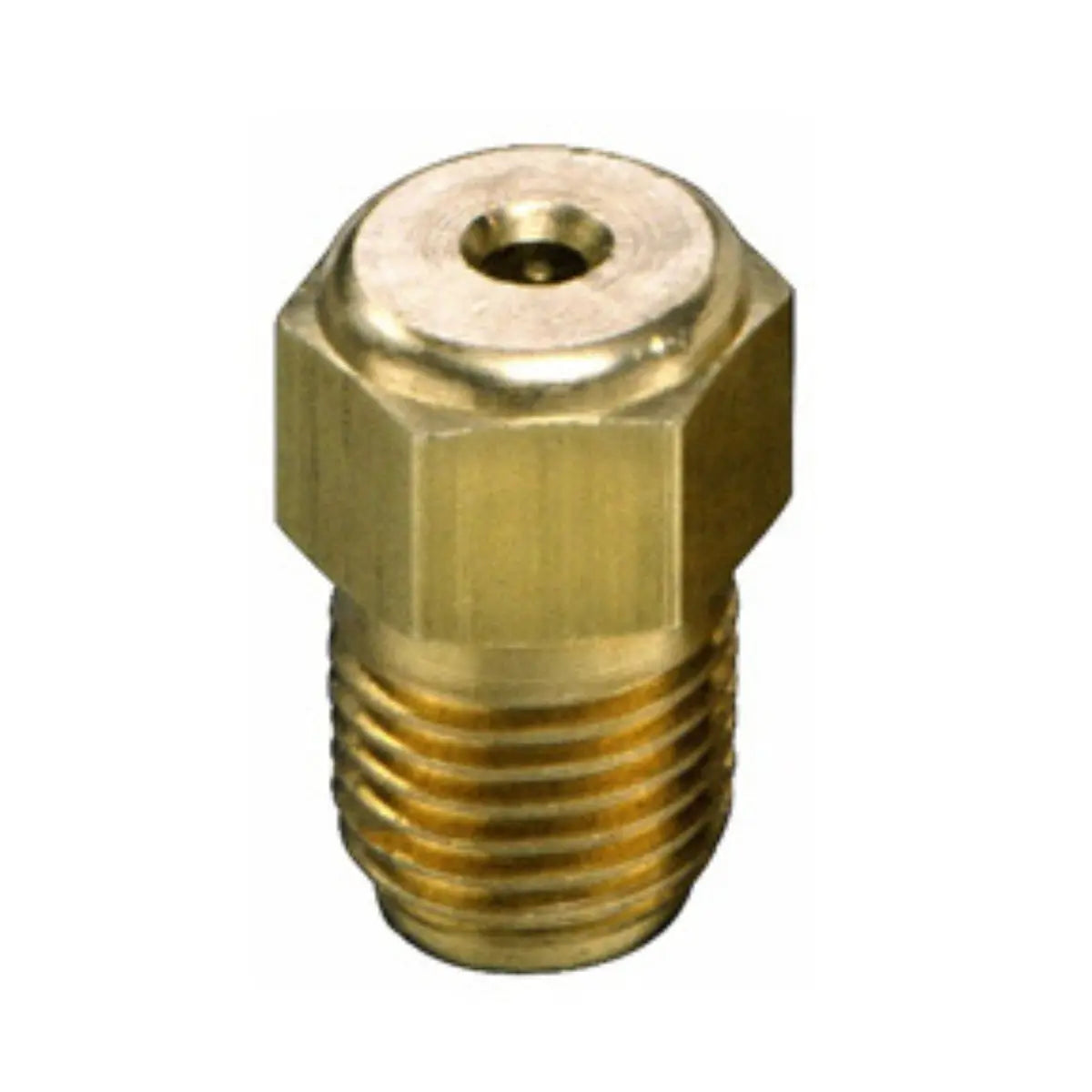

Conrader SU3 Brass Cold Start Valve — Reduces Motor Starting Torque
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
SU3-1/8
|
The Conrader SU3 cold start valve bleeds air from the compressor head during the first few revolutions of startup, reducing the motor's starting torque. It's the simple, reliable fix for oil-lubed pumps that are subject to low temperatures and low starting voltages — for example a contractor unit that sits outside overnight and runs off a long extension cord.
Machined from solid C360 brass with a stainless steel spring and Viton O-ring, the SU3 threads directly into the head or unloader port and includes an in-line check function. It's a compact, maintenance-free way to ensure hard-starting compressors turn over cleanly in cold weather.
Key Specifications
- Type: Cold start (start unloader) valve with in-line check
- Body / stem: C360 machined brass
- Spring: 302 stainless steel
- Seal: Viton O-ring
- Connection: MNPT (male NPT) — see variant for port size
- Cracking pressure: ~3 psi
- Minimum close pressure: 30 PSIG
- Maximum close pressure: 40 PSIG
- Maximum operating temperature: 500°F
- Mounting: Horizontal or vertical
Typical Applications
Oil-lubricated reciprocating air compressors, contractor and jobsite units, and any compressor exposed to cold starts or marginal starting voltage where reduced startup torque protects the motor.
Available in 1/8" MNPT and 1/4" MNPT port sizes, the Conrader SU3 brass cold start valve is a proven, low-cost upgrade for easier cold-weather starting and longer motor life on oil-lubed air compressor pumps.
NOTE: Actual product may be different from pictured!
