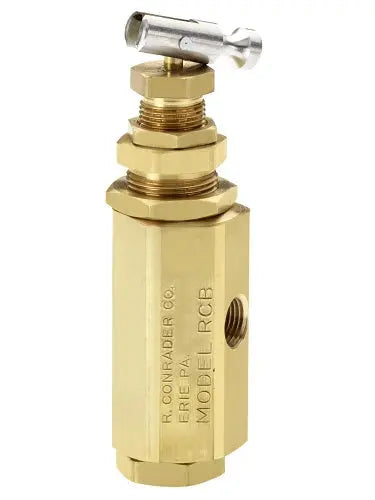

Conrader RC-Series Pilot Valve with Manual Hand Unloader
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
RCB-HU-PSI
|
The Conrader RC-series pilot valve is a factory-set pressure control valve with a manual hand unloader lever, used on air compressors and compressed-air systems to switch a downstream device on a pneumatic signal. As tank pressure rises to the unload (cut-out) setting, the pilot opens and pressurizes the line downstream; as pressure falls to the load (cut-in) setting, the pilot closes and vents that line. This cyclic signal is what drives an unloader valve, throttle control, drain valve, or shuttle valve. The hand unloader lever makes for easy, low-load engine starting and can be swapped for a dual-control lockout on electric-motor compressors to switch between start/stop and continuous running.
Key specifications
- Operating pressure: 20–250 psi (RCL-S rated to 1200 psi)
- Operating temperature: -15° to 400°F
- Body: brass
- Control: manual hand unloader (HU) lever
- Connection types: Male or Female NPT, depending on configuration
- Function: factory-set cut-in / cut-out pilot signal
Choose your port configuration
- RCB-HU — 1/4" FNPT inlet × 1/8" FNPT outlet
- RCBM-HU — 1/4" MNPT inlet × 1/8" FNPT outlet
- RCT-HU — 1/4" FNPT inlet × 1/8" FNPT outlet, cross body
- RCQ-HU — 1/4" FNPT inlet × 1/4" FNPT outlet
- RCLS-HU — 3/8" FNPT inlet × 1/4" FNPT outlet (high-pressure RCL-S series)
Typical applications
Regulating engine speed through a throttle control, loading and unloading a compressor, draining condensate, and operating normally open/closed or shuttle valves on gas-engine and electric-motor driven compressed-air systems.
The Conrader RC-series pilot valve with manual hand unloader is a proven, rebuildable brass control for keeping compressor cut-in and cut-out pressures consistent. Built in the USA by Conrader, it's a reliable replacement and upgrade part for piston and gas-driven air compressors across a wide pressure range.
Pilot valves are factory set to a specified cut-in/cut-out pressure range. If you need a particular setting, note it at checkout or contact us before ordering.
NOTE: Actual product may be different from pictured!
