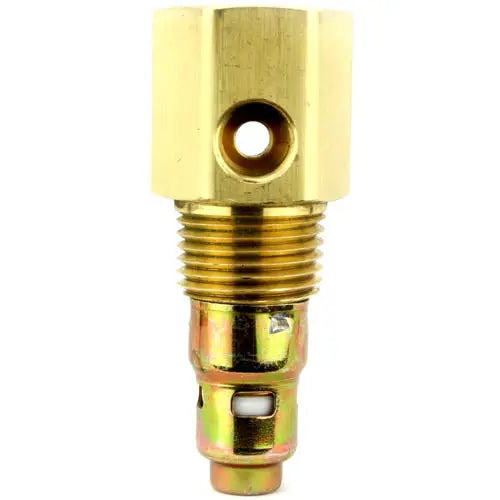

Conrader In-Tank Check Valve — Inverted Flare Inlet, Double Tapped, Brass (Ingersoll Rand Replacement)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
CTG1212
|
The Conrader CTG-Series in-tank check valve mounts between your compressor pump and the air receiver tank, allowing air to flow in one direction while closing instantly when flow stops or reverses — preventing tank air from bleeding back into the discharge line when the compressor shuts down. The inverted (45°) flare inlet and male NPT tank-end outlet make it a direct replacement for Ingersoll Rand in-tank check valves, and the double-tapped hex provides built-in ports for an unloader line and a safety relief valve.
Key Specifications
- Series: Conrader CTG (inverted flare inlet, double tapped)
- Inlet: Inverted 45° flare
- Outlet: Male NPT (tank end)
- Side ports: One 1/8" inverted-flare port (unloader line) + one NPT port (safety relief valve), one on each side of the hex
- Body: C360 machined brass; plated-steel tank end
- Poppet: 15% glass-filled PTFE (Teflon)
- Spring: 302 stainless steel
- Cracking pressure: 1 PSI
- Maximum pressure: 500 PSI
- Temperature range: -65°F to 450°F
- Sealant: Everseal 483 standard; 100% tested for backflow leakage
Applications
Reciprocating and rotary air compressors, receiver tanks, and main headers — anywhere a reliable, serviceable in-tank check valve with integrated unloader and relief-valve ports is required. A drop-in replacement for common Ingersoll Rand in-tank check valves.
Built from corrosion-resistant brass with a stainless spring and PTFE poppet, the Conrader CTG in-tank check valve delivers dependable backflow protection and long service life in demanding compressed-air systems. Choose the inlet/outlet size below to match your compressor and tank fitting.
NOTE: Actual product may be different from pictured!
