Conrader One-Piece Brass In-Tank Check Valve — Top Inlet x Bottom Outlet (FNPT x MNPT)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
CTLB1412
|

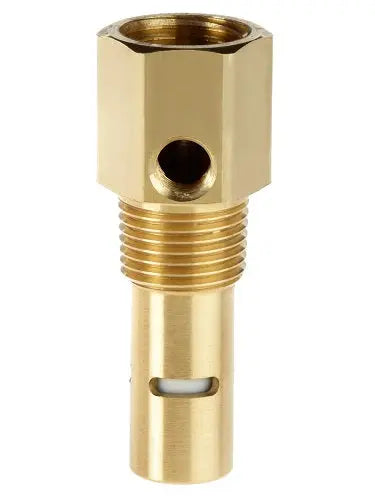

The Conrader CTLB is a one-piece, all-brass in-tank check valve with a Female NPT top inlet and Male NPT bottom outlet, designed to thread directly into a compressor tank or air receiver. It holds line pressure when the compressor stops and prevents stored air from bleeding back through the pump.
Key specifications
- One-piece brass body and valve housing
- Reinforced PTFE seal with 302 stainless steel spring
- Maximum operating pressure: 500 PSIG
- Operating temperature range: -65°F to 450°F
- Rated flow: 15 to 150 SCFM depending on size
- Inlet: 1/4" to 1-1/2" Female NPT (top)
- Outlet: 3/8" to 1-1/2" Male NPT (bottom)
- Made in the USA
Typical applications
Reciprocating and rotary air compressors, air receivers and storage tanks, and compressed-gas or pneumatic systems where reliable backflow prevention is required. Double-tapped configurations add a 1/8" or 1/4" Female NPT side port for an unloader line, gauge, or pilot connection.
Backed by Conrader’s USA-made brass construction, the CTLB series delivers dependable check protection across a full range of FNPT inlet by MNPT outlet sizes for compressor and tank installations.
NOTE: Actual product may be different from pictured!
