Conrader CTA-Series Brass In-Tank Check Valve — Female NPT Inlet × Male NPT Outlet
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
CTA1212
|

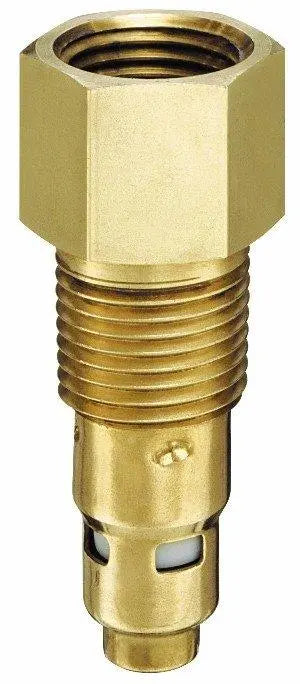

The Conrader CTA-Series is a brass in-tank check valve for compressed-air and pneumatic systems. It threads directly into the tank or receiver, opening to allow airflow in one direction and sealing shut when the compressor stops or flow reverses so stored pressure stays in the tank. This configuration has a Female NPT inlet and a Male NPT outlet, with no unloader port.
Key specifications
- Inlet connection: Female NPT (FNPT)
- Outlet connection: Male NPT (MNPT)
- Connection sizes: 1/2" to 1"
- Flow capacity: 20–60 SCFM (size dependent)
- Maximum operating pressure: 500 psi
- Operating temperature range: -65°F to 450°F
- Body material: Brass
- Seal: Reinforced PTFE
- No unloader port
Typical applications
Reciprocating and rotary air compressors, air receivers and storage tanks, and general pneumatic systems where one-way airflow and pressure retention are required.
The Conrader CTA-Series brass in-tank check valve delivers reliable one-way airflow and pressure retention for air compressor tanks and receivers, rated to 500 psi with a reinforced PTFE seal and available in Female NPT inlet × Male NPT outlet sizes from 1/2" to 1".
NOTE: Actual product may be different from pictured!
