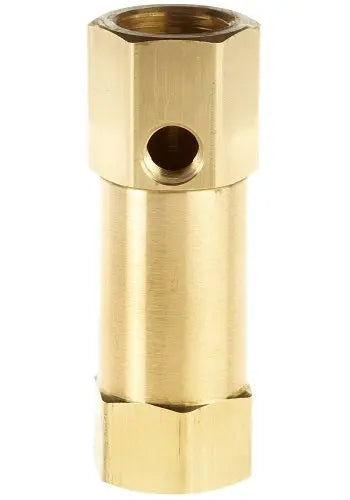

Conrader CLS-Series In-Line Check Valve — Brass, NPT (500 PSI)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
CLS1412
|
The Conrader CLS-Series is an all-brass in-line check valve for compressed-air and pneumatic systems. Installed in the line, it opens to allow flow in one direction and closes the instant flow stops or reverses, protecting your compressor, pump, and downstream equipment from backflow. The valve is serviceable in place, so the internals can be cleaned or replaced without unthreading it from the line.
Built with a reinforced PTFE poppet and a stainless steel spring, the CLS handles continuous duty across a wide temperature and pressure range. Available in a range of male and female NPT inlet/outlet configurations to drop straight into your existing plumbing.
Key Specifications
- Construction: Brass body, reinforced PTFE poppet, stainless steel spring
- Max operating pressure: 500 PSI
- Operating temperature range: -65°F to 450°F
- Flow capacity: 10 to 95 SCFM
- Connection type: NPT (male and female configurations available)
- Orientation: In-line
- Serviceable: Yes — serviceable without removing the valve from the line
Typical Applications
Reciprocating and rotary screw air compressors, compressed-gas lines, pneumatic tooling, and any system that needs reliable one-way flow with backflow prevention.
Choose your port configuration from the options above. Conrader in-line check valves are a proven, USA-made choice for keeping compressed-air systems flowing in one direction and protecting equipment from costly reverse flow.
NOTE: Actual product may be different from pictured!
