Conrader CAC-Series In-Tank Check Valve — Brass, Compression Inlet × MNPT Outlet
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
CAC3812-NF
|
The Conrader CAC-Series is a serviceable in-tank check valve for compressed-air and pneumatic systems. It threads into the tank or receiver with the male NPT outlet seated inside, opening to allow flow in one direction and closing the instant flow stops or reverses — protecting the compressor pump from backflow. The compression-tube inlet connects directly to copper or aluminum discharge tubing.
Key specifications
- All-brass body for corrosion resistance and high-temperature durability
- Reinforced PTFE poppet with discharge holes for quiet operation
- Stainless steel spring
- Maximum operating pressure: 500 psi
- Operating temperature range: -65°F to 450°F
- Flow capacity: 15 to 60 SCFM (20 SCFM at 1/2")
- Inlet: 3/8" to 3/4" compression tube
- Outlet: 3/8" to 1" Male NPT
- Serviceable poppet design — disassembles for cleaning and repair
- Made in the USA
Typical applications
Reciprocating air compressors, air receivers and storage tanks, and pneumatic systems where reliable one-way flow and backflow prevention are required.
Select your port configuration from the size options above. The Conrader CAC-Series compression-inlet in-tank check valve combines an all-brass body, reinforced PTFE seal, and stainless steel spring for dependable, serviceable backflow protection rated to 500 psi.

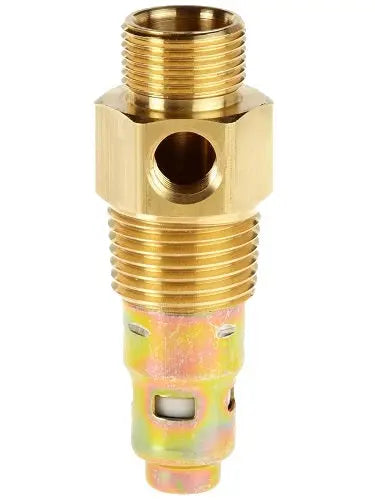

NOTE: Actual product may be different from pictured!
