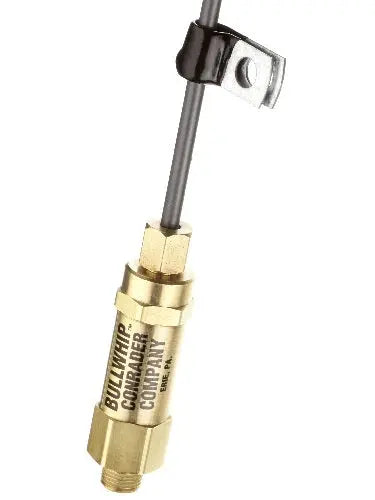

Conrader Cable-Style Throttle Control – Eyelet End, 0.65" Stroke (Engines 8 HP & Below)
The Conrader TCP is a cable-style throttle control (auto-idle / unloader cable, also called a "bullwhip") for gas-engine-driven air compressors running engines of 8 HP and below. It mounts on the pilot valve or elsewhere on the compressor, and the eyelet cable end connects to the engine throttle arm. When the tank reaches cut-out pressure, pilot air actuates the control to idle the engine; when pressure drops, the engine returns to full throttle — saving fuel and reducing wear during cycling.
Built for the field: brass body with Viton seals, a stainless steel spring, and a permanently lubricated, self-cleaning stainless steel cable. Choose the overall cable length to suit your routing; all lengths share the same 0.65" stroke and 1/8" Male NPT inlet.
Key Specifications
- Style: Cable style, eyelet end
- For engines: 8 HP and below
- Stroke length: 0.65 in
- Retracted spring force: 6.7 lbf
- Minimum actuation pressure: 80 psi
- Maximum operating pressure: 500 psi
- Operating temperature: -15°F to 400°F
- Inlet connection: 1/8" Male NPT (-2)
- Available lengths (OAL): 12", 18", 24", 36", 48", 60"
- Materials: Brass body, Viton seals, stainless steel spring & cable
Applications
Gas-engine air compressors and other engine-driven equipment requiring automatic throttle (idle) control tied to system pressure. Ideal as a direct replacement for worn throttle control cables on portable and truck-mounted compressor units.
Genuine Conrader TCP cable-style throttle control with eyelet termination — durable brass-and-stainless construction for reliable auto-idle performance on engines up to 8 HP, available in six cable lengths to fit your installation.
NOTE: Actual product may be different from pictured!
