Conrader BLG Piloted Unloader Valve — 60 SCFM, 1/2" FNPT, 1/4" Pilot Inlet
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
BLGPSI
|

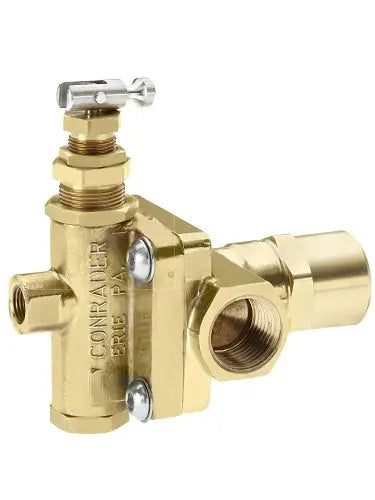

The Conrader BLG-Series piloted unloader valve controls a compressor by venting excess air to atmosphere once system pressure reaches the unload (cut-out) setting. The integral pilot stays closed until pressure builds to the set point, then opens and pressurizes the unloader, which vents the line; as pressure falls to the load (cut-in) setting the pilot closes and the system repressurizes. Rated to 60 SCFM with a 1/2" FNPT unloader and a factory-adjustable 20–250 psi range, the BLG is built for gas-engine-driven air compressors and other compressed-air systems.
This listing offers the BLG in two control configurations. Choose the Hand Unloading version for a manual unloader lever, or the Dual Control Lockout version for electric-motor compressors that need to switch between continuous-run and start/stop operation.
Key Specifications
- Max flow rating: 60 SCFM
- Operating pressure: 20–250 psi (factory-set unload/load points)
- Operating temperature: -15°F to 400°F
- Pilot inlet: 1/4" (-4) Female NPT
- Pilot outlet: 1/8" (-2) Female NPT
- Unloader inlet: 1/2" (-8) Female NPT
- Unloader outlet: 1/2" (-8) Female NPT
- Application type: Gas-engine and electric-motor air compressors
Applications
Combined pilot-and-unloader control for gas-engine and electric-motor air compressors, automatically loading and unloading the pump to hold system pressure within range and reduce wear during idle periods.
The Conrader BLG piloted unloader valve is a rugged, field-proven compressor control trusted on gas-engine and electric-motor air compressor systems. With a wide 20–250 psi range, 60 SCFM capacity, and a -15°F to 400°F operating window, it delivers reliable automatic load/unload control and is available with either a hand-unloader lever or a dual-control lockout for start/stop operation.
NOTE: Actual product may be different from pictured!
