Conrader Airline-Style Throttle Control — Gas Engine Air Compressors (Honda, Kohler, Kubota, Subaru/Robin)

The Conrader airline-style throttle control is an automatic idle (auto-idle) control for gas-engine-driven air compressors running in continuous-run operation. Working with a pilot valve and unloader valve, it slows the engine to idle when the tank reaches cut-out pressure and returns it to full speed on cut-in — saving fuel and extending the life of both the engine and the compressor pump.

How it works

An airline tube connects the pilot valve to the throttle control mounted on the engine. When the compressor reaches unload (cut-out) pressure, the pilot valve sends a pneumatic signal to the throttle control, which extends and pulls the engine throttle to idle. As air is used and pressure drops to the load (cut-in) point, the signal is released and the control retracts, returning the engine to running speed.

Construction

• Brass body with Viton seals
• Stainless steel spring and wire rod
• Plated-steel mounting bracket
• 1/4" (-4) compression-tube air inlet
• Max operating pressure 500 psi; minimum actuation pressure 80 psi
• Operating temperature range −15°F to 400°F

Series & engine fitment

Select the model matched to your engine from the dropdown above:

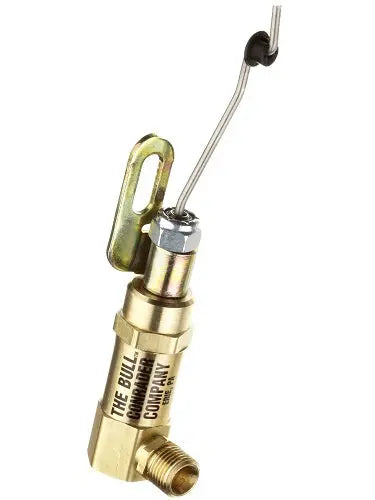

• TCSA — standard series, 0.40" stroke, 10 lbf retracted spring force; for smaller engines.

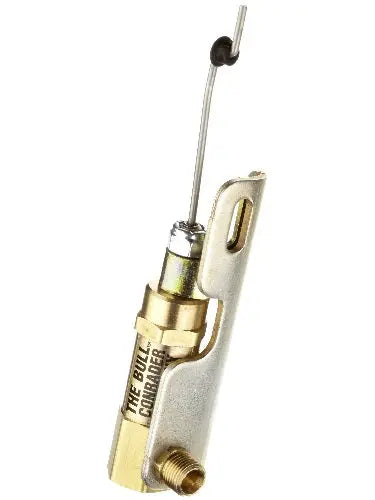

• TCMA — 0.63" stroke, 8.8 lbf spring force; for mid-size engines.
• TCXL — extra-heavy-duty series for larger Kohler engines.

Fitments cover Honda (4–13 HP, including GX390), Kohler (9.1–18 HP), Kubota (8–11 HP), and Subaru/Robin (4.5–14 HP) gas engines.

Genuine Conrader compressor controls, made in Erie, PA. The airline-style throttle control is the proven auto-idle solution for gas-engine air compressors — choose your engine and horsepower above to order the correct control for your unit.
