Conex Straight Male Connector to Compression By Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
RPD MR3823
|
| Dimensions | |
 Weight |
0.01 lb
|

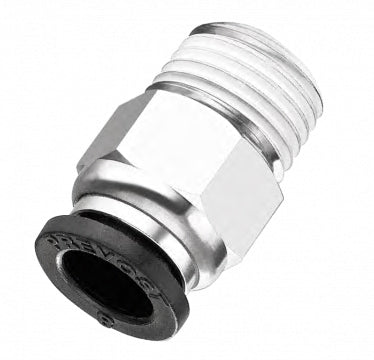

Prevost RPD MR Conex Straight Male Connector, NPT to Compression
The Conex straight male connector joins a male NPT threaded port to semi-rigid or flexible tubing through a push-to-connect compression end. Push the tube in for an instant seal, pull the collar to release it. No tools, no ferrules, no fussing with compression nuts.
Connectors like this are how you get from a threaded outlet to a tube run: a drop off a main line, a feed into a machine, a regulator, a cylinder, or a work station. Because the tube side releases cleanly, a layout can be changed later without cutting anything up.
Teflon-Coated Threads
The NPT threads come Teflon-coated from the factory, so the joint seals without tape or paste on assembly. That saves a step and keeps stray tape shreds out of the air line, which is worth more than it sounds on small-bore pneumatic work.
Key Features
- Genuine Prevost Conex push-to-connect fitting
- Male NPT thread from 1/8" through 1/2"
- Compression end for tube OD from 1/8" through 1/2"
- Teflon-coated threads, no sealant needed
- Tool-free connection and release
- Reusable, so tube runs can be reconfigured
- Sold individually
Choosing the Right One
Two dimensions matter: the male NPT size of the port you are threading into, and the outside diameter of the tube you are connecting. Both are listed for every part number below. Note that these are NPT threads, not BSPT or BSPP, and the tube sizes are fractional inch rather than metric.
Best Uses
- Running tube drops off a threaded outlet
- Machine, cylinder, and actuator air supply
- Regulator and filter connections
- Work station and assembly bench plumbing
- Control and instrumentation air lines
- Any layout likely to be reconfigured later
Installation Notes
Cut tube square and deburr the end before inserting, since an angled or burred cut is the usual cause of a leak at a push-to-connect joint. Push the tube fully home until it seats. Do not over-tighten the NPT side. See the full range of Conex connectors and other push-to-connect fittings for more configurations.
| SKU | Male NPT Thread | For Tube OD |
|---|---|---|
| RPD MR1820 | 1/8" | 1/8" |
| RPD MR5320 | 1/8" | 5/32" |
| RPD MR3120 | 1/8" | 3/16" |
| RPD MR4120 | 1/8" | 1/4" |
| RPD MR5120 | 1/8" | 5/16" |
| RPD MR3820 | 1/8" | 3/8" |
| RPD MR5321 | 1/4" | 5/32" |
| RPD MR3121 | 1/4" | 3/16" |
| RPD MR4121 | 1/4" | 1/4" |
| RPD MR5121 | 1/4" | 5/16" |
| RPD MR3821 | 1/4" | 3/8" |
| RPD MR2121 | 1/4" | 1/2" |
| RPD MR3122 | 3/8" | 3/16" |
| RPD MR4122 | 3/8" | 1/4" |
| RPD MR5122 | 3/8" | 5/16" |
| RPD MR3822 | 3/8" | 3/8" |
| RPD MR2122 | 3/8" | 1/2" |
| RPD MR3823 | 1/2" | 3/8" |
| RPD MR2123 | 1/2" | 1/2" |
NOTE: Actual product may be different from pictured!
