Conex Flow Regulator with Knob by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
RPM BR2123
|

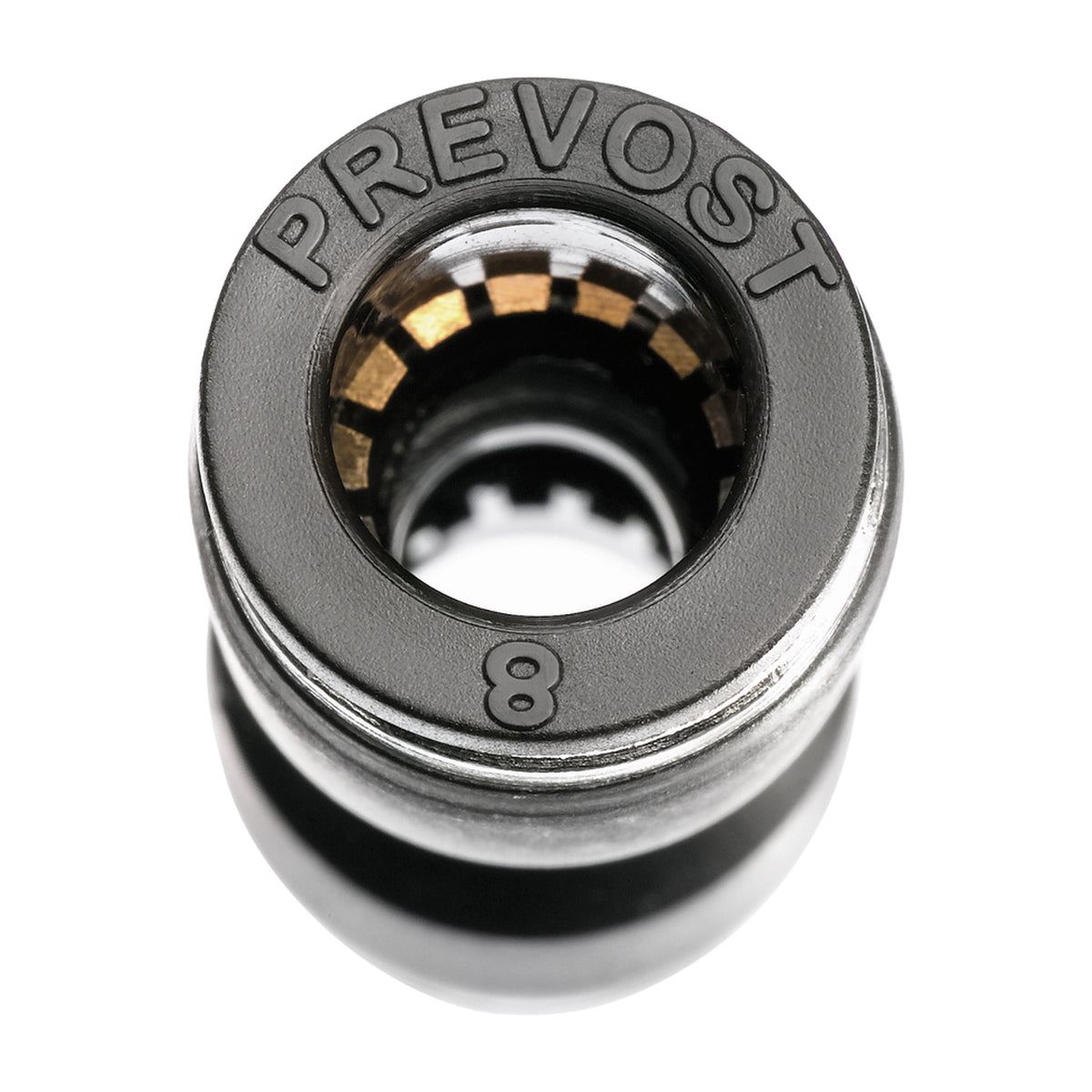

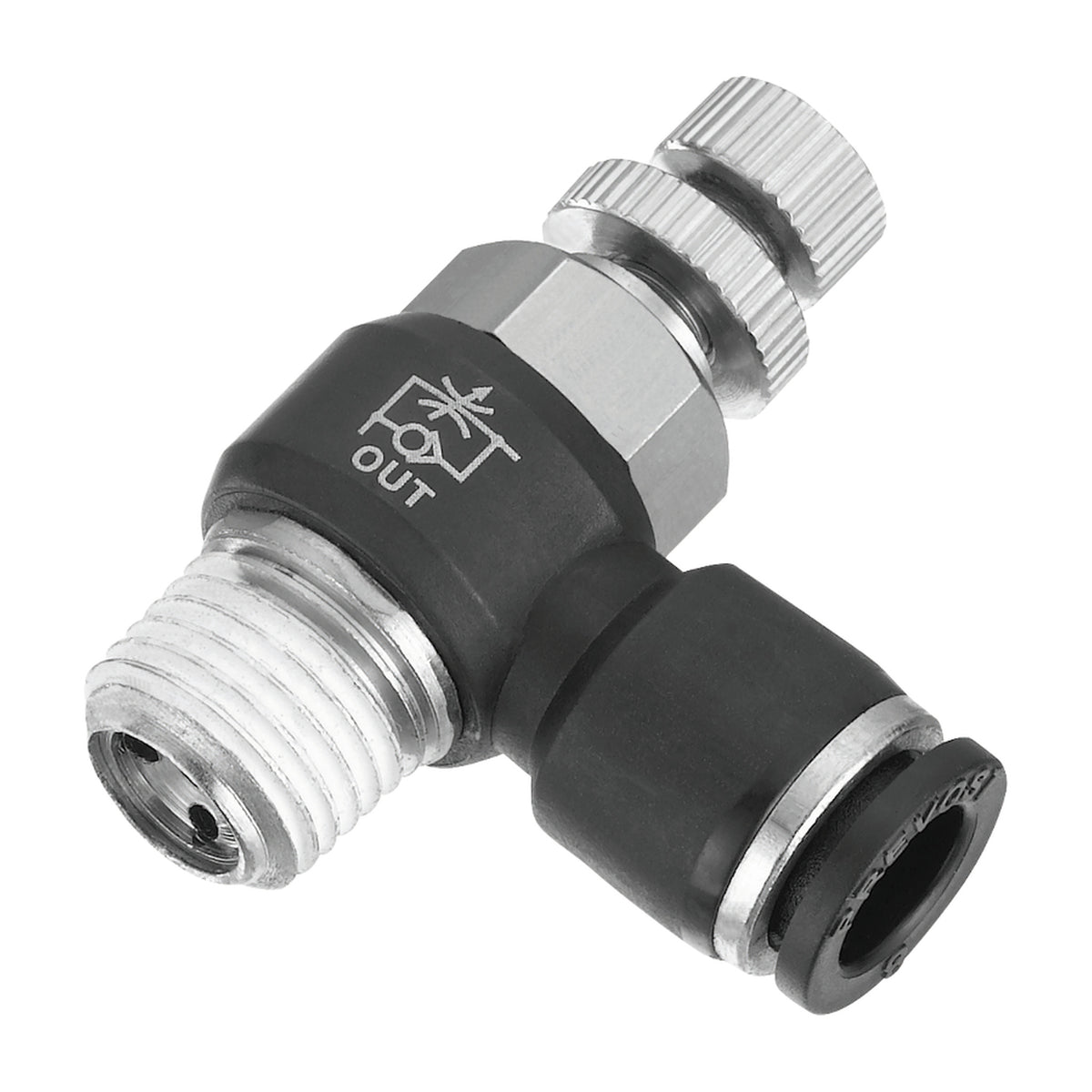

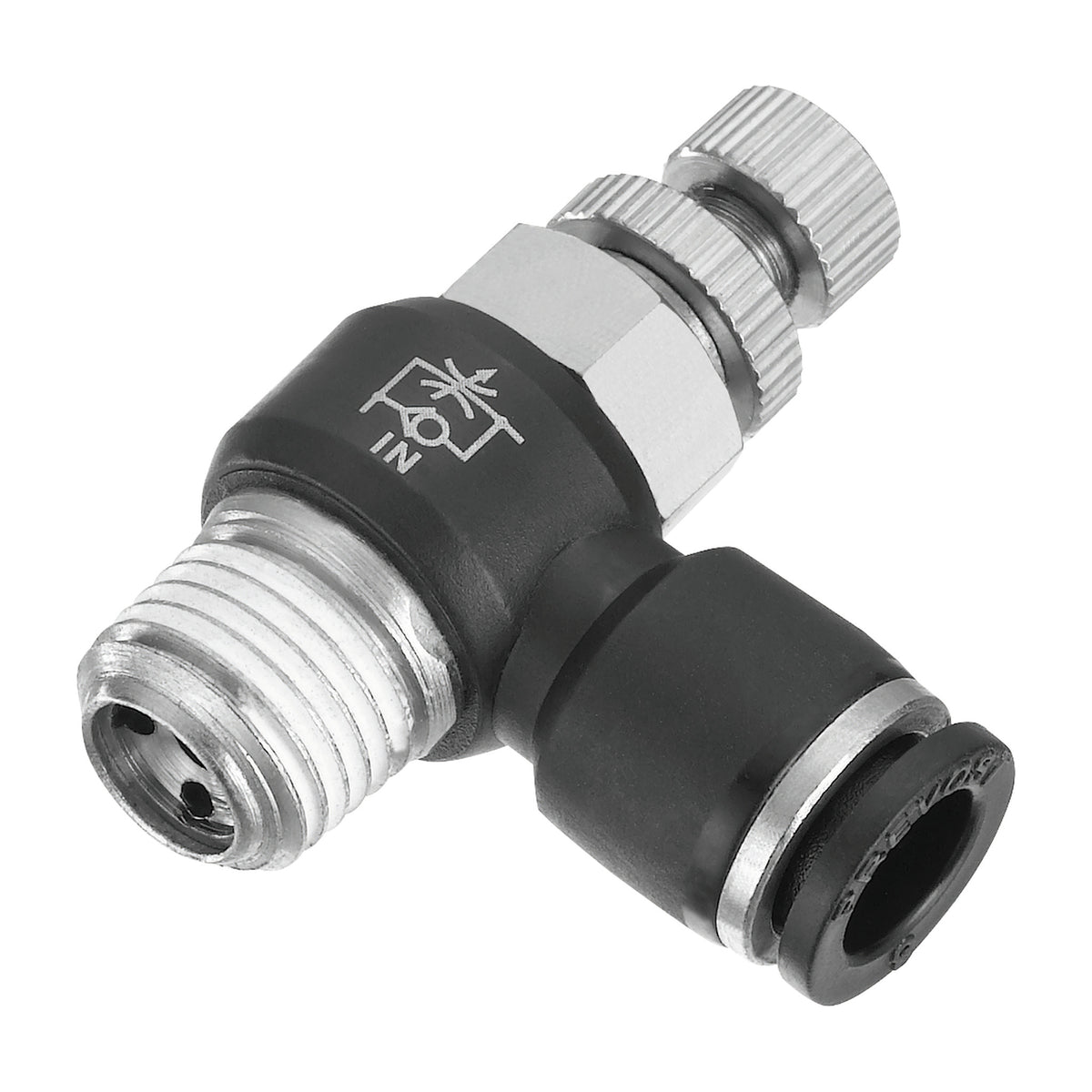

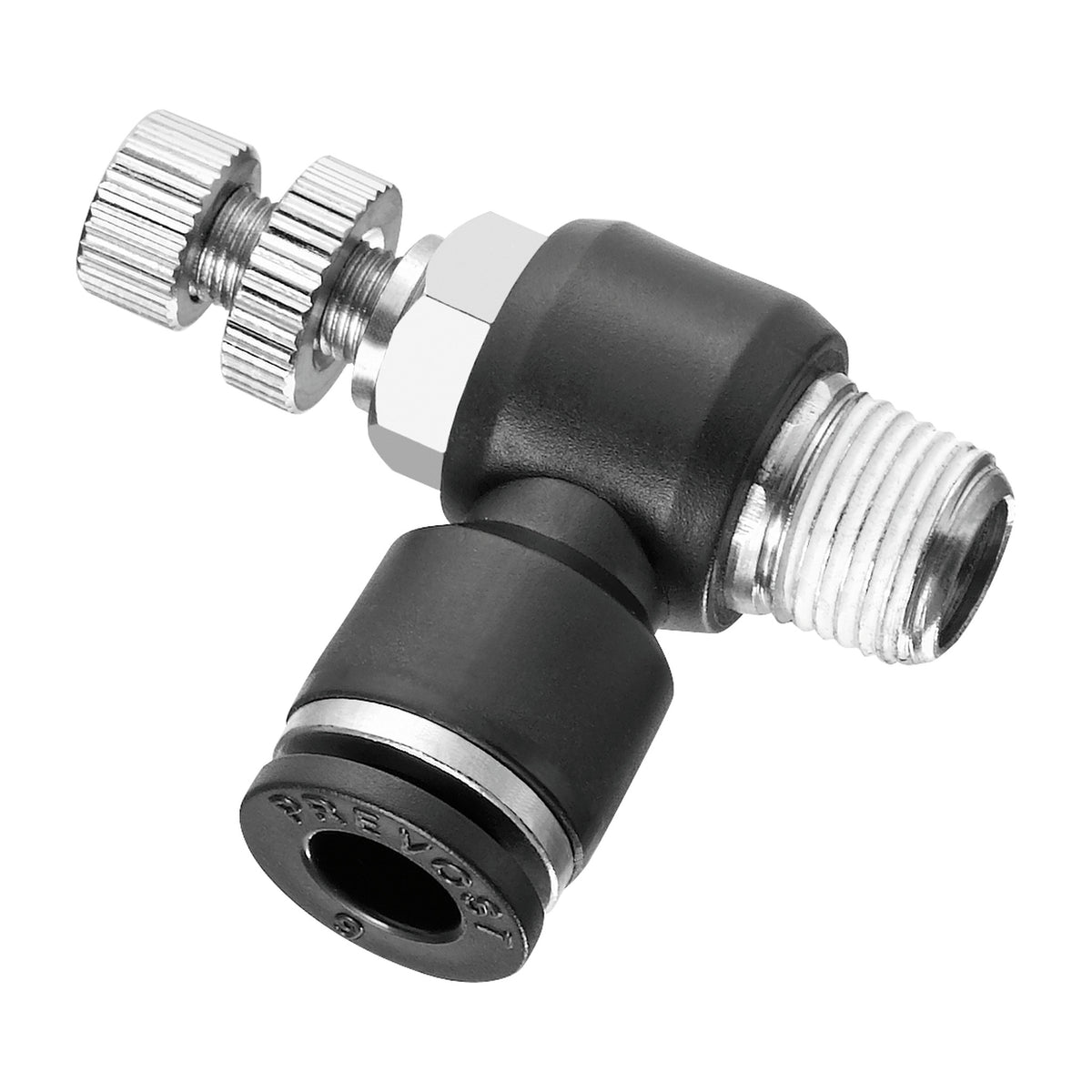

Male-thread push-in flow regulator with an adjusting knob, available as control-in (meter-in), control-out (meter-out) or bi-directional. Prevost Conex push-in fittings connect polyurethane and polyamide tube without tools: push the tube in to seal, press the collar to release. Rated to 232 psi, nickel-plated brass body, suitable for compressed air and vacuum.
Find matching tube and the rest of the range in our air pipe and fittings collection.
Available Variants & SKUs
All variants and part numbers for this product are listed below for easy reference and ordering.
| SKU | Description |
|---|---|
| RPM BR2123 | Bi-directional / 1/2" NPT / 1/2" |
| RPM IR2123 | Control In / 1/2" NPT / 1/2" |
| RPM OR2123 | Control Out / 1/2" NPT / 1/2" |
| RPM BR3823 | Bi-directional / 1/2" NPT / 3/8" |
| RPM IR3823 | Control In / 1/2" NPT / 3/8" |
| RPM OR3823 | Control Out / 1/2" NPT / 3/8" |
| RPM BR5123 | Bi-directional / 1/2" NPT / 5/16" |
| RPM IR5123 | Control In / 1/2" NPT / 5/16" |
| RPM OR5123 | Control Out / 1/2" NPT / 5/16" |
| RPM BR4121 | Bi-directional / 1/4" NPT / 1/4" |
| RPM IR4121 | Control In / 1/4" NPT / 1/4" |
| RPM OR4121 | Control Out / 1/4" NPT / 1/4" |
| RPM BR3121 | Bi-directional / 1/4" NPT / 3/16" |
| RPM IR3121 | Control In / 1/4" NPT / 3/16" |
| RPM OR3121 | Control Out / 1/4" NPT / 3/16" |
| RPM BR3821 | Bi-directional / 1/4" NPT / 3/8" |
| RPM IR3821 | Control In / 1/4" NPT / 3/8" |
| RPM OR3821 | Control Out / 1/4" NPT / 3/8" |
| RPM BR5121 | Bi-directional / 1/4" NPT / 5/16" |
| RPM IR5121 | Control In / 1/4" NPT / 5/16" |
| RPM OR5121 | Control Out / 1/4" NPT / 5/16" |
| RPM BR4120 | Bi-directional / 1/8" NPT / 1/4" |
| RPM IR4120 | Control In / 1/8" NPT / 1/4" |
| RPM OR4120 | Control Out / 1/8" NPT / 1/4" |
| RPM BR1820 | Bi-directional / 1/8" NPT / 1/8" |
| RPM IR1820 | Control In / 1/8" NPT / 1/8" |
| RPM OR1820 | Control Out / 1/8" NPT / 1/8" |
| RPM BR3120 | Bi-directional / 1/8" NPT / 3/16" |
| RPM IR3120 | Control In / 1/8" NPT / 3/16" |
| RPM OR3120 | Control Out / 1/8" NPT / 3/16" |
| RPM BR5120 | Bi-directional / 1/8" NPT / 5/16" |
| RPM IR5120 | Control In / 1/8" NPT / 5/16" |
| RPM OR5120 | Control Out / 1/8" NPT / 5/16" |
| RPM BR5320 | Bi-directional / 1/8" NPT / 5/32" |
| RPM IR5320 | Control In / 1/8" NPT / 5/32" |
| RPM OR5320 | Control Out / 1/8" NPT / 5/32" |
| RPM BG4126 | Bi-directional / 10-32 UNF / 1/4" |
| RPM IG4126 | Control In / 10-32 UNF / 1/4" |
| RPM OG4126 | Control Out / 10-32 UNF / 1/4" |
| RPM BG1826 | Bi-directional / 10-32 UNF / 1/8" |
| RPM IG1826 | Control In / 10-32 UNF / 1/8" |
| RPM OG1826 | Control Out / 10-32 UNF / 1/8" |
| RPM BG3126 | Bi-directional / 10-32 UNF / 3/16" |
| RPM IG3126 | Control In / 10-32 UNF / 3/16" |
| RPM OG3126 | Control Out / 10-32 UNF / 3/16" |
| RPM BG5326 | Bi-directional / 10-32 UNF / 5/32" |
| RPM IG5326 | Control In / 10-32 UNF / 5/32" |
| RPM OG5326 | Control Out / 10-32 UNF / 5/32" |
| RPM BR2122 | Bi-directional / 3/8" NPT / 1/2" |
| RPM IR2122 | Control In / 3/8" NPT / 1/2" |
| RPM OR2122 | Control Out / 3/8" NPT / 1/2" |
| RPM BR4122 | Bi-directional / 3/8" NPT / 1/4" |
| RPM IR4122 | Control In / 3/8" NPT / 1/4" |
| RPM OR4122 | Control Out / 3/8" NPT / 1/4" |
| RPM BR3122 | Bi-directional / 3/8" NPT / 3/16" |
| RPM IR3122 | Control In / 3/8" NPT / 3/16" |
| RPM OR3122 | Control Out / 3/8" NPT / 3/16" |
| RPM BR3822 | Bi-directional / 3/8" NPT / 3/8" |
| RPM IR3822 | Control In / 3/8" NPT / 3/8" |
| RPM OR3822 | Control Out / 3/8" NPT / 3/8" |
| RPM BR5122 | Bi-directional / 3/8" NPT / 5/16" |
| RPM IR5122 | Control In / 3/8" NPT / 5/16" |
| RPM OR5122 | Control Out / 3/8" NPT / 5/16" |
NOTE: Actual product may be different from pictured!
