Chicago Pneumatic COAIRE CSOF-D All-In-One Oil-Less Scroll Air Compressor | 3-5 HP
| Specifications (As Configured) | |
|---|---|
 Vendor |
Chicago Pneumatic
|
 SKU |
CSOF-D3PL-208230-3
|
| Dimensions | |
 Weight |
462.0 lb
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|

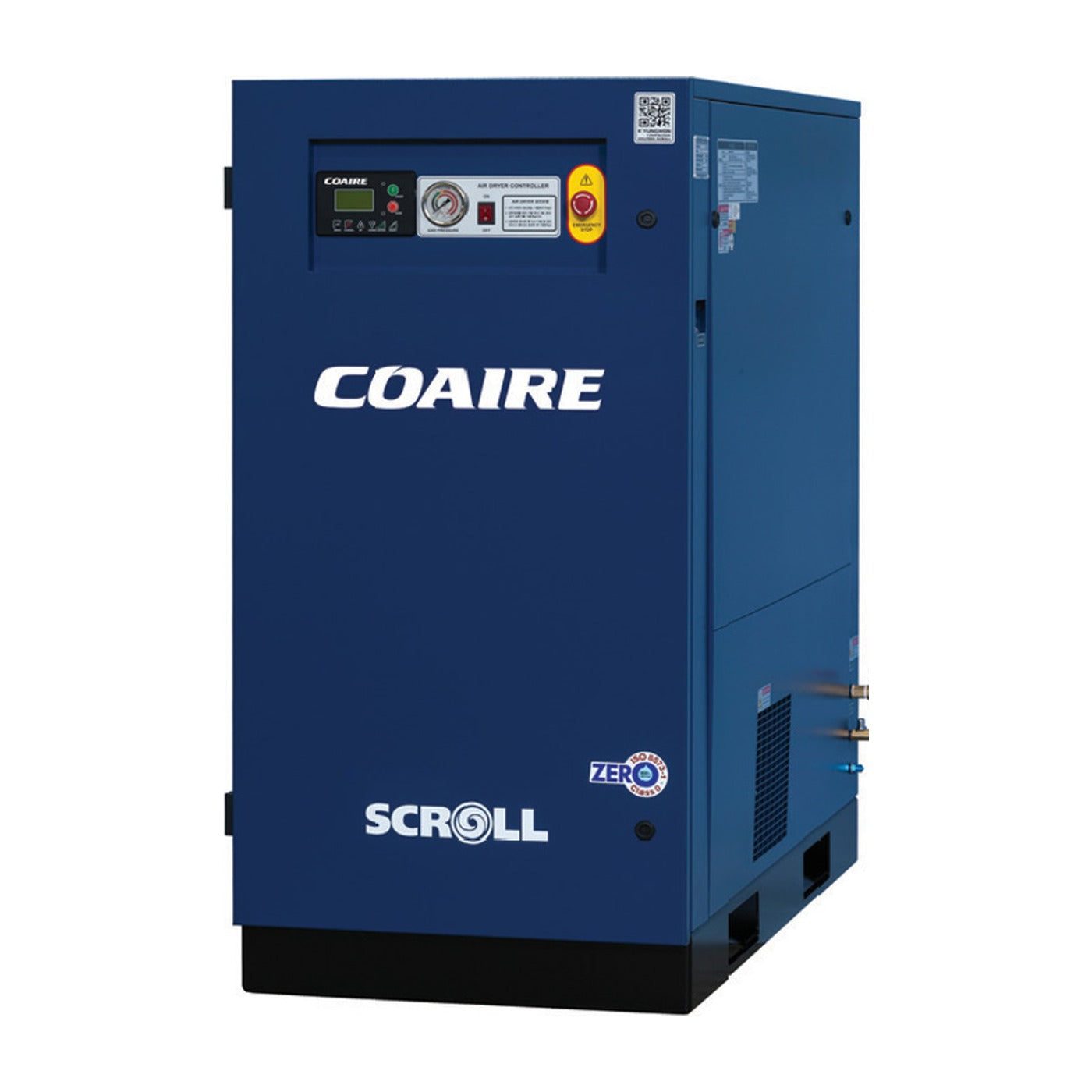

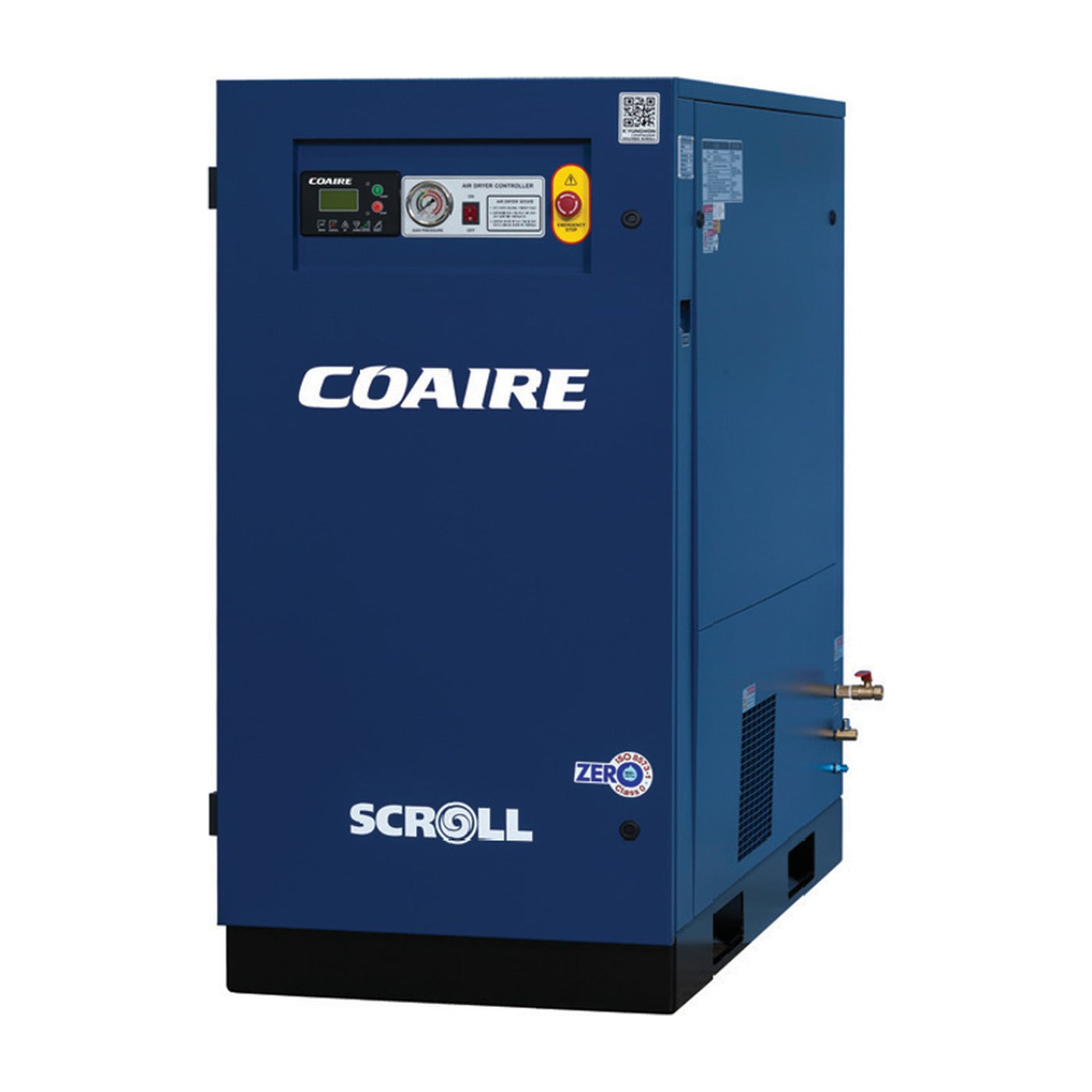

The Chicago Pneumatic COAIRE CSOF-D is a complete clean-air station in one cabinet. Oil-less scroll compressor, refrigerated air dryer, 5 micron filtration and a stainless steel air receiver are all integrated and pre-plumbed, so you set it down, connect power and air, and you are running. Nothing to size, nothing to pipe together, and no oil anywhere in the compression chamber.
Why the CSOF-D
- Everything in one box. Compressor, dryer, filter and receiver tank integrated, delivering a 50°F pressure dew point straight out of the cabinet. Contact us if your process needs a lower dew point.
- Stainless steel receiver. The built-in 10 gallon tank is stainless, so the clean dry air the scroll produces stays clean on its way to your process. No rust, no scale.
- Truly oil-free. Oil-less scroll compression rated ISO 8573-1 Class 0 for oil content, with a suction filter system that eliminates up to 99.9% of airborne dust. No separator element, no oil changes, no oily condensate.
- 49 to 50 dBA. Quiet enough to sit beside the equipment it feeds, in a lab, dental suite or clean production area.
- No extra aftercooler needed. The corrugated high-performance aftercooler and large-capacity cooling fan produce optimally controlled air without additional cooling equipment.
- Multifunction controller with programmable timer, automatic and manual pause, alarm and shutdown on pressure and on high or low temperature, hour meter with maintenance cycle tracking, sensor self-diagnostics, discharge air temperature tracking and a multilingual interface.
- Stable cooling to 120°F ambient from the heavy-duty Scirocco cooling fan.
Performance Data
| Model | HP | ACFM @ 115 PSI | ACFM @ 140 PSI | Sound (dBA) | Dew Point | Tank | Filtration | Dimensions L x W x H (in) | Air Outlet | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| CSOF-D3 | 3 | 8.5 | 7.2 | 49 | 50°F | 10 gal stainless | 5 micron | 28 x 30 x 59 | 1/2" | 462 |
| CSOF-D5 | 5 | 14.1 | 12.0 | 50 | 50°F | 10 gal stainless | 5 micron | 28 x 30 x 59 | 1/2" | 485 |
Applications
Dental and medical equipment, medical-grade gas supply, laboratory and analytical instruments, food processing, packaging, pharmaceutical and chemical manufacturing, high-precision paint and printing, and semiconductor equipment.
Available Variants & SKUs
All variants and part numbers for this product are listed below for easy reference and ordering.
| SKU | Model | HP | Voltage | Phase | Max Pressure |
|---|---|---|---|
| CSOF-D3PL-208230-3 | CSOF-D3 | 3 HP | 208-230 V | 3 Phase | 115 PSI |
| CSOF-D3PH-208230-3 | CSOF-D3 | 3 HP | 208-230 V | 3 Phase | 140 PSI |
| CSOF-D3PL-460-3 | CSOF-D3 | 3 HP | 460 V | 3 Phase | 115 PSI |
| CSOF-D3PH-460-3 | CSOF-D3 | 3 HP | 460 V | 3 Phase | 140 PSI |
| CSOF-D3PL-208230-1 | CSOF-D3 | 3 HP | 208-230 V | 1 Phase | 115 PSI |
| CSOF-D3PH-208230-1 | CSOF-D3 | 3 HP | 208-230 V | 1 Phase | 140 PSI |
| CSOF-D5PL-208230-3 | CSOF-D5 | 5 HP | 208-230 V | 3 Phase | 115 PSI |
| CSOF-D5PH-208230-3 | CSOF-D5 | 5 HP | 208-230 V | 3 Phase | 140 PSI |
| CSOF-D5PL-460-3 | CSOF-D5 | 5 HP | 460 V | 3 Phase | 115 PSI |
| CSOF-D5PH-460-3 | CSOF-D5 | 5 HP | 460 V | 3 Phase | 140 PSI |
| CSOF-D5PL-208230-1 | CSOF-D5 | 5 HP | 208-230 V | 1 Phase | 115 PSI |
| CSOF-D5PH-208230-1 | CSOF-D5 | 5 HP | 208-230 V | 1 Phase | 140 PSI |
Backed by the Chicago Pneumatic network of trained service technicians for warranty support, spare parts and technical consultation. As a CAGI member, CP publishes all technical data in accordance with CAGI/PNEUROP PN2CPTC2 guidelines.
NOTE: Actual product may be different from pictured!
