Chicago Pneumatic CleanAIR CNR Oil-Free Two-Stage Piston Air Compressor, 7.5-10 HP, 24-35.2 CFM, 145 PSI | CNR 75 / CNR 100
100% oil-free air, certified ISO 8573-1 Class 0. The Chicago Pneumatic CleanAIR CNR is a two-stage reciprocating piston compressor for shops that cannot put a trace of oil into the air line. There is no oil in the compression chamber at all, so there is nothing to filter out downstream, no oily condensate to separate and dispose of, and no oil changes for the life of the pump.

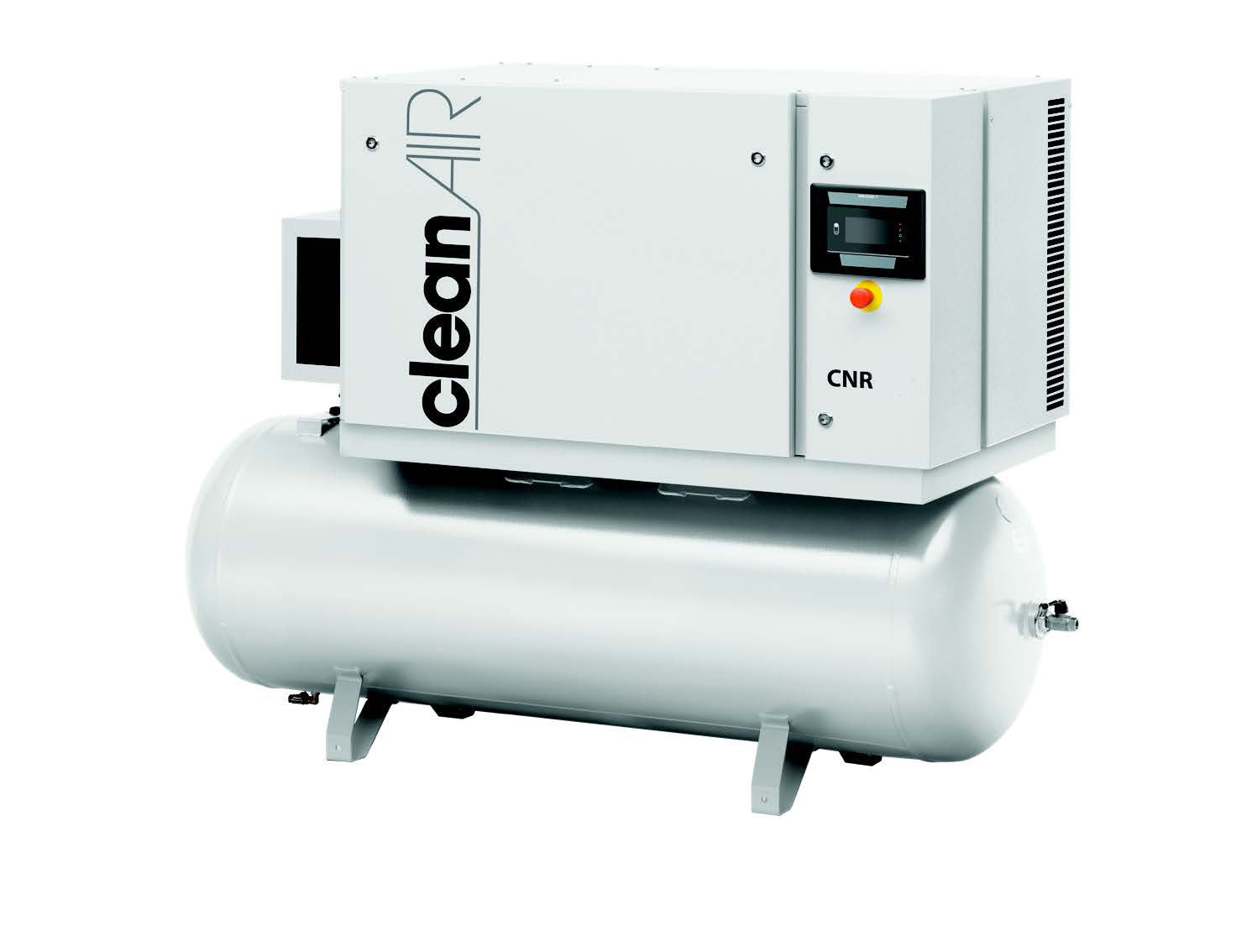

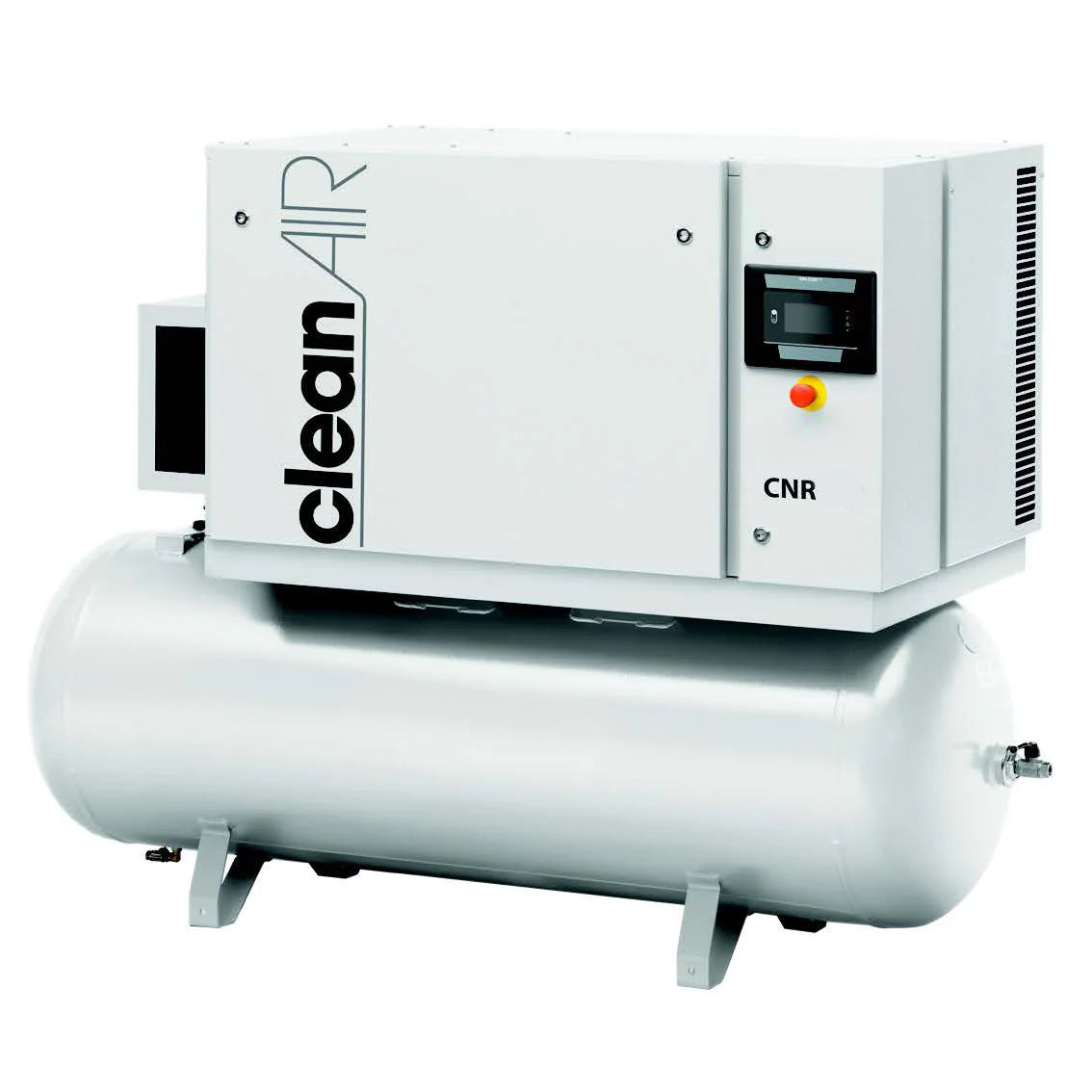

Two models cover 7.5 to 10 HP. Each one is available base mounted or on a horizontal ASME receiver, in 230V or 460V three phase.
Why buyers pick the CNR
- Class 0 oil-free air. TÜV-certified to ISO 8573-1 Class 0, the strictest oil content class there is. Nothing downstream has to clean up after the compressor.
- 100% duty cycle. A high-performance internal cooling fan lets the CNR run continuously instead of cycling off to cool down.
- 16,000 hour design life with no oil changes. Sealed-for-life crankshaft ball bearings and patented stainless steel inlet, outlet and disk valves.
- Direct drive. The transmission is flanged straight to the pump. No belts to tension or replace, and no transmission losses.
- Quiet enough to sit in the work area. 67 dB(A) on the CNR 75 and 69 dB(A) on the CNR 100, inside a sound-attenuating canopy on an anti-vibration motor pad.
- Airlogic2T touchscreen control. 4.3 inch color display, 30+ languages, warning and shutdown alarms, service scheduling and live running data.
- Aluminum pump with V-shaped pistons that runs cool enough to limit condensate and cancels its own vibration.
Where it gets used
Food and beverage, pharmaceutical and medical, dental, laboratory and instrument air, electronics assembly, chemicals and plastics, textiles, and any job where an oil-free spec is written into the print. The CNR also makes a clean front end for a nitrogen generator, with no carbon filtration or condensate management needed ahead of it.
Specifications
| Specification | CNR 75 | CNR 100 |
|---|---|---|
| Motor | 7.5 HP (5.5 kW) | 10 HP (7.5 kW) |
| Delivery | 24 CFM | 35.2 CFM |
| Max working pressure | 145 PSI | 145 PSI |
| Compression | Two-stage, oil-free reciprocating | Two-stage, oil-free reciprocating |
| Drive | Direct drive | Direct drive |
| Duty cycle | 100% | 100% |
| Noise level | 67 dB(A) | 69 dB(A) |
| Air quality | ISO 8573-1 Class 0 | ISO 8573-1 Class 0 |
| Electrical | 230V or 460V / 3 phase / 60 Hz | 230V or 460V / 3 phase / 60 Hz |
| Receiver | 60 gallon horizontal ASME, or base mounted | 120 gallon horizontal ASME, or base mounted |
| Dimensions, base mounted (L x W x H) | 57" x 32" x 34" | 57" x 32" x 34" |
| Dimensions, tank mounted (L x W x H) | 69" x 32" x 52" | 78" x 32" x 57" |
| Controller | Airlogic2T touchscreen | Airlogic2T touchscreen |
Standard equipment
- Oil-free ISO 8573-1 Class 0 two-stage pump
- TEFC drive motor, IP55, 4 pole, insulation class F
- Sound-attenuating canopy with internal cooling fan
- Wye-delta (Y/D) starter
- Pressure transducer and temperature sensor
- Airlogic2T touchscreen controller
- ASME epoxy-coated air receiver on tank-mounted models
Models and part numbers
| Model | HP | CFM | Configuration | Voltage | Part Number |
|---|---|---|---|---|---|
| CNR 75 | 7.5 | 24 | Base mounted, no tank | 230V / 3 phase | 8115462569 |
| CNR 75 | 7.5 | 24 | Base mounted, no tank | 460V / 3 phase | 8115462585 |
| CNR 75 | 7.5 | 24 | 60 gallon horizontal tank | 230V / 3 phase | 8115462577 |
| CNR 75 | 7.5 | 24 | 60 gallon horizontal tank | 460V / 3 phase | 8115462593 |
| CNR 100 | 10 | 35.2 | Base mounted, no tank | 230V / 3 phase | 8115475629 |
| CNR 100 | 10 | 35.2 | Base mounted, no tank | 460V / 3 phase | 8115475587 |
| CNR 100 | 10 | 35.2 | 120 gallon horizontal tank | 230V / 3 phase | 8115475637 |
| CNR 100 | 10 | 35.2 | 120 gallon horizontal tank | 460V / 3 phase | 8115475595 |
Picking the right one
- Size on CFM, not horsepower. The CNR 75 delivers 24 CFM and the CNR 100 delivers 35.2 CFM, both at 145 PSI. Total up everything that can run at once and leave headroom.

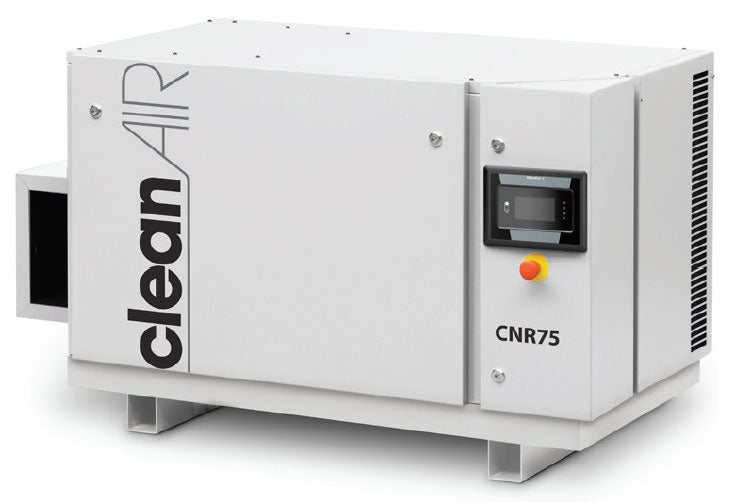

- Base mounted or tank mounted. Base mounted suits a plant that already has a receiver or is tying into an existing dry air system. Tank mounted is the standalone install.
- Voltage. Both models are three phase only. There is no single phase CNR. Match 230V or 460V to the service at the panel.
